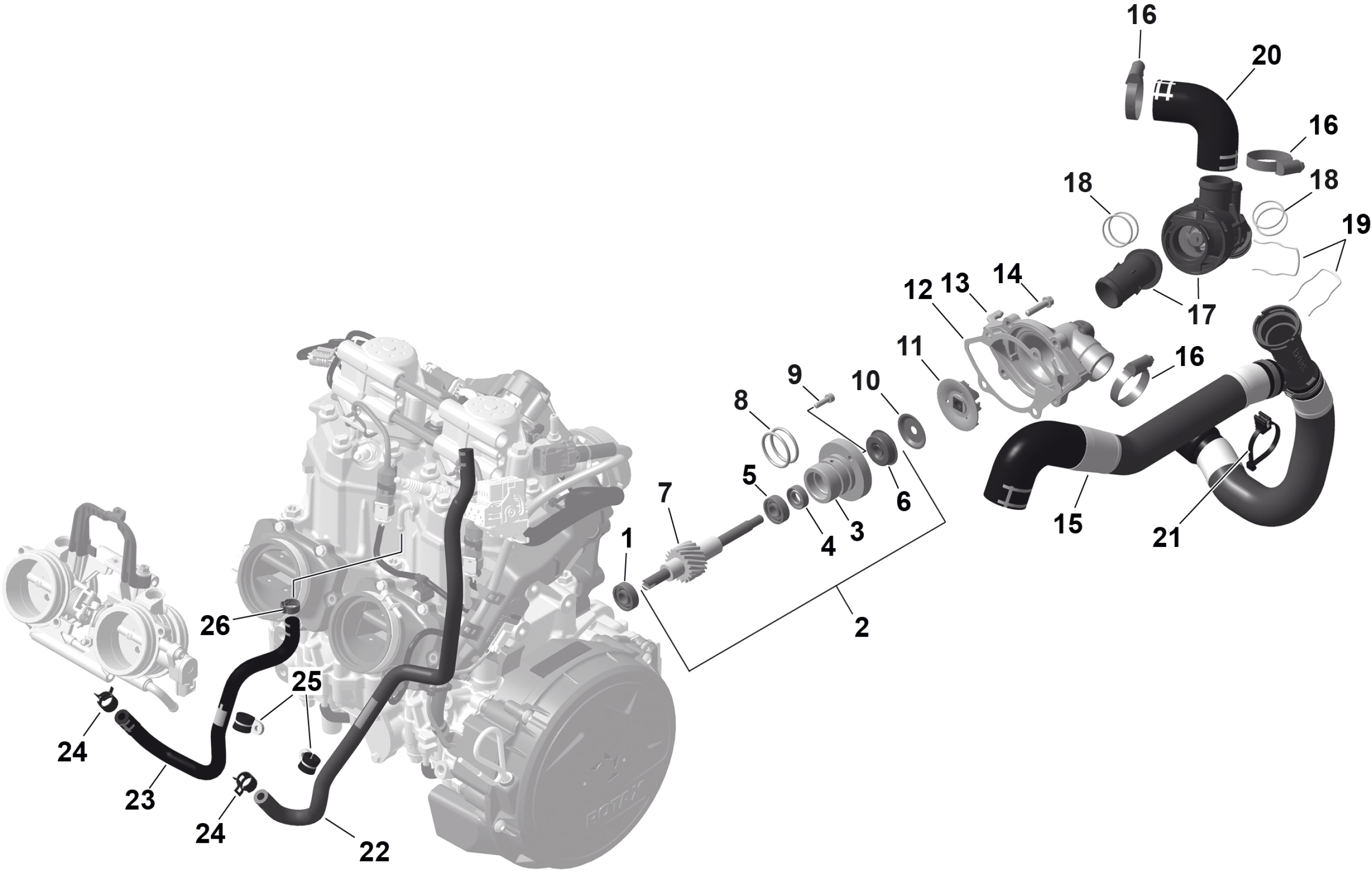

Ski-Doo BACKCOUNTRY - 600R E -TEC - Adrenaline - UJSA - Deep Black - 146X15X1.6C Track - 2025 ROTAX - Engine Cooling Diagram

#

Description

Price

1

Ball Bearing

420232100

Unavailable

2

Water Pump Shaft Ass'y | Except SHOT This part replaces 420891479.

420891483

Unavailable

3

Step Collar

420847933

Unavailable

4

Oil Seal

420230198

Unavailable

5

Ball Bearing

420232100

Unavailable

6

Rotary Seal

420650371

Unavailable

7

Water Pump Shaft

420837681

Unavailable

8

O-Ring

420950890

Unavailable

9

Allen Screw M5 x 16

420840514

Unavailable

10

Cover Washer

420944035

Unavailable

11

Impeller

420222507

Unavailable

12

Gasket | Included in gasket kit

420931813

Unavailable

13

Water Pump Housing

420933633

Unavailable

14

Torx Flange Screw M6 X 25

420440234

Unavailable

15

Molded Hose This part replaces 420822803.

420822805

Unavailable

16

Clamp 26-38MM

420951120

Unavailable

17

Thermostat Housing | Includes 17 to 18

420822836

Unavailable

18

O-Ring

420430062

Unavailable

19

Spring Clip

420939344

Unavailable

20

Return Hose

420822820

Unavailable

21

Tie Rap 200 X 4.6

420951652

Unavailable

22

Formed Hose

420201519

Unavailable

23

Molded Hose

420201512

Unavailable

24

Clamp

420853511

Unavailable

25

Clamp

420851250

Unavailable

26

Clamp

420851458

Unavailable
