Description

Price

10a

Rail Suspension 146 | Includes 10a to 10a1

503197248

$286.12

10a1

Rail Suspension 146

503197249

$230.74

10b

Black, Slider 146

503191499

$33.05

10c

Phillips Screw M6 X 25

208562531

$1.74

10d

Elastic Stop Nut M6

232561434

$1.55

10f

Rail Protector

503196872

$23.82

10g

Washer

250200140

$0.83

10h

Hex. Flange Screw M5 X 25

207652544

$0.42

10j

Flange Elastic Nut M5

233251434

$1.66

10k

Rubber Stopper

503190576

$10.23

10m

Washer

503191273

$1.06

10n

Rivet Ornit 4.8 X 27.5

293150256

$1.94

310

Rubber Stopper

503196519

$5.25

315

Washer

503191273

$1.06

316

Rivet Ornit 4.8 X 27.5

293150256

$1.94

450

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

450a

Ball Bearing | Package-STD

503190396

$7.12

450b

Retaining Ring

415129371

$8.92

451

Casted Support

503193894

$12.75

452

Labyrinth Seal

503190434

$5.85

453

Wheel Cup M6

503191820

$4.66

454

Hex. Flange Screw M6 X 70

250000944

$3.61

455

Hex. Flange Elastic Nut M6

233261466

$1.66

456

Hex. Flange Screw M6 X 25

250000945

$3.61

457

Hex. Flange Elastic Nut M6

233261466

$1.66

458

Black, Wheel Cap

503192771

$2.28

460

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

460a

Ball Bearing | Package-STD

503190396

$7.12

460b

Retaining Ring

415129371

$8.92

461

Casted Support

503193894

$12.75

462

Labyrinth Seal

503190434

$5.85

463

Wheel Cup M6

503191820

$4.66

464

Hex. Flange Screw M6 X 70

250000944

$3.61

465

Hex. Flange Elastic Nut M6

233261466

$1.66

466

Hex. Flange Screw M6 X 25

250000945

$3.61

467

Hex. Flange Elastic Nut M6

233261466

$1.66

468

Black, Wheel Cap

503192771

$2.28

600

Wheel 200, Black | Includes 600 to 600b

503191741

$49.97

600a

Ball Bearing | Package-STD

503190396

$7.12

600b

Retaining Ring

415129371

$8.92

610

Rear Axle

503196754

$78.43

620

Spacer

503196317

$15.35

650

Washer

503190432

$12.52

660

Rear Wheel Support

503196246

$4.83

670

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$49.97

670a

Ball Bearing | Package-STD

503190396

$7.12

670b

Retaining Ring

415129371

$8.92

680

Labyrinth Seal

503190682

$5.85

710

Washer

503191910

$2.25

720

Conical Spring Washer 10 mm

234201474

$1.39

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$3.61

800

Spring Support Kit

861805547

$8.14

810

Bushing

503196210

$11.05

830

Socket Screw M8 X 25

205082554

$1.74

840

Elastic Flange Nut M8

233281466

$0.83

900

Tensioner

503194266

$6.58

920

Hex. Cap Screw M8 X 95

503194267

$6.42

930

Hex. Elastic Stop Nut M8

232581414

$0.47

1000

Axle

503196663

$23.82

1020

Washer

503192494

$3.11

1030

Bolt M8 X 248mm

503192440

$29.97

1040

Elastic Flange Nut M8

233281466

$0.83

1090

Pivot Axle

503195954

$9.46

1100

Spacer

503195825

$1.58

1110

Washer

503192494

$3.11

1120

Bolt M8 X 248mm

503192440

$29.97

1130

Elastic Flange Nut M8

233281466

$0.83

1140

Axle Strap

503191260

$29.20

1150

Washer

503192496

$0.75

1160

Socket Head Screw M10 X 35

205503554

$6.18

1400

LH Spring

503194900

$66.89

1410

RH Spring

503194901

$66.89

1420

LH Support

503194294

$39.97

1430

RH Support

503194295

$39.97

1440

Hex. Flange Screw M8 X 30

207683054

$1.74

1445

Washer

503192494

$3.11

1450

Elastic Flange Nut M8

233281466

$0.83

1470

Hook Ass'y

503196336

$7.38

1480

Hex. Cap Screw M6 X 70

207167054

$3.61

1485

Flat Washer

250200039

$0.72

1490

Hex. Flange Elastic Nut M6

233261466

$1.66

1810

Black, Wheel Cap

503192771

$2.28

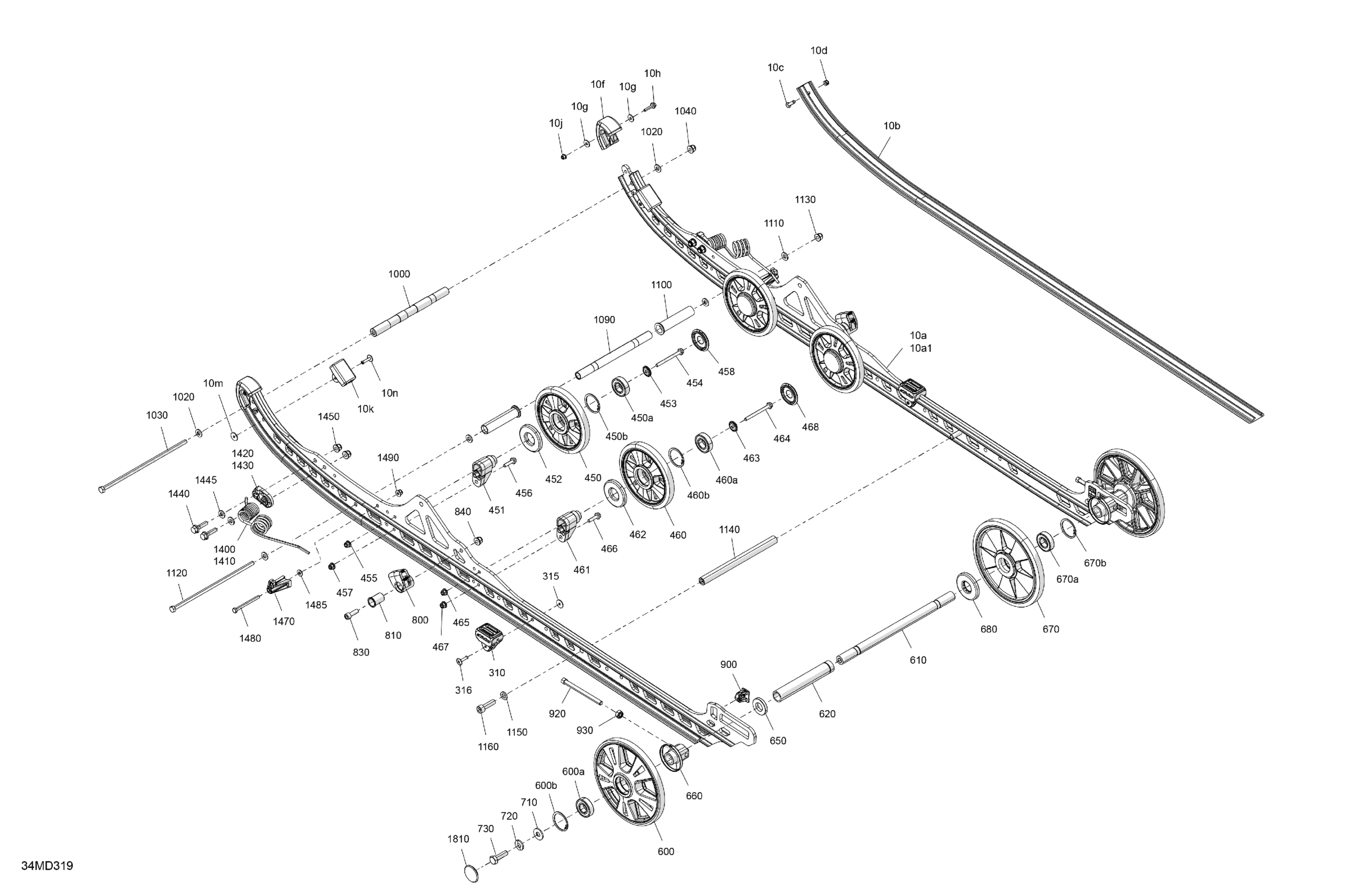

Ski-Doo BACKCOUNTRY 600R E-TEC - Adrenaline - UJRA - Deep Black - 146X15X1.6C Track, 2024 Suspension - Rear - Lower Section Diagram
