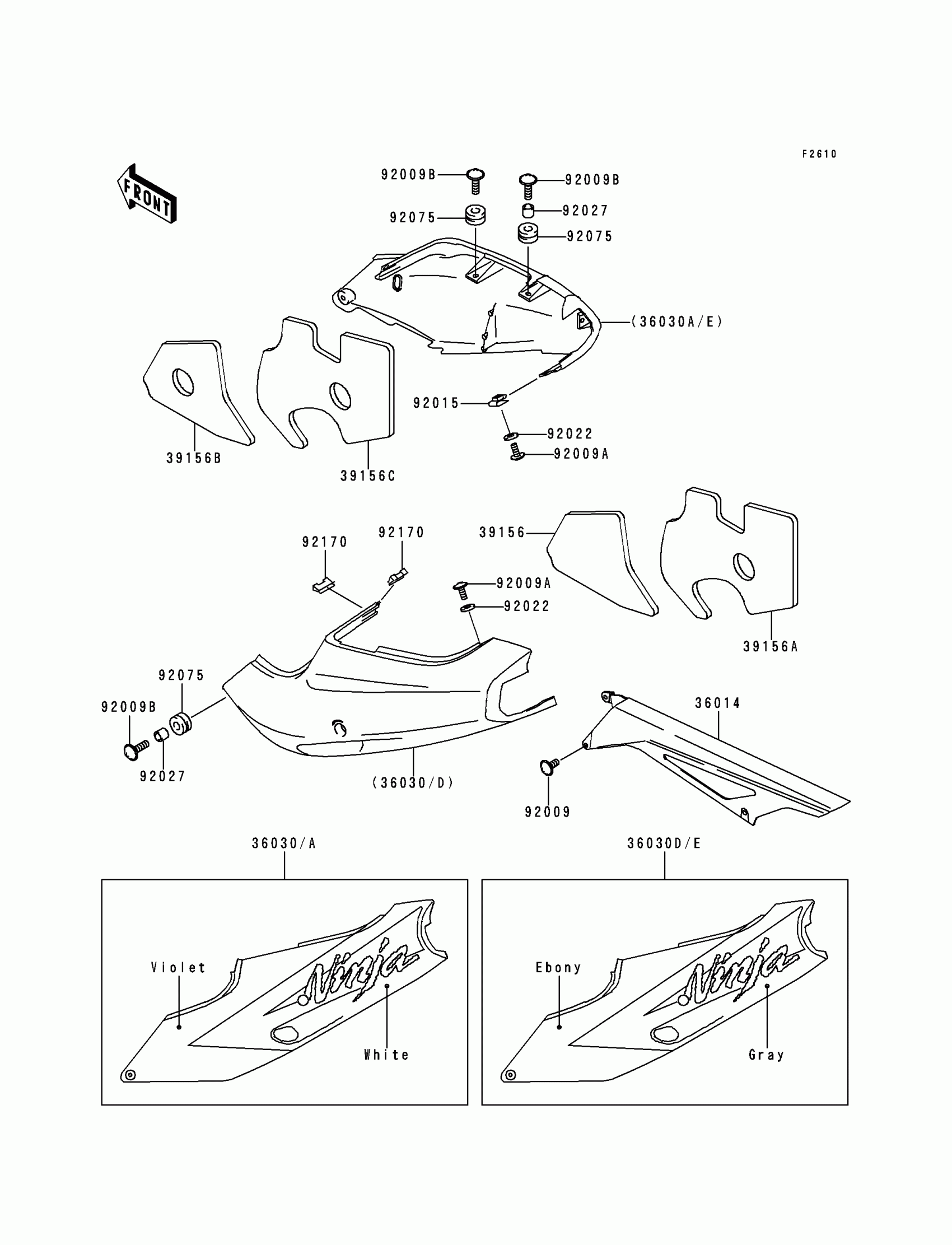

Kawasaki Ninja® ZX™-9R Side Covers/Chain Cover(ZX900-B1) Diagram

Description

Price

36014

CASE-CHAIN

36014-1189

Unavailable

36030

COVER-SIDE,LH,WHITE/VIOLET

36030-5334-39

$485.34

36030A

COVER-SIDE,RH,WHITE/VIOLET

36030-5335-39

$485.34

36030D

COVER-SIDE,LH,EBONY/GRAY

36030-5338-FG

$485.34

36030E

COVER-SIDE,RH,EBONY/GRAY

36030-5339-FG

$485.34

39156

PAD,SIDE COVER,LH,FR

39156-1396

Unavailable

39156A

PAD,SIDE COVER,LH,RR

39156-1397

Unavailable

39156B

PAD,SIDE COVER,RH,FR

39156-1398

Unavailable

39156C

PAD,SIDE COVER,RH,RR

39156-1399

Unavailable

92009

SCREW,6X10

92009-1402

$2.00

92009A

SCREW,5X16,BLACK

92009-1654

$2.51

92009B

SCREW

92009-1664

$3.57

92015

NUT,5MM

92015-1798

$5.45

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92027

COLLAR,6.8X10X8.5

92027-129

$3.97

92075

DAMPER

92075-1634

$3.72

92170

CLAMP

92170-1440

$5.22
