1996 Kawasaki Ninja® ZX™-9R Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1996 Kawasaki Ninja® ZX™-9R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

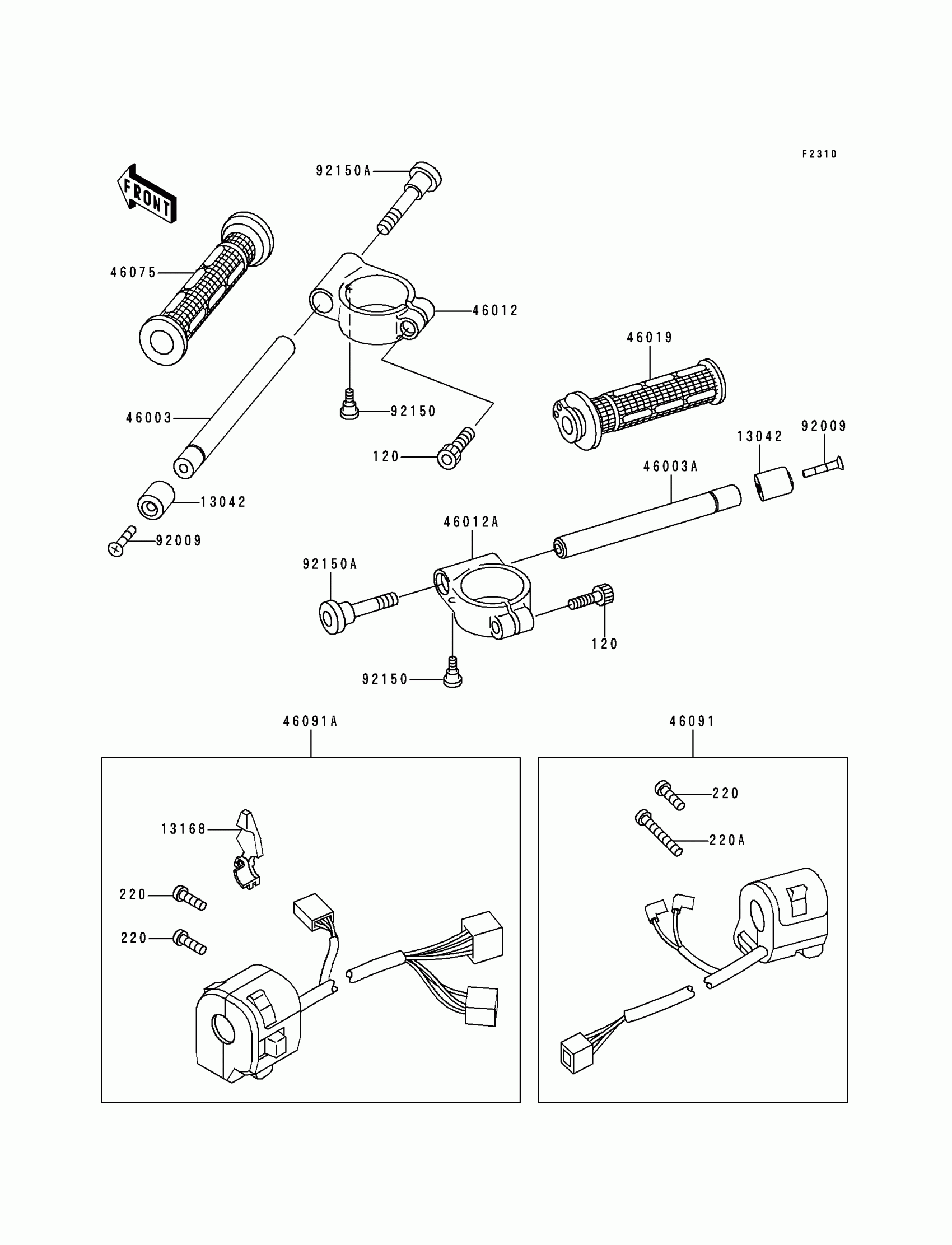

1996 Kawasaki Ninja® ZX™-9R Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X30

120P0830

1
Out of stock

220

SCREW-PAN-CROS,5X25

220C0525

1
Out of stock

220A

SCREW-PAN-CROS,5X40

220C0540

1
Out of stock

13042

WEIGHT,HANDLE

13042-1069

1
Out of stock

13168

LEVER,CHOKE

13168-1516

1
Out of stock

46003

HANDLE,LH

46003-1388

1
Out of stock

46003A

HANDLE,RH

46003-1389

1
Out of stock

46012

HOLDER-HANDLE,LH

46012-1250

1
Out of stock

46012A

HOLDER-HANDLE,RH

46012-1251

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-1077

1
Out of stock

46075

GRIP,LH

46075-1088

1
Out of stock

46091

HOUSING-ASSY-CONTROL,RH

46091-1591

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,LH

46091-1592

1
Out of stock

92009

SCREW,8X45

92009-1257

1
Out of stock

92150

BOLT,6MM

92150-1090

1
Out of stock

92150A

BOLT,SOCKET,10X37

92150-1469

1
Out of stock
