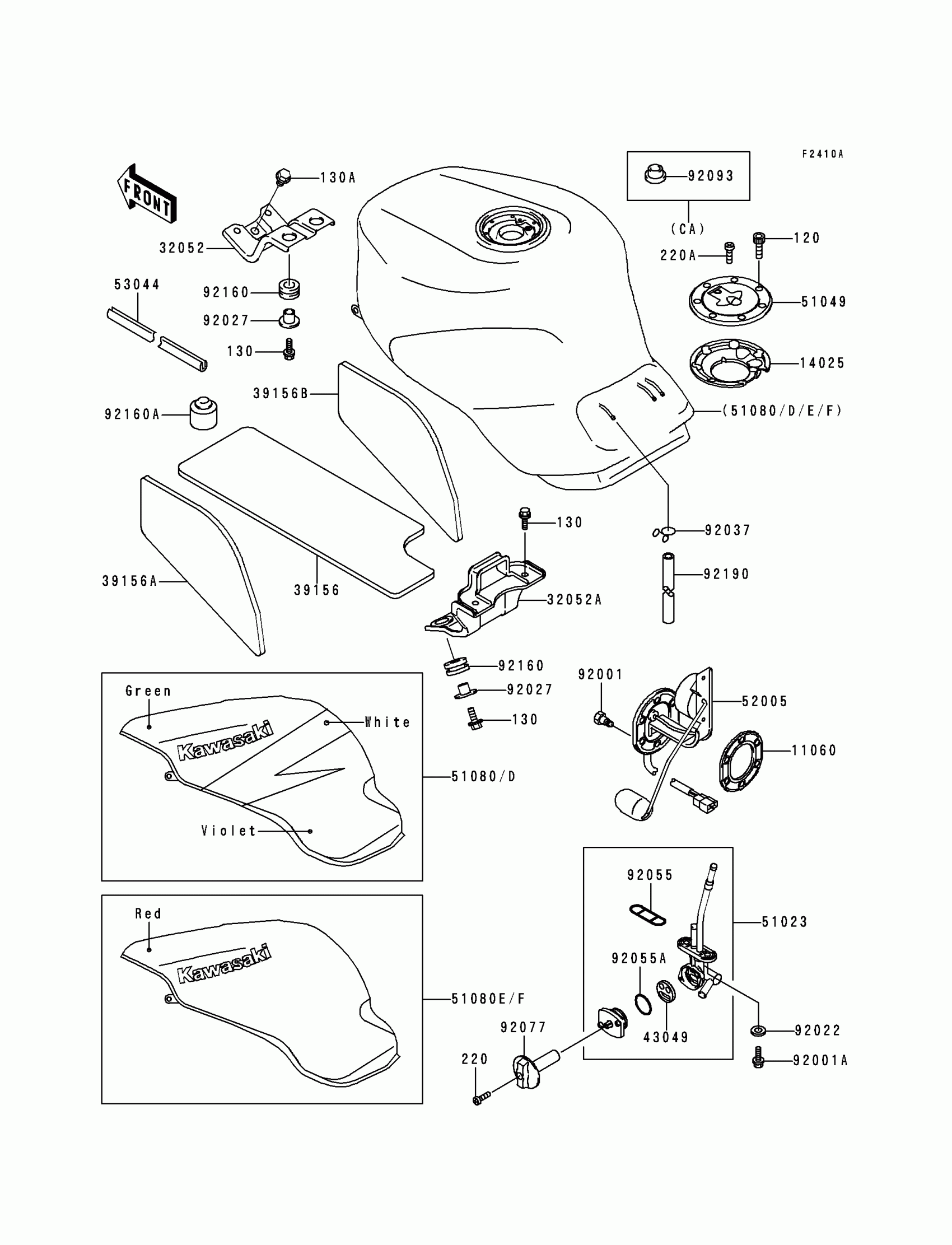

Kawasaki Ninja® ZX™-9R Fuel Tank(ZX900-B2) Diagram

#

Description
Price

11060

GASKET,FUEL GAUGE

11060-1337

$10.54

14025

COVER,TANK CAP

14025-1913

$19.98

32052

BRACKET-TANK,FR

32052-1386

Unavailable

32052A

BRACKET-TANK,RR

32052-1387

Unavailable

39156

PAD,FUEL TANK,FR

39156-1392

Unavailable

39156A

PAD,FUEL TANK,LH

39156-1394

Unavailable

39156B

PAD,FUEL TANK,RH

39156-1395

Unavailable

43049

PACKING,TAP VALVE

43049-1066

$5.77

51023

TAP-ASSY,FUEL

51023-1213

Unavailable

51049

CAP-TANK,FUEL

51049-1091

$117.85

52005

GAUGE,FUEL

52005-1108

Unavailable

53044

TRIM,WINDSHIELD

53044-1120

Unavailable

92001

BOLT,FUEL GAUGE

92001-1069

$5.76

92001A

BOLT,6X20

92001-1091

$3.12

92022

WASHER-PLAIN

92022-183

$3.12

92027

COLLAR,L=14.1

92027-1920

$5.45

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED

130J0620

Unavailable

130A

BOLT-FLANGED,8X12

130J0812

Unavailable

220

SCREW-PAN-CROS,4X25,BLACK

220C0425

$1.69

220A

SCREW-PAN-CROSS

220C0508

Unavailable

92037

CLAMP,TUBE

92037-147

$5.84

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.97

92055A

RING-O,TAP LEVER

92055-1419

$3.97

92077

KNOB,FUEL TAP

92077-1115

$19.69

92160

DAMPER

92160-1162

$3.97

92160A

DAMPER

92160-1513

$5.89

92190

TUBE,5X10X720

92190-1552

$13.54

51080

TANK-COMP-FUEL,GREEN/WHITE/VIO

51080-5081-89

$1,187.13

51080D

TANK-COMP-FUEL,GREEN/WHITE/VIO

51080-5087-89

$1,187.13

51080E

TANK-COMP-FUEL,C.W.RED

51080-5132-H3

Unavailable

51080F

TANK-COMP-FUEL,C.W.RED

51080-5133-H3

$1,187.13

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18
