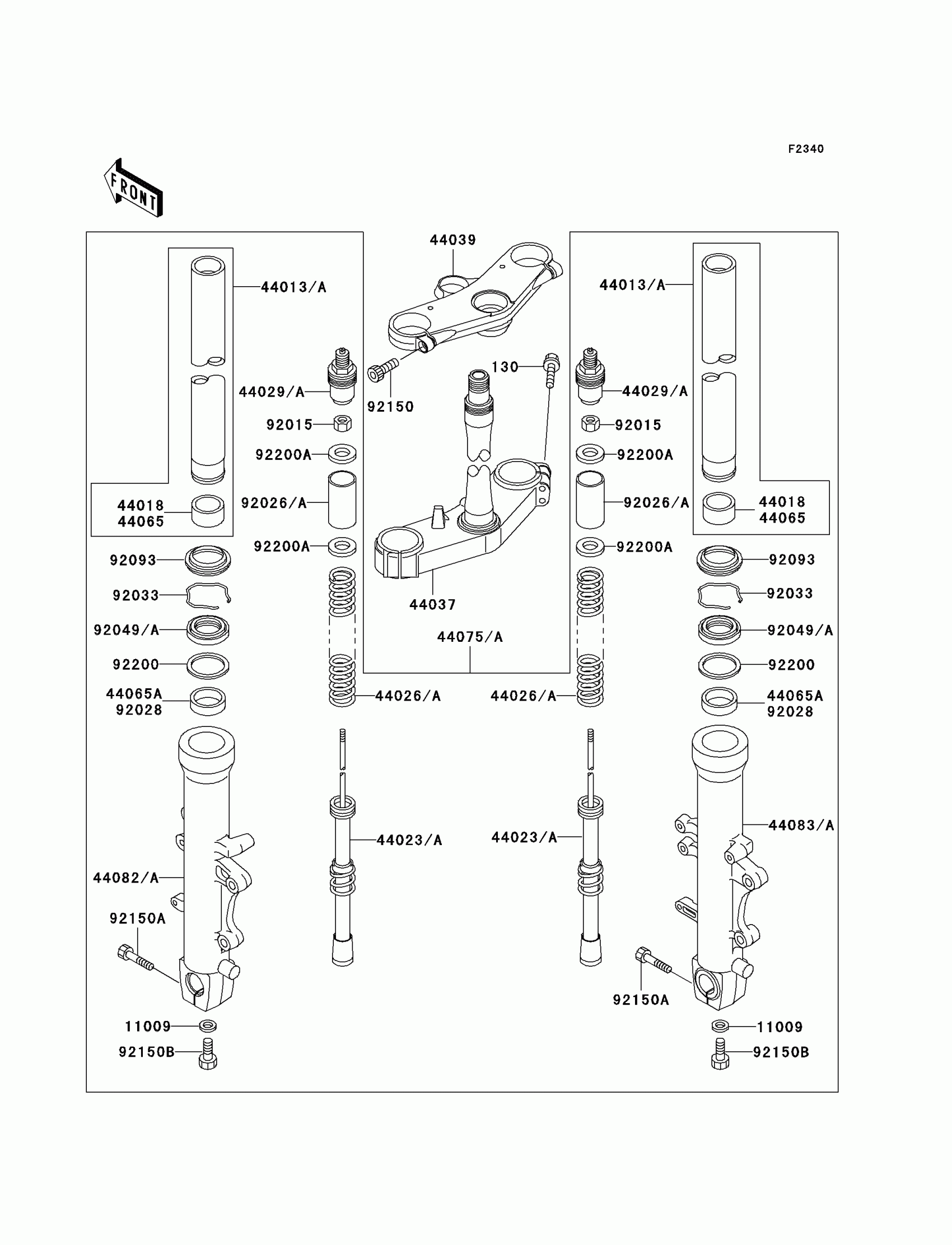

Kawasaki Ninja® ZX™-9R Front Fork(-JKAZX2C1 XA031068) Diagram

Description

Price

130

BOLT-FLANGED,8X40

130J0840

Unavailable

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$4.12

44013A

PIPE-FORK INNER

44013-1463

Unavailable

44023A

CYLINDER-SET-FORK

44023-1134

Unavailable

44026A

SPRING-FRONT FORK

44026-1694

Unavailable

44029A

SEAT-FORK SPRING

44029-1165

Unavailable

44037

HOLDER-FORK UNDER

44037-1365

Unavailable

44039

HOLDER-FORK UPPER

44039-1277

Unavailable

44065

BUSHING-FRONT FORK

44065-1129

$19.72

44065A

BUSHING-FRONT FORK

44065-1130

$19.92

44075A

DAMPER-SET-FORK

44075-1098

Unavailable

44082A

PIPE-COMP-LEFT FORK OUT

44082-1058

Unavailable

44083A

PIPE-COMP-RIGHT FORK OUT

44083-1057

Unavailable

92015

NUT

92015-1905

$18.34

92026A

SPACER,FORK,L=120

92026-1519

Unavailable

92033

RING-SNAP

92033-1264

$4.96

92049A

SEAL-OIL

92049-1508

$22.28

92093

SEAL,FORK OUTER TUBE

92093-1473

$21.23

92150

BOLT,SOCKET,8X25

92150-1172

$1.55

92150A

BOLT,SOCKET,8X40

92150-1194

$2.29

92150B

BOLT,12X22

92150-1398

$8.95

92200

WASHER

92200-1006

$11.86

92200A

WASHER

92200-1420

$9.41
