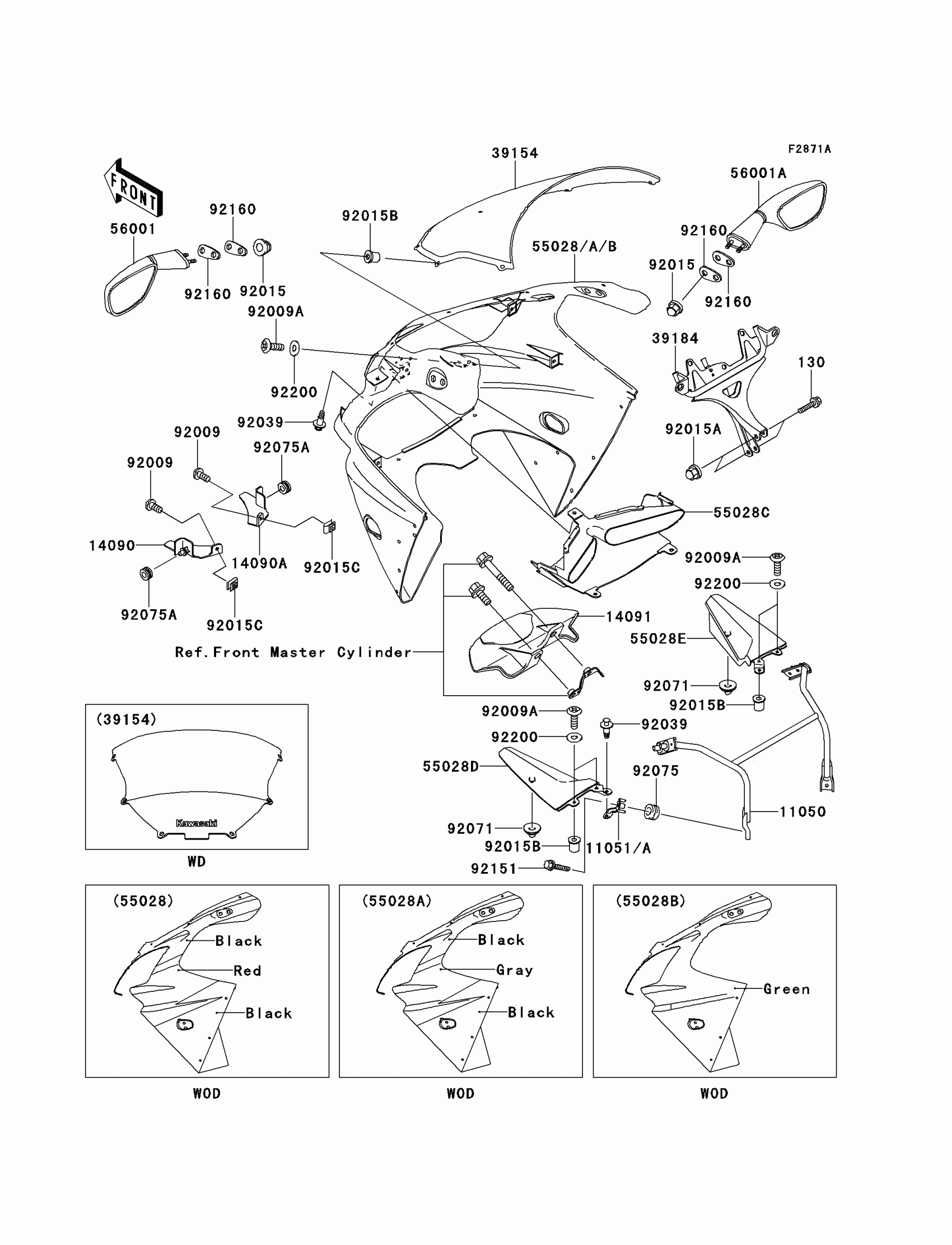

Kawasaki Ninja® ZX™-9R Cowling(ZX900-E2) Diagram

#

Description
Price

130

BOLT-FLANGED,8X30

130J0830

Unavailable

11050

BRACKET,MIRROR

11050-1439

$179.55

11051

BRACKET,INNER COWLING

11051-1818

Unavailable

11051A

BRACKET,INNER COWLING

11051-1820

Unavailable

14090

COVER,RADIATOR,LH

14090-1950

$22.88

14090A

COVER,RADIATOR,RH

14090-1951

$22.88

14091

COVER,UNDER BRACKET

14091-1271

$30.25

39154

WINDSHIELD

39154-5012

Unavailable

39184

BRACKET-ASSY,MAIN

39184-1085

$346.98

55028B

COWLING,UPP,C.L.GREEN

55028-1386-8N

$917.09

55028C

COWLING,DUCT,M.F.C.GRAY

55028-1387-3L

$100.44

55028D

COWLING,INNER,LH

55028-1388

$68.33

55028E

COWLING,INNER,RH

55028-1389

Unavailable

56001

MIRROR-ASSY,LH

56001-1483

$128.69

56001A

MIRROR-ASSY,RH

56001-1484

Unavailable

92009

SCREW,TAPPING,6X16

92009-1436

$2.56

92009A

SCREW,5X16

92009-1909

$1.71

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.69

92015A

NUT,CAP,8MM,BLACK

92015-1174

$3.97

92015B

NUT,WELL,5MM

92015-1757

$5.81

92015C

NUT,6MM

92015-1758

$5.45

92039

RIVET

92039-1227

$1.54

92071

GROMMET

92071-1222

$5.85

92075

DAMPER,RUBBER

92075-1123

$3.97

92075A

DAMPER

92075-1912

$5.07

92151

BOLT,SOCKET,6X25

92151-1611

$1.95

92160

DAMPER,MIRROR

92160-1089

$6.06

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.25

55028

COWLING,UPP,RED/BLACK

55028-1386-QU

Unavailable

55028A

COWLING,UPP,GRAY/BLACK

55028-1386-6I

Unavailable
