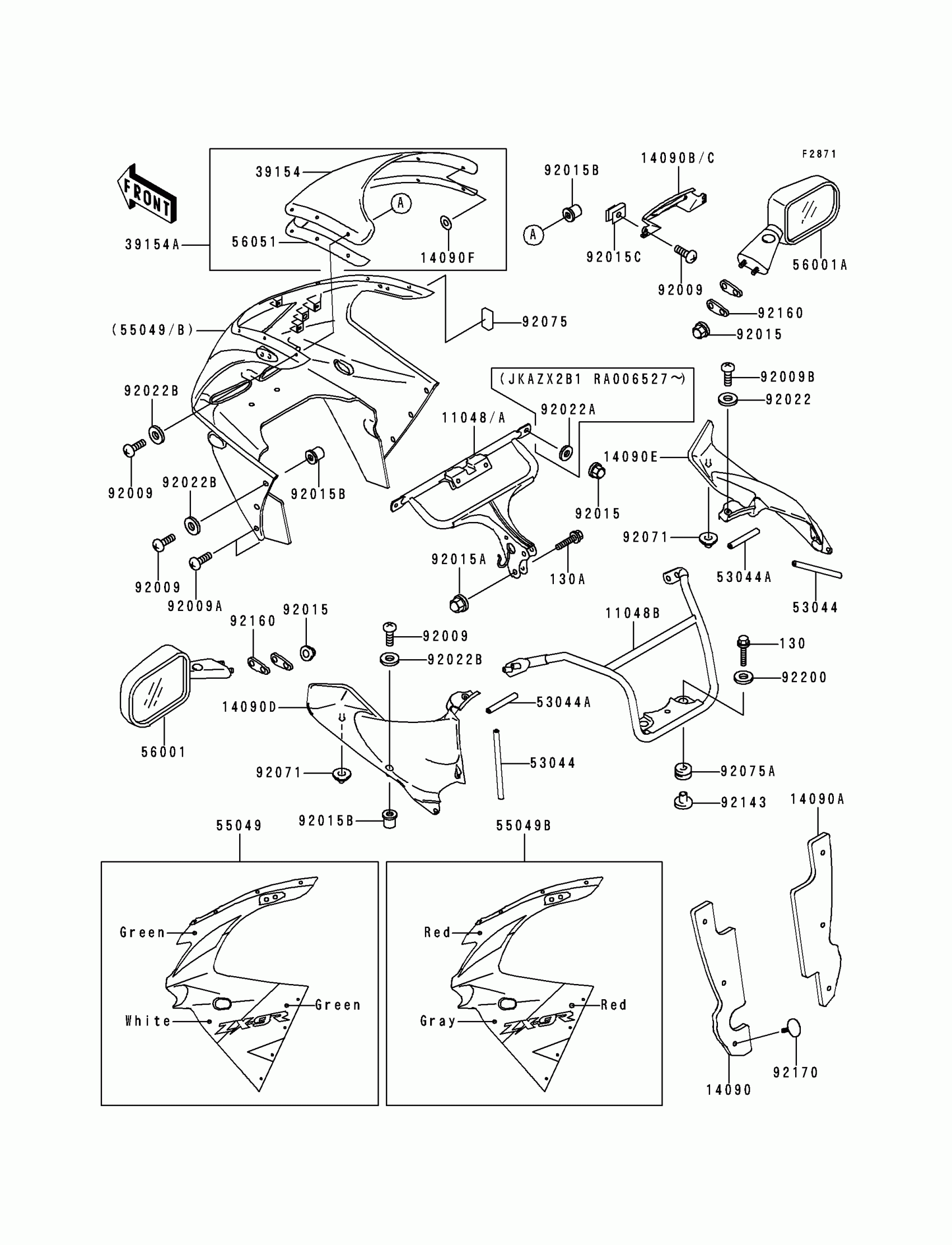

Kawasaki Ninja® ZX™-9R Cowling(ZX900-B1) Diagram

#

Description
Price

11048

BRACKET,UPP COWLING

11048-1789

Unavailable

11048A

BRACKET,UPP COWLING

11048-1847

Unavailable

11048B

BRACKET,MIRROR

11048-1961

$168.85

14090

COVER,HEAT GUARD,LH

14090-1385

Unavailable

14090A

COVER,HEAT GUARD,RH

14090-1386

Unavailable

14090B

COVER,POSITION LAMP,C.W.RED

14090-1404-H3

Unavailable

14090C

COVER,POSITION LAMP,L.GREEN

14090-1404-7F

$42.66

14090D

COVER,INNER COWLING,LH,GRAY

14090-1499-11

$212.77

14090E

COVER,INNER COWLING,RH,GRAY

14090-1500-11

Unavailable

14090F

COVER

14090-1505

Unavailable

39154

WINDSHIELD

39154-1124

$396.27

39154A

WINDSHIELD

39154-5005

$396.27

53044

TRIM

53044-1137

$10.25

53044A

TRIM,L=75

53044-1279

$9.22

55049

COWLING.,UPP,GREEN/WHITE

55049-5290-CK

Unavailable

55049B

COWLING.,UPP,GRAY/RED

55049-5296-92

$1,007.81

56001

MIRROR-ASSY,LH,BLACK

56001-1441-10

$167.46

56001A

MIRROR-ASSY,RH,BLACK

56001-1442-10

$167.46

56051

MARK,WINDSHIELD

56051-1115

Unavailable

92009

SCREW,5X16,BLACK

92009-1654

$2.51

92009A

SCREW,5X20,BLACK

92009-1656

$3.16

92009B

SCREW,6X14

92009-1662

$3.12

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.69

92015A

NUT,CAP,8MM,BLACK

92015-1174

$3.97

92015B

NUT,WELL,5MM

92015-1757

$5.81

92015C

NUT,5MM

92015-1798

$5.45

92022

WASHER,6.5X16X1

92022-1143

$3.12

92022A

WASHER,7X16X1.2

92022-1344

$3.12

92022B

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92071

GROMMET

92071-1222

$5.85

92075

DAMPER

92075-1902

$4.61

130

BOLT-FLANGED,6X30,BLACK

130J0630

Unavailable

130A

BOLT-FLANGED,8X30

130J0830

Unavailable

92075A

DAMPER RUBBER,RR FENR

92075-209

$3.72

92143

COLLAR

92143-1515

$19.42

92160

DAMPER,MIRROR

92160-1089

$6.06

92170

CLAMP

92170-1442

$3.76

92200

WASHER,6.5X22X1.6

92200-1087

$3.14
