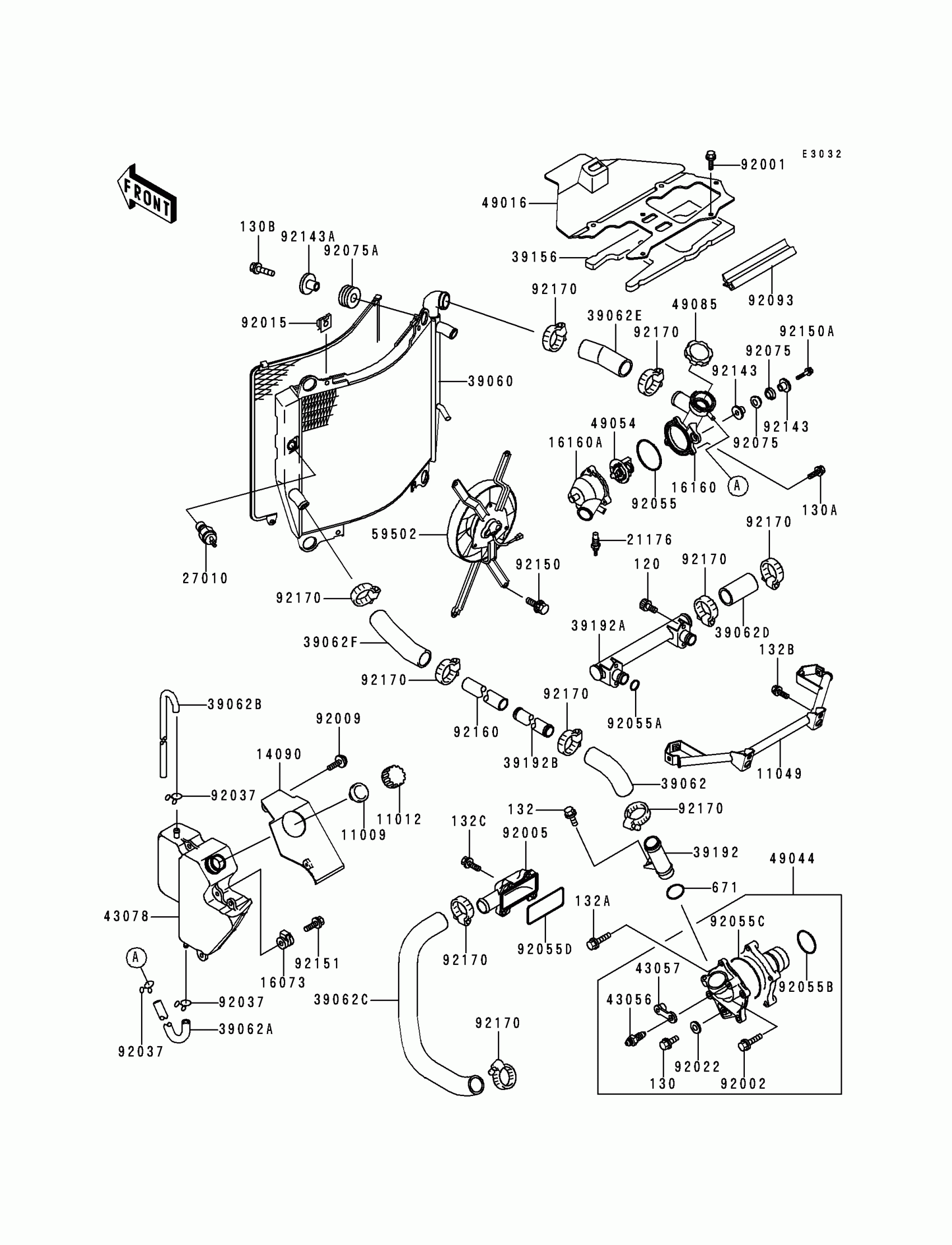

Kawasaki Ninja® ZX™-7RR Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11049

BRACKET,RADIATOR

11049-1349

$86.71

14090

COVER,RESERVOIR

14090-1634

$41.56

16073

INSULATOR

16073-1107

$4.80

16160

BODY,THERMOSTAT CAP

16160-1252

$170.41

16160A

BODY,THERMOSTAT CASE

16160-1253

Unavailable

21176

SENSOR,WATER

21176-1054

$75.00

27010

SWITCH,FAN

27010-1202

$88.04

39060

RADIATOR

39060-1133

$597.32

39062

HOSE-COOLING,WATER PUMP

39062-1472

$25.00

39062A

HOSE-COOLING,OVERFLOW

39062-1570

$11.29

39062B

HOSE-COOLING,DRAIN

39062-1610

$10.68

39062C

HOSE-COOLING,PUMP-CYLINDER

39062-1660

$51.81

39062D

HOSE-COOLING,HEAD-THERMO

39062-1663

$17.46

39062E

HOSE-COOLING,CAP-RADIATOR

39062-1664

$18.61

39062F

HOSE-COOLING,RADIATOR

39062-1666

$18.78

39156

PAD,HEAD COVER

39156-1516

$20.76

39192

PIPE-WATER

39192-1041

$37.49

39192A

PIPE-WATER

39192-1042

$115.64

39192B

PIPE-WATER

39192-1047

$34.59

43056

BREATHER-BRAKE

43056-1051

$14.88

43057

CAP-BREATHER

43057-1001

$3.73

43078

RESERVOIR

43078-1150

$71.56

49016

COVER-SEAL

49016-1185

$39.57

49044

PUMP-WATER

49044-1069

$356.29

49054

THERMOSTAT

49054-1067

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1067

$47.60

59502

FAN-ASSY,RADIATOR

59502-1114

$937.72

92001

BOLT,6X16

92001-1863

Unavailable

92002

BOLT,6X22

92002-1392

$4.19

92005

FITTING

92005-1316

$39.25

92009

SCREW,TAPPING,6X16

92009-1436

$2.56

92015

NUT

92015-1487

$3.64

92022

WASHER,6MM

92022-1976

$5.46

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,53.5X2.6

92055-112

$4.97

92055A

RING-O

92055-1282

$3.98

92055B

RING-O,33.2X2.4

92055-1424

$4.71

92055C

RING-O,WATER PUMP

92055-1495

$9.30

120

BOLT-SOCKET,6X12

120P0612

Unavailable

130

BOLT-FLANGED,6X10

130C0610

Unavailable

130A

BOLT-FLANGED

130J0520

Unavailable

130B

BOLT-FLANGED,6X25

130J0625

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132A

BOLT-FLANGED-SMALL

132J0645

Unavailable

132B

BOLT-FLANGED-SMALL,8X12

132J0812

Unavailable

132C

BOLT-FLANGED-SMALL,6X25

132Y0625

Unavailable

671

O RING,25MM

671B2525

$3.81

92055D

RING-O

92055-1545

Unavailable

92075

DAMPER,8MM

92075-1138

$2.76

92075A

DAMPER

92075-1665

$6.56

92093

SEAL

92093-1276

$11.83

92143

COLLAR

92143-1057

$3.81

92143A

COLLAR

92143-1063

$9.15

92150

BOLT,6X12

92150-1186

$2.56

92150A

BOLT,6X25

92150-1829

$3.29

92151

BOLT,6X30

92151-1086

$4.47

92160

DAMPER,WATER PIPE

92160-1297

$10.88

92170

CLAMP,COOLING HOSE

92170-1284

$6.25
