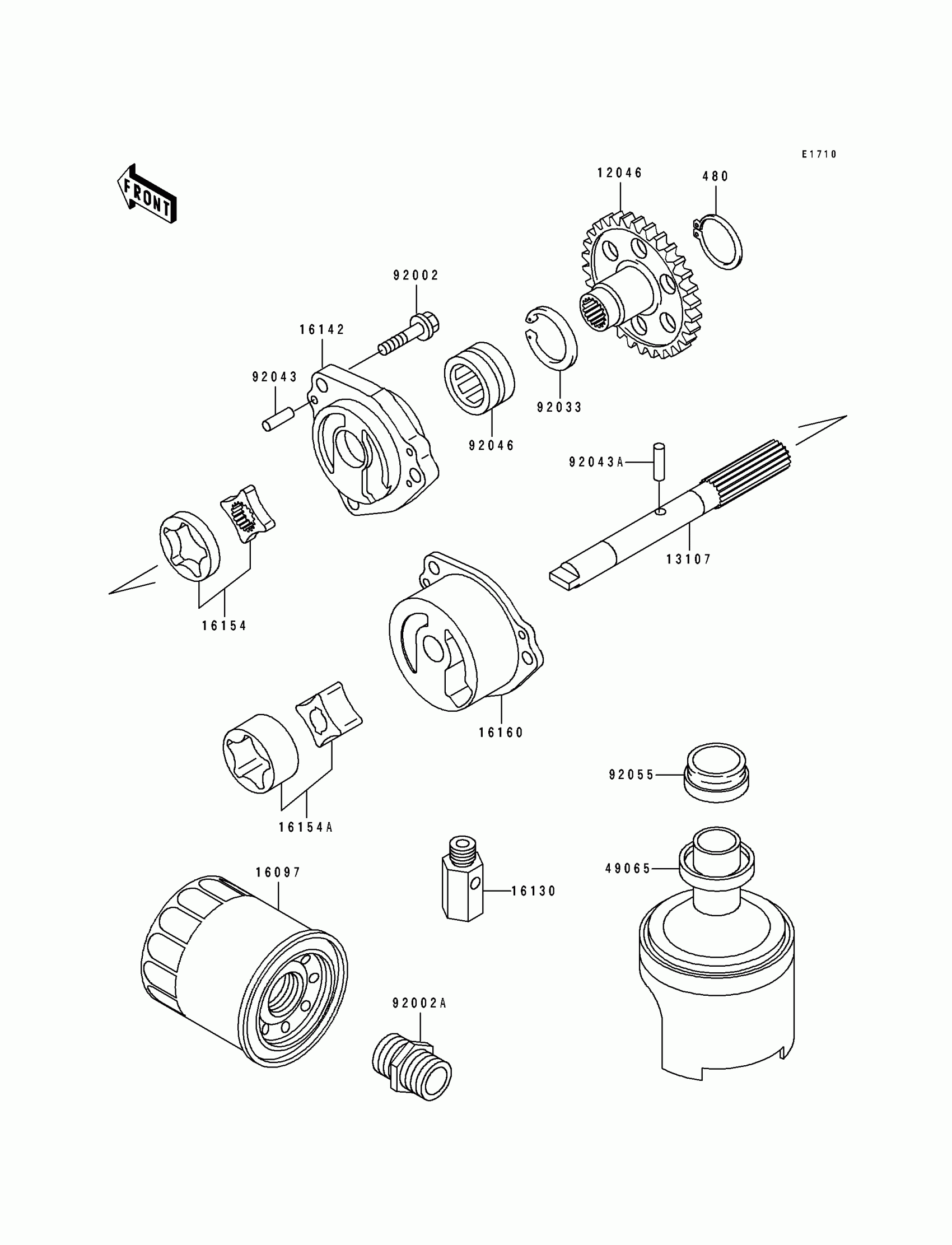

Kawasaki Ninja® ZX™-7R Oil Pump Diagram

Description

Price

12046

SPROCKET,OIL PUMP,30T

12046-1123

Unavailable

13107

SHAFT,OIL PUMP

13107-1278

Unavailable

16097

FILTER-ASSY-OIL

16097-1063

$11.46

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

16142

COVER-PUMP

16142-1110

$44.55

16154

ROTOR-PUMP

16154-1090

$71.52

16154A

ROTOR-PUMP,ENGINE

16154-1093

$62.06

16160

BODY,OIL PUMP

16160-1173

$124.32

49065

FILTER-OIL

49065-1068

Unavailable

92002

BOLT,FLANGED,6X25

92002-1582

$4.17

92002A

BOLT,OIL FILTER

92002-1899

Unavailable

92033

RING-SNAP

92033-1277

$4.76

92043

PIN,DOWEL,4X15.8

92042-014

$0.49

92043A

PIN,17.9X5.0

92043-1444

$3.85

92046

BEARING-NEEDLE,RNA4903

92046-1109

$47.16

92055

RING-O,OIL FILTER

92055-1503

$7.55

480

CIRCLIP-TYPE-C,15MM

480J1500

$1.85
