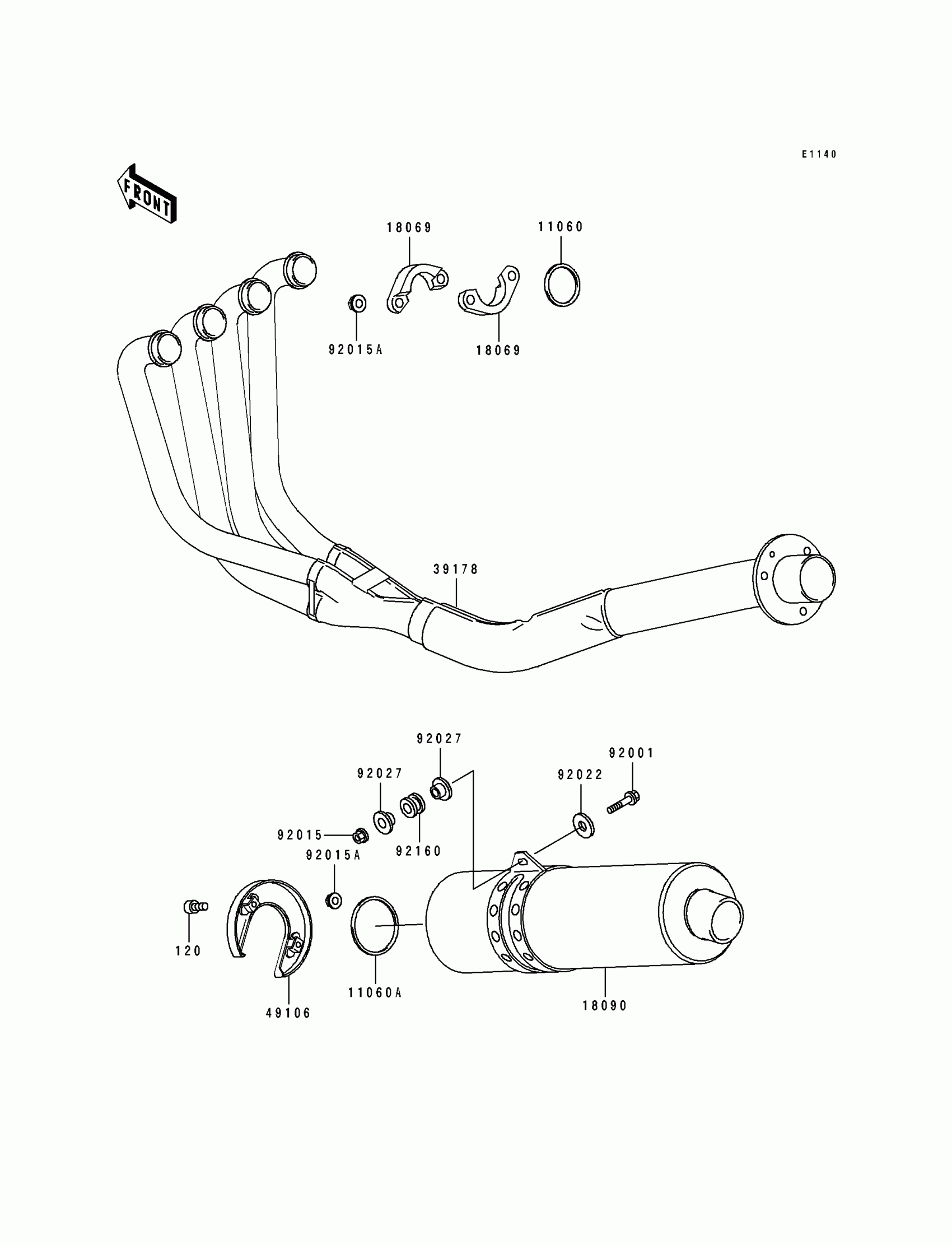

Kawasaki Ninja® ZX™-7R Muffler Diagram

Description

Price

11060

GASKET,EXHAUST PIPE HOLDER

11060-1103

$6.27

11060A

GASKET,MUFFLER CONNECTING

11060-1213

$21.76

18069

HOLDER-EXHAUST PIPE

18069-1072

$23.68

18090

BODY-COMP-MUFFLER

18090-1104

Unavailable

39178

MANIFOLD-COMP-EXHAUST

39178-1196

$1,332.61

49106

COVER-MUFFLER

49106-1126

$45.71

92001

BOLT,FLANGED,8X35

92001-1910

$5.71

92015

NUT,8MM

92015-1143

$0.66

92015A

NUT,LOCK,8MM

92015-1380

$3.46

92022

WASHER,8.5X19X1.2

92022-3730

$3.43

92027

COLLAR,FLANGED,8.8X10.6

92027-1653

$8.16

92160

DAMPER,MUFFLER MOUNT

92160-1116

$4.37

120

BOLT-SOCKET,6X10

120P0610

Unavailable
