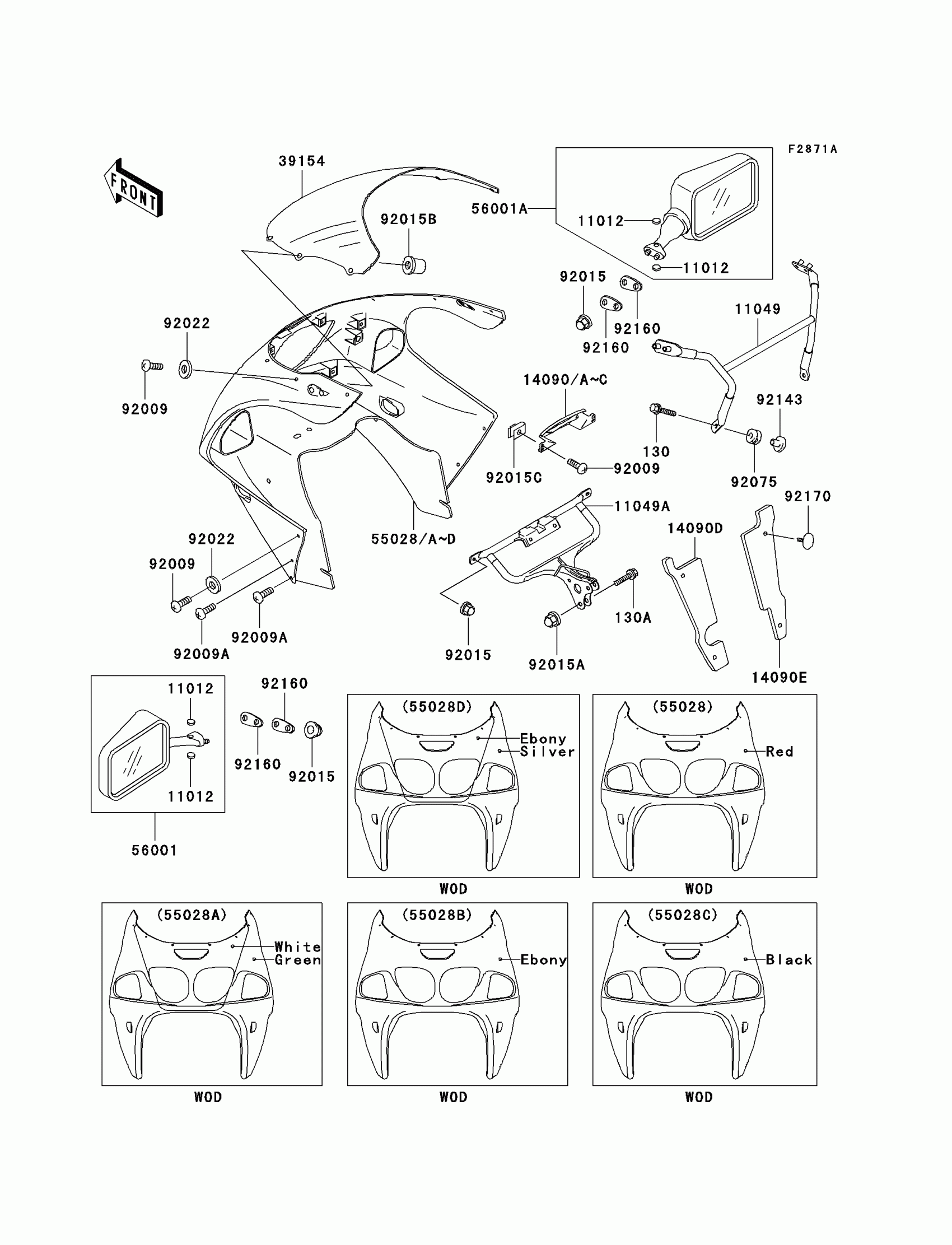

Kawasaki Ninja® ZX™-7R Cowling(ZX750-P2-P4) Diagram

#

Description
Price

130

BOLT-FLANGED,6X25

130J0625

Unavailable

130A

BOLT-FLANGED,8X30

130J0830

Unavailable

11012

CAP,MIRROR

11012-1818

$2.75

11049

BRACKET,MIRROR

11049-1327

Unavailable

11049A

BRACKET,UPP COWLING

11049-1328

$329.51

14090

COVER,POSITION LAMP,C.P.RED

14090-1404-A5

Unavailable

14090B

COVER,POSITION LAMP,WHITE

14090-1404-R1

Unavailable

14090D

COVER,HEAT GUARD,LH

14090-1649

Unavailable

14090E

COVER,HEAT GUARD,RH

14090-1650

$20.76

39154

WINDSHIELD

39154-1132

Unavailable

55028

COWLING,UPP,C.P.RED

55028-1343-A5

Unavailable

55028A

COWLING,UPP,GREEN/WHITE

55028-1343-CK

$1,168.50

56001

MIRROR-ASSY,LH,EBONY

56001-1376-6C

Unavailable

56001A

MIRROR-ASSY,RH,EBONY

56001-1377-6C

$85.41

92009

SCREW,5X16,BLACK

92009-1654

$2.51

92009A

SCREW,5X20,BLACK

92009-1656

$3.16

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.69

92015A

NUT,CAP,8MM,BLACK

92015-1174

$3.97

92015B

NUT,WELL,5MM

92015-1757

$5.81

92015C

NUT,5MM

92015-1798

$5.45

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92075

DAMPER,RUBBER

92075-1123

$3.97

92143

COLLAR

92143-1353

$6.81

92160

DAMPER,MIRROR

92160-1089

$6.06

92170

CLAMP

92170-1442

$3.76

14090A

COVER,POSITION LAMP,EBONY

14090-1404-H8

Unavailable

55028D

COWLING,UPP,EBONY/SILVER

55028-1343-5F

Unavailable
