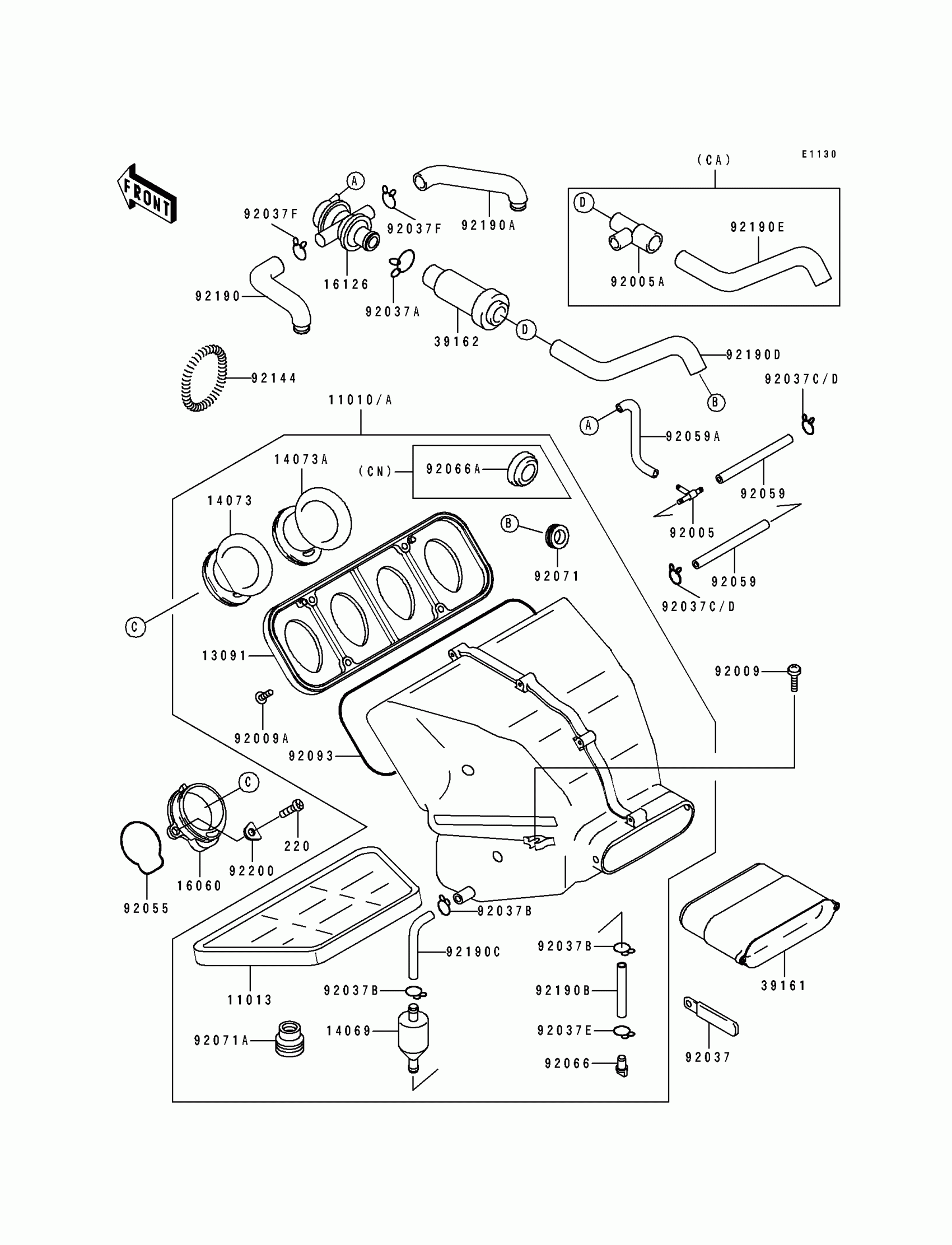

Kawasaki Ninja® ZX™-7R Air Filter Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1449

Unavailable

11010A

FILTER-ASSY-AIR

11010-1451

Unavailable

11013

ELEMENT-AIR FILTER

11013-1210

$54.50

13091

HOLDER,AIR FILTER

13091-1735

Unavailable

14069

BREATHER

14069-1051

$8.09

14073

DUCT,#1

14073-1500

$24.47

14073A

DUCT,#2

14073-1501

$34.75

16060

PIPE-INTAKE

16060-1069

$23.79

16126

VALVE,AIR SWITCH

16126-1104

$197.28

39161

SILENCER-ASSY-INTAKE

39161-1068

Unavailable

39162

SILENCER-INTAKE

39162-1003

Unavailable

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING,SILENCER

92005-1207

Unavailable

92009

SCREW,6X25

92009-1511

$3.64

92009A

SCREW,TAPPING,6X25

92009-1640

$4.61

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,TUBE

92037-1076

$7.14

92037B

CLAMP,12.5MM

92037-1271

$1.80

92037C

CLAMP,TUBE

92037-1461

$3.08

92037D

CLAMP

92037-1712

$3.97

92037E

CLAMP,TUBE

92037-1972

$3.43

92037F

CLAMP,TUBE

92037-213

$3.43

92055

RING-O

92055-1492

$4.72

92059

TUBE,FUEL,4X9X140

92059-1230

$15.01

92059A

TUBE,4X9X705,WHITE

92059-1690

$15.01

92066

PLUG,DRAIN

92066-1211

$6.75

92066A

PLUG,25MM

92066-1321

Unavailable

92071

GROMMET,AIR FILTER

92071-1028

$5.78

92071A

GROMMET,AIR FILTER

92071-1204

$9.03

92093

SEAL,AIR FILTER

92093-1320

Unavailable

92144

SPRING

92144-1564

$12.27

92190

TUBE,HEAD-AIR SWITCH,LH

92190-1197

Unavailable

92190A

TUBE,HEAD-AIR SWITCH,RH

92190-1198

Unavailable

92190B

TUBE,7X12X45

92190-1200

$12.36

92190C

TUBE,BREATHER

92190-1243

Unavailable

92190D

TUBE,AIR SWITCH-AIR FILTER

92190-1254

Unavailable

92190E

TUBE,AIR SWITCH-AIR FILTER

92190-1255

$14.61

92200

WASHER,DUCT

92200-1058

$3.70

220

SCREW PAN HEAD 5X8

220B0508

Unavailable
