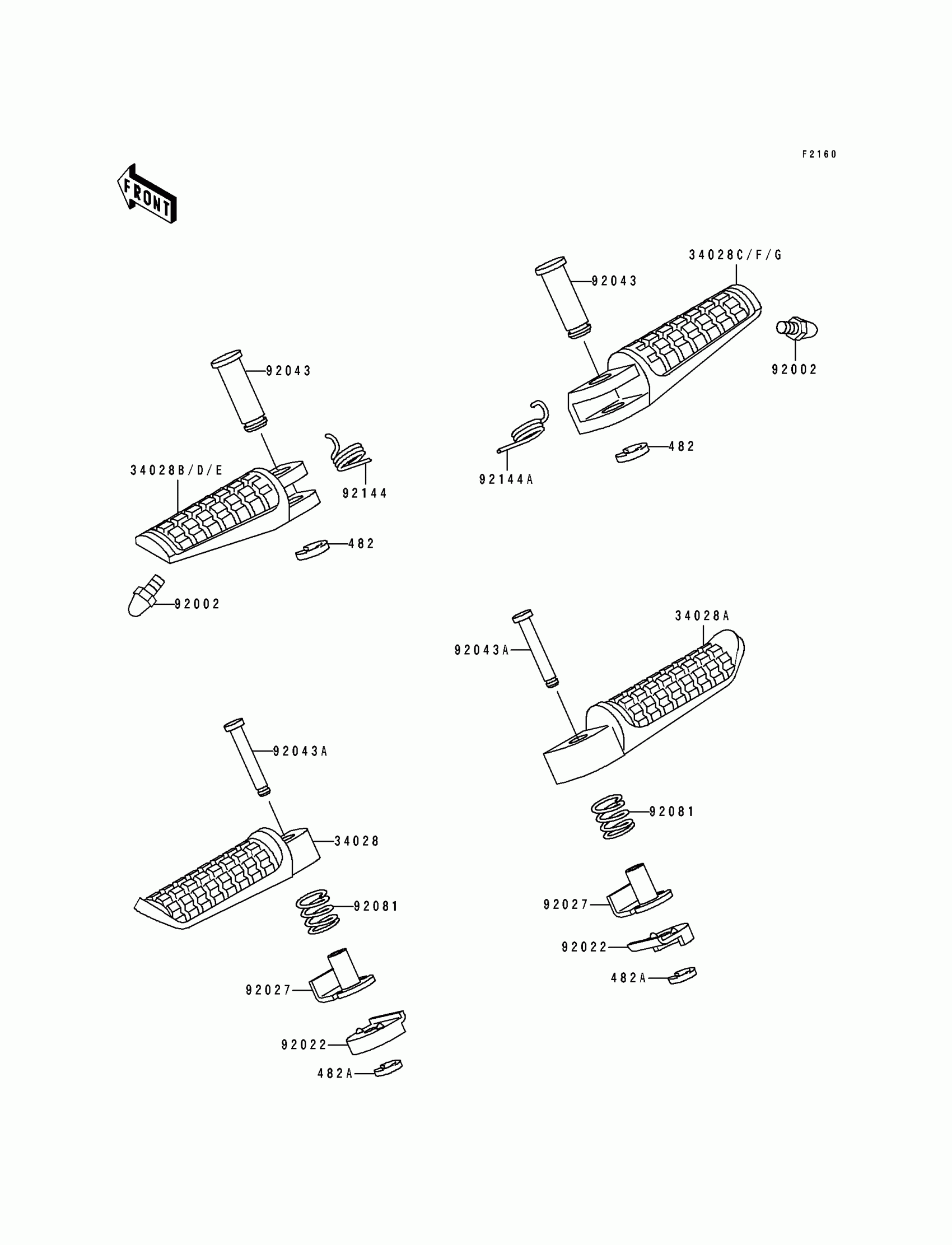

Kawasaki Ninja® ZX™-7 Step Diagram

Description

Price

34028

STEP,RR,LH

34028-1191

$61.01

34028A

STEP,RR,RH

34028-1192

$67.74

34028D

STEP,FR,LH

34028-1338

Unavailable

34028F

STEP,FR,RH

34028-1339

$47.03

92002

BOLT,BANK SENSOR

92002-1742

$8.63

92022

WASHER,STEP,RR

92022-1507

$4.61

92027

COLLAR,STEP

92027-1732

$10.73

92043

PIN,12X37

92043-1144

$8.90

92043A

PIN,6X38.5

92043-1238

$4.15

92081

SPRING,STEP,RR

92081-1612

$3.81

92144

SPRING,STEP RETURN

92144-1567

$5.15

92144A

SPRING,STEP RETURN

92144-1568

$5.15

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.98

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.20
