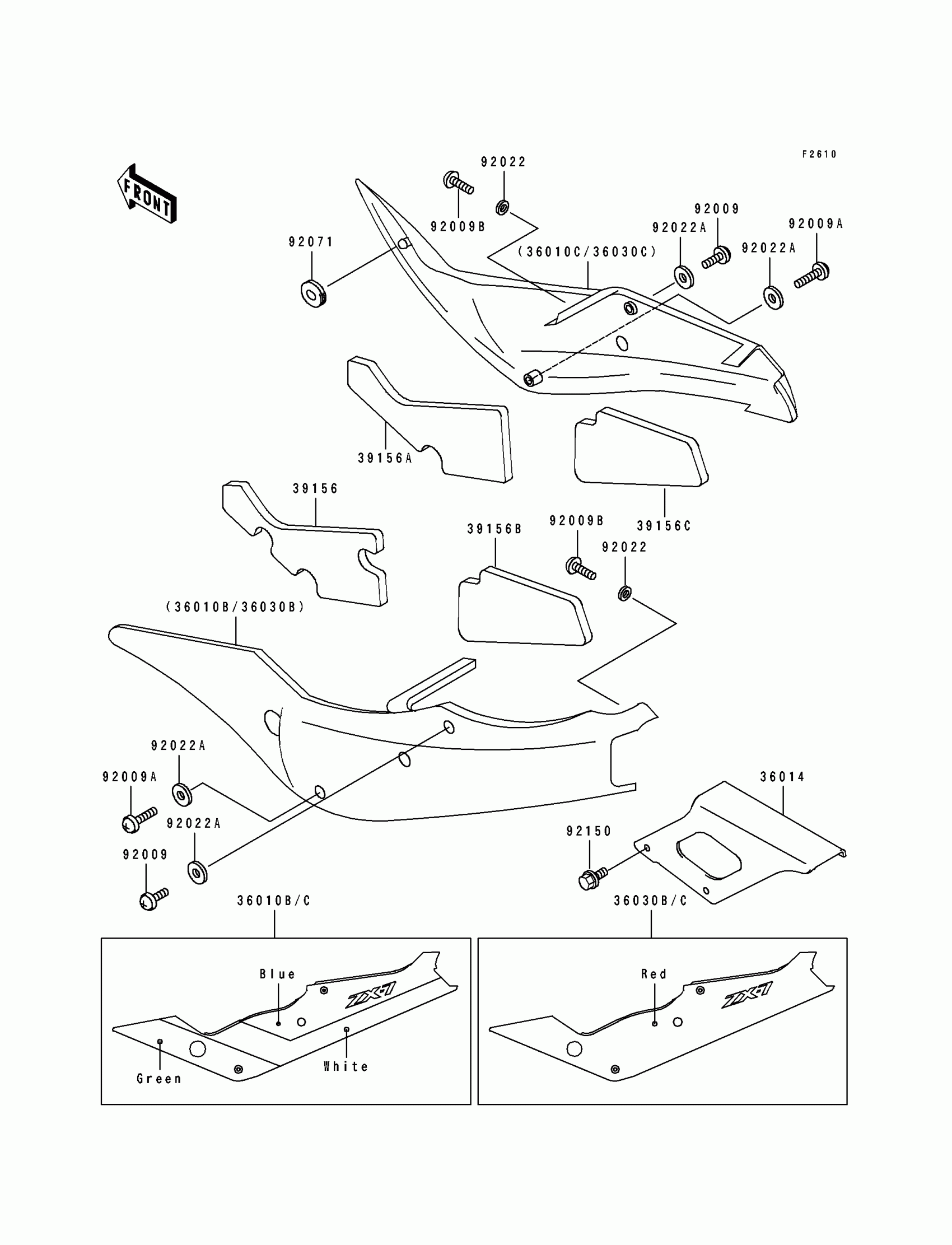

Kawasaki Ninja® ZX™-7 Side Cover/Chain Case Diagram

Description

Price

36010B

C0VER-SIDE,LH,GREEN/WHITE/BLUE

36010-5462-KE

Unavailable

36010C

COVER-SIDE,RH,GREEN/WHITE/BLUE

36010-5463-KE

$538.84

36014

CASE-CHAIN

36014-1176

Unavailable

36030B

COVER-SIDE,LH,C.W.RED

36030-5083-H3

Unavailable

36030C

COVER-SIDE,RH,C.W.RED

36030-5084-H3

Unavailable

39156

PAD,SIDE COVER,FR,LH

39156-1252

Unavailable

39156A

PAD,SIDE COVER,FR,RH

39156-1253

$33.25

39156B

PAD,SIDE COVER,RR,LH

39156-1254

$22.51

39156C

PAD,SIDE COVER,RR,RH

39156-1255

$22.51

92009

SCREW,6X14,WHITE

92009-1287

$2.10

92009A

SCREW,6X20

92009-1298

$3.43

92009B

SCREW,5X16,BLACK

92009-1654

$2.51

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92022A

WASHER,6.5X16X1.0

92022-1654

$2.92

92071

GROMMET

92071-1043

$4.08

92150

BOLT,FLANGED,6X12

92150-1235

$4.34
