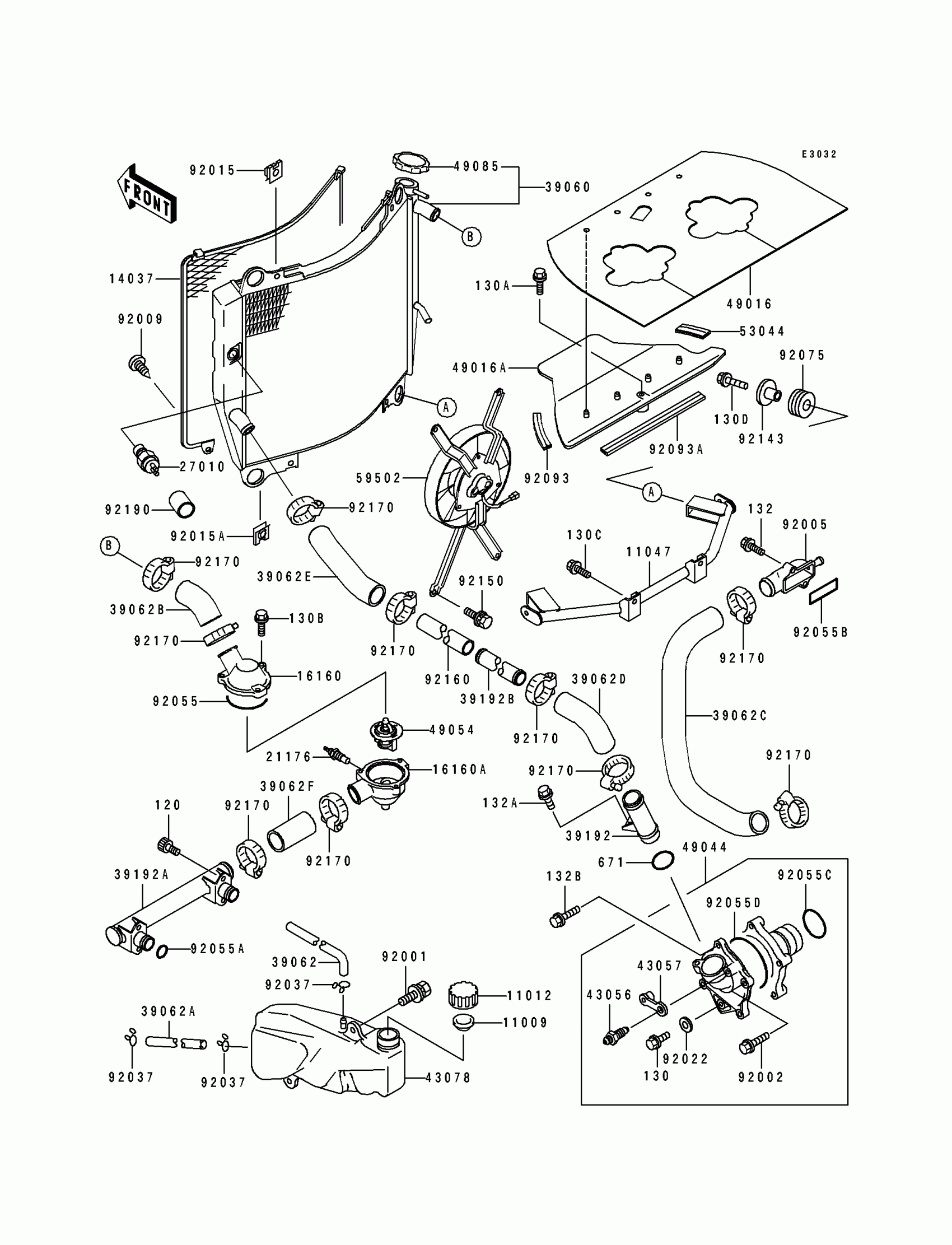

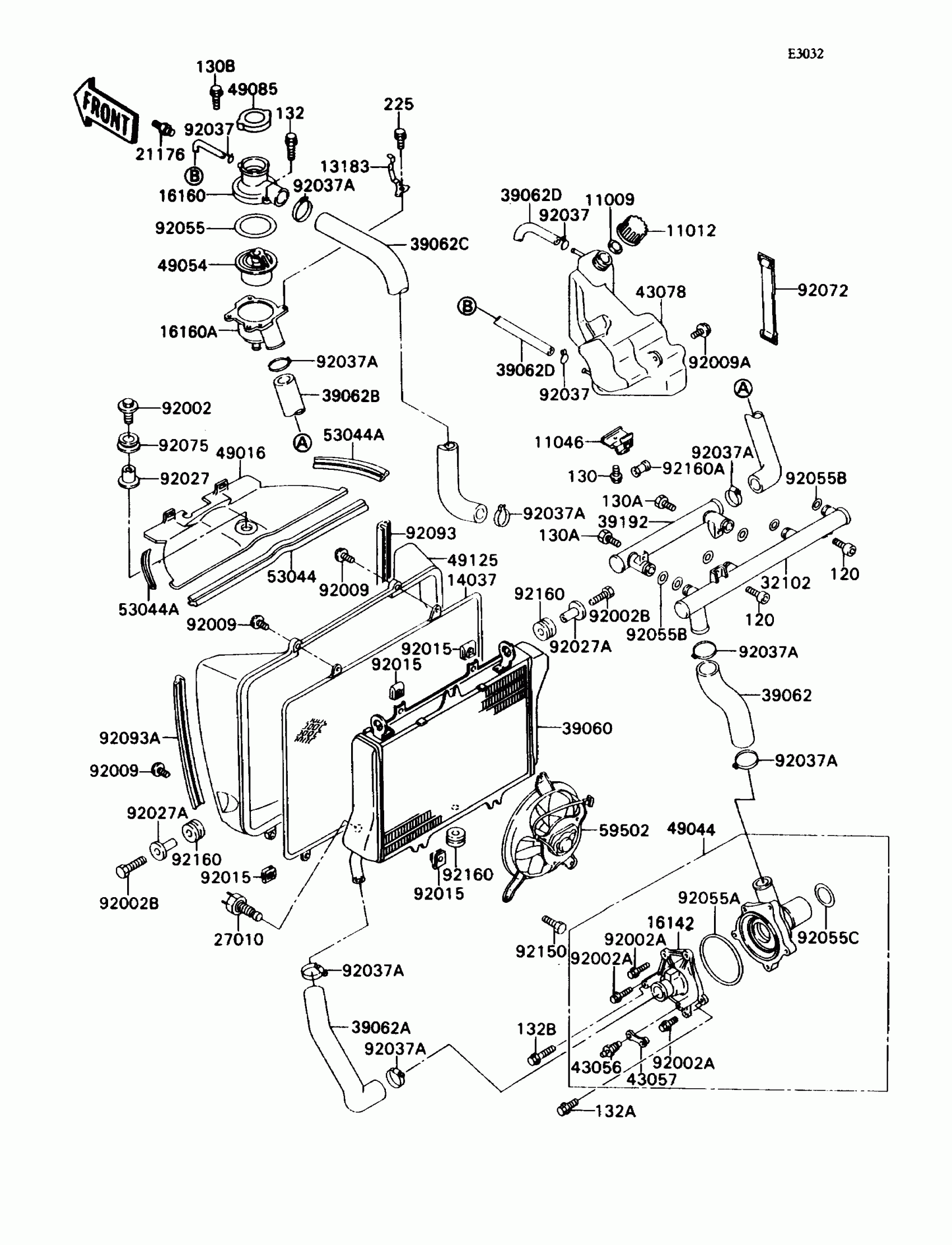

Kawasaki Ninja® ZX™-7 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11046

BRACKET

11046-1580

Unavailable

13183

PLATE

13183-1472

Unavailable

14037

SCREEN

14037-1115

$84.91

16142

COVER-PUMP

16142-1092

Unavailable

16160

BODY,UPP

16160-1152

$69.01

16160A

BODY

16160-1153

$74.16

21176

SENSOR,WATER

21176-1054

$75.00

27010

SWITCH,FAN

27010-1202

$88.04

32102

PIPE,COOLING

32102-1243

$135.69

39060

RADIATOR

39060-1088

$1,022.66

39062

HOSE-COOLING

39062-1197

$31.68

39062A

HOSE-COOLING

39062-1324

Unavailable

39062B

HOSE-COOLING

39062-1325

Unavailable

39062C

HOSE-COOLING

39062-1326

Unavailable

39062D

HOSE-COOLING,CAP-RESERVOIR

39062-1340

$35.25

39192

PIPE-WATER

39192-1036

Unavailable

43056

BREATHER-BRAKE

43056-1051

$14.88

43057

CAP-BREATHER

43057-1001

$3.73

43078

RESERVOIR

43078-1097

$73.12

49016

COVER-SEAL

49016-1142

$40.57

49044

PUMP-WATER

49044-1065

Unavailable

49054

THERMOSTAT

49054-1051

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1062

$33.19

49125

SHROUD

49125-1056

Unavailable

53044

TRIM

53044-1180

$24.59

53044A

TRIM

53044-1220

$7.20

59502

FAN-ASSY

59502-1083

Unavailable

92002

BOLT,6X25

92002-1135

$3.85

92002A

BOLT,6X22

92002-1392

$4.19

92002B

BOLT,FLANGED,8X40

92002-1838

$6.54

92009

SCREW,6X22,BLACK

92009-1256

$1.96

92009A

SCREW,6X14,BLACK

92009-1308

$2.99

92015

NUT

92015-1487

$3.64

92027

COLLAR,L=12

92027-1062

$7.25

92027A

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,COOLING HOSE

92037-1985

$6.25

92055

RING-O,53.5X2.6

92055-112

$4.97

92055A

RING-O,WATER PUMP

92055-1271

$8.42

92055B

RING-O

92055-1282

$3.98

92055C

RING-O,WATER PUMP

92055-1378

$8.27

92072

BAND,L=200

92072-1253

Unavailable

92075

DAMPER,RUBBER

92075-1123

$3.81

92093

SEAL

92093-1282

$8.37

92093A

SEAL

92093-1283

$10.85

92150

BOLT,6X12

92150-1186

$2.56

92160

DAMPER

92160-1119

$4.49

92160A

DAMPER

92160-1129

Unavailable

120

BOLT-SOCKET,6X10

120S0610

Unavailable

130

BOLT-FLANGED,6X8

130J0608

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

130B

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

132

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X50

132J0650

Unavailable

225

SCREW-PAN-WSP-CROS,4X12

225C0412

Unavailable
