Partiron

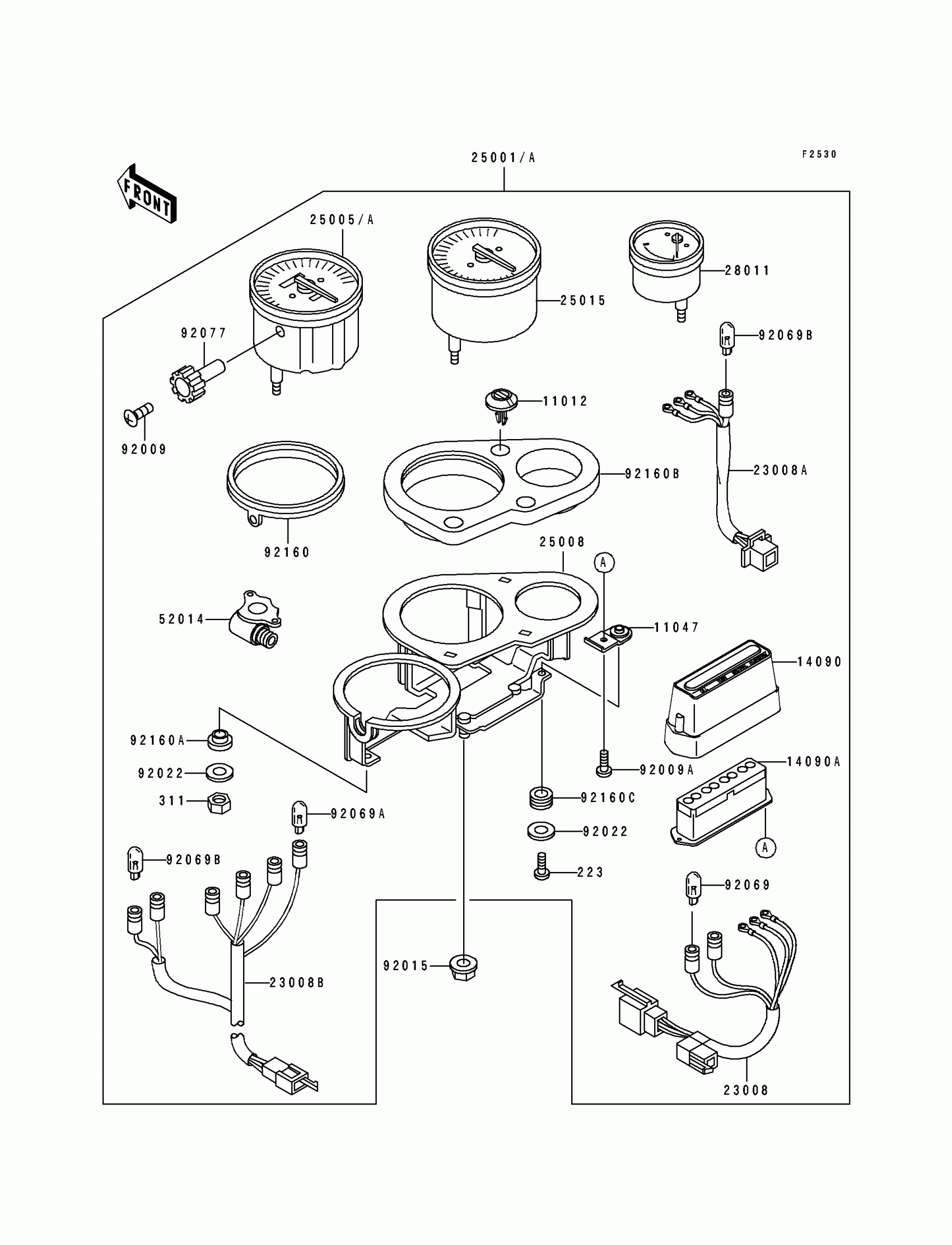

Kawasaki Ninja® ZX™-7 Meter Diagram

#

Description
Price

11012

CAP

11012-1779

Unavailable

11047

BRACKET,PILOT BOX

11047-1557

Unavailable

14090

COVER,PILOT BOX,UPP

14090-1072

Unavailable

14090A

COVER,PILOT BOX,LWR

14090-1073

Unavailable

23008

SOCKET-ASSY,TACHOMETER

23008-1386

Unavailable

23008A

SOCKET-ASSY,TEMP METER

23008-1388

Unavailable

23008B

SOCKET-ASSY,SPEEDOMETER

23008-1465

Unavailable

25001

METER-ASSY,MPH

25001-1873

$1,384.11

25001A

METER-ASSY,KPH

25001-1875

Unavailable

25005

SPEEDOMETER,MPH

25005-1471

$360.96

25005A

SPEEDOMETER,KPH

25005-1473

Unavailable

25008

BRACKET-METER

25008-1175

Unavailable

25015

TACHOMETER,X1000R/MIN

25015-1310

$437.04

28011

METER,TEMP

28011-1120

Unavailable

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

Unavailable

92009

SCREW,2X6,BLACK

92009-1172

$2.15

92009A

SCREW,TAPPING,3X16

92009-1391

$2.92

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92022

WASHER,4.3X12.5X1

92022-1949

$3.17

92069

BULB,12V 3W,T7

92069-1020

Unavailable

92069A

BULB,14V 3W,T6.5

92069-1068

$3.97

92069B

BULB,12V 1.7W,T6.5

92069-1070

$5.16

92077

KNOB,METER

92077-1073

$17.15

92160

DAMPER,SPEEDOMETER

92160-1064

$25.24

92160A

DAMPER

92160-1068

$7.44

92160B

DAMPER,TACHO&TEMP METER

92160-1274

Unavailable

92160C

DAMPER,PILOT BOX

92160-1320

Unavailable

223

SCREW-PAN-WS-CROS,4X6

223C0406

Unavailable

311

NUT-HEX

311C0400

$0.63
