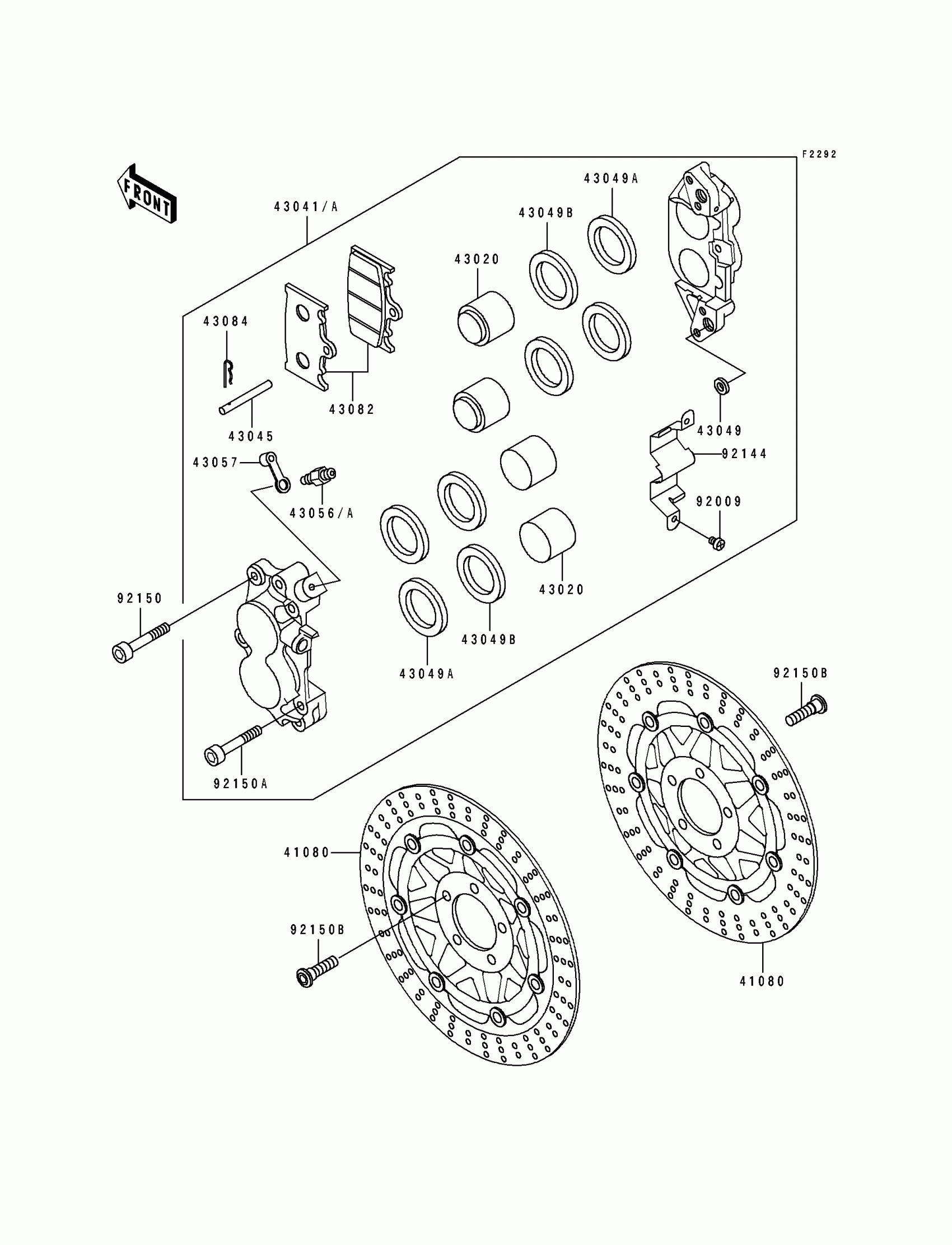

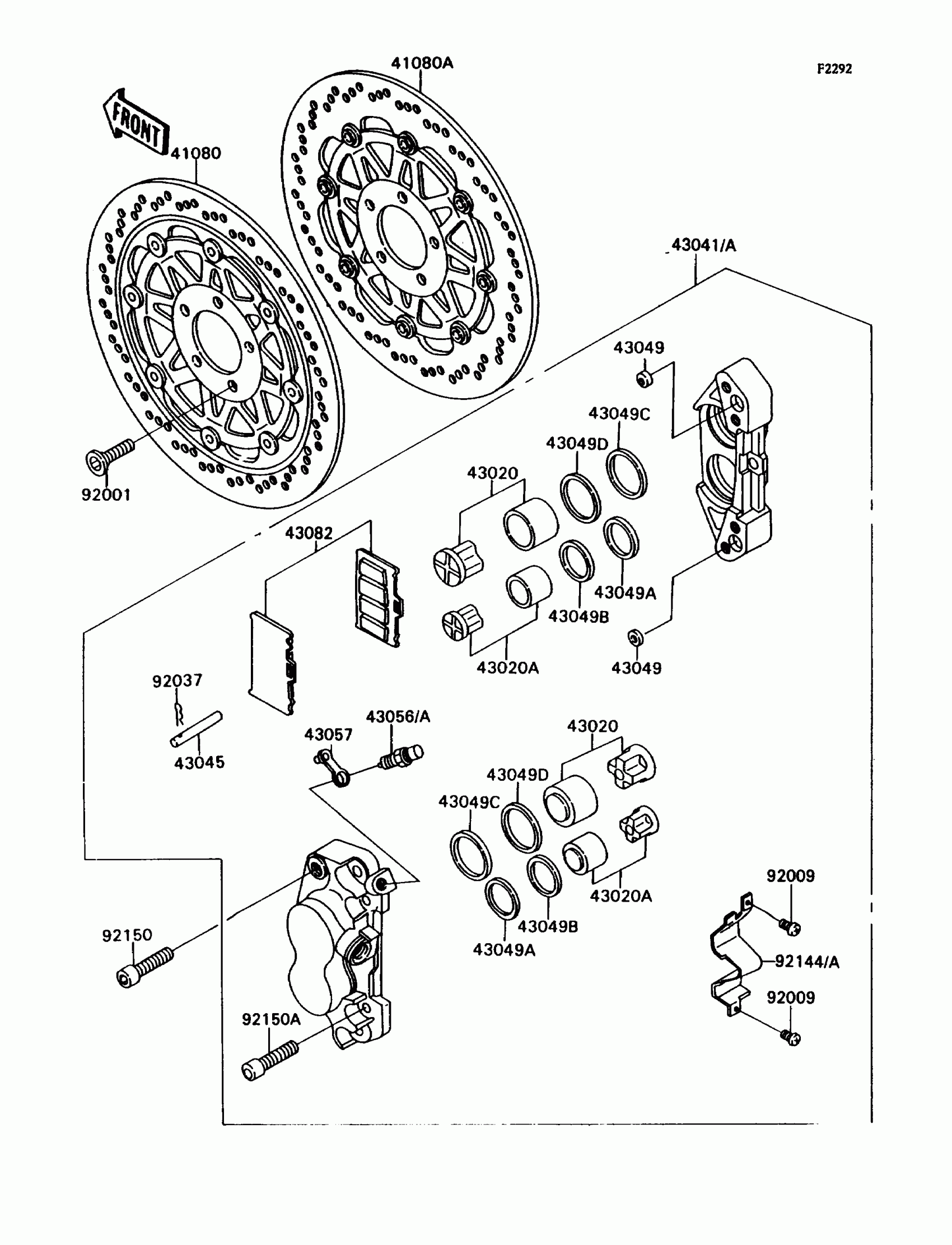

Kawasaki Ninja® ZX™-7 Front Brake Diagram

#

Description
Price

41080

DISC,FR,LH,GOLD NO.1

41080-1284-CN

$539.18

41080A

DISC,FR,RH,GOLD NO.1

41080-1285-CN

$539.18

43020

PISTON-COMP-BRAKE

43020-1085

Unavailable

43020A

PISTON-COMP-BRAKE

43020-1086

$74.26

43041

CALIPER-ASSY,FR,LH,GOLD

43041-1398-DK

$564.67

43041A

CALIPER-ASSY,FR,RH,GOLD

43041-1399-DK

$564.67

43045

SHAFT-CALIPER

43045-007

$6.51

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$6.16

43049A

PACKING,PISTON SEAL

43049-1054

$9.59

43049B

PACKING,PISTON

43049-1055

$11.29

43049C

PACKING,PISTON SEAL

43049-1056

$10.12

43049D

PACKING,PISTON

43049-1057

$12.65

43056

BREATHER

43056-003

$20.11

43056A

BREATHER-BRAKE

43056-1054

$20.11

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1111

$66.19

92001

BOLT,DISC PLATE,8X30

92001-1951

$3.55

92009

SCREW,4X6

92009-1569

$1.90

92037

CLAMP,PAD

43084-003

$4.31

92144

SPRING

92144-1399

$30.58

92144A

SPRING,FR CALIPER,RH

92144-1400

$23.00

92150

BOLT,SOCKET,10X37

92150-1261

$11.13

92150A

BOLT,SOCKET,8X40

92150-1272

$5.10
