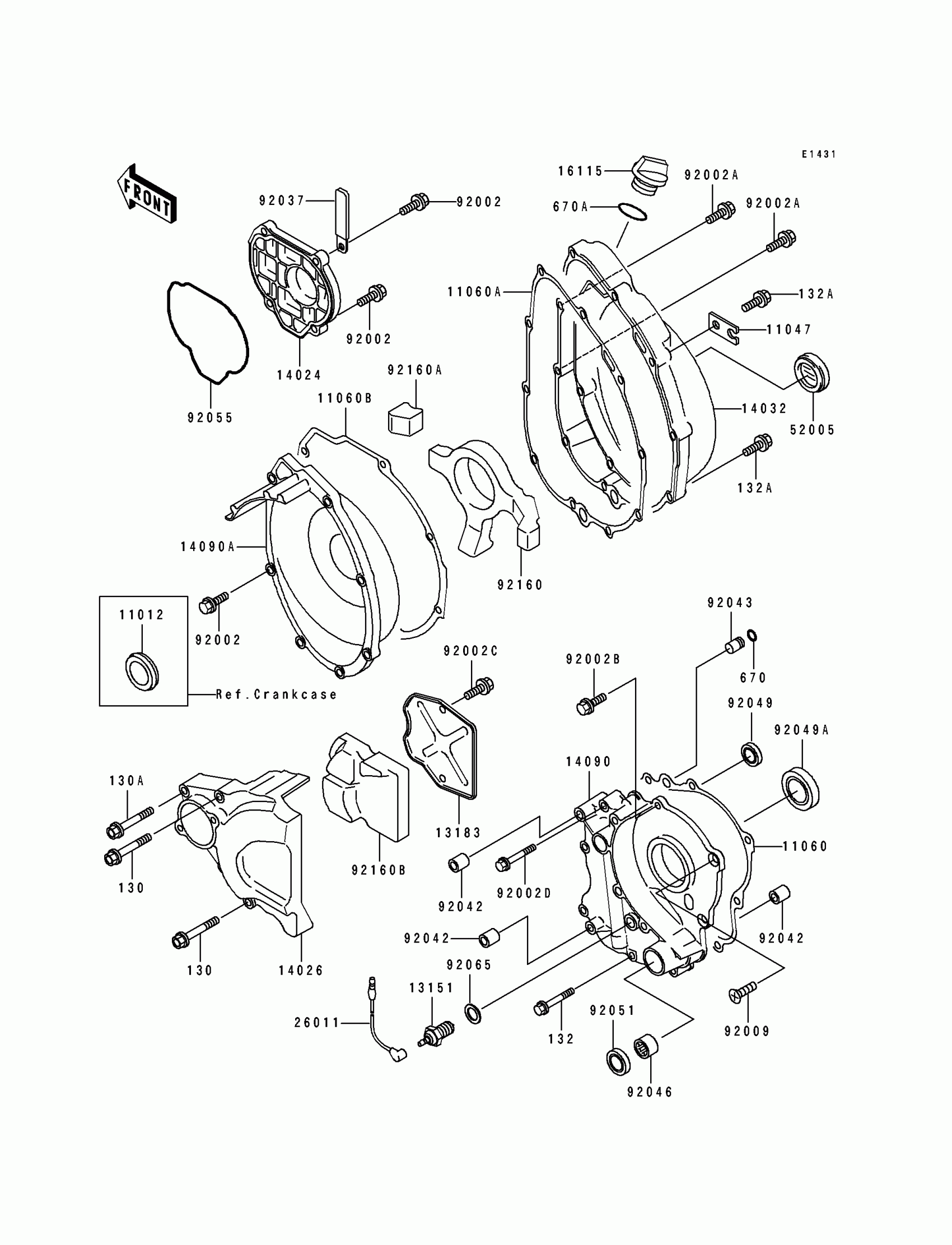

Kawasaki Ninja® ZX™-7 Engine Cover Diagram

#

Description
Price

11012

CAP,LH

11012-1770

$12.49

11047

BRACKET,THROTTLE ADJUST SCREW

11047-1518

Unavailable

11060

GASKET,TRANSMISSION COVER

11060-1079

Unavailable

11060A

GASKET,CLUTCH COVER

11060-1080

Unavailable

11060B

GASKET,BREATHER COVER

11060-1212

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13183

PLATE,CHAIN COVER

13183-1717

Unavailable

14024

COVER,PULSING

14024-1998

Unavailable

14026

COVER-CHAIN

14026-1166

Unavailable

14032

COVER-CLUTCH

14032-1300

Unavailable

14090

COVER,TRANSMISSION

14090-1051

$228.33

14090A

COVER,BREATHER

14090-1052

Unavailable

16115

CAP-OIL FILLER

16115-1053

$9.67

26011

WIRE-LEAD

26011-1510

Unavailable

52005

GAUGE,OIL LEVEL

52005-1057

$23.13

92002

BOLT,6X20

92002-1343

$5.71

92002A

BOLT,6X25

92002-1344

Unavailable

92002B

BOLT,6X16

92002-1439

$3.72

92002C

BOLT,6X10

92002-1449

$3.68

92002D

BOLT,6X30

92002-1622

$7.15

92009

SCREW,6X16

92009-1360

$3.43

92037

CLAMP

92037-1877

$5.71

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92043

PIN

92043-1456

$9.05

92046

BEARING-NEEDLE,HK1312

92046-1148

$14.72

92049

SEAL-OIL,SD-8187

92049-1017

$8.20

92049A

SEAL-OIL,TC32488

92049-1361

$5.40

92051

SEAL-OIL,TB13225.5

92051-005

$6.16

92055

RING-O,PULSING COVER

92055-1494

$15.07

92065

GASKET,10.5X16X1

92065-058

$3.16

92160

DAMPER,SOUND ARRESTER

92160-1260

Unavailable

92160A

DAMPER,SOUND ARRESTER

92160-1282

$14.49

92160B

DAMPER,SOUND ARRESTER

92160-1289

$22.41

130

BOLT-FLANGED,6X35

130J0635

Unavailable

130A

BOLT-FLANGED,6X45,BLACK

130J0645

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132E0630

$5.42

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

670

O RING,5MM

670B1505

$2.49

670A

O RING,20MM

670B2020

$1.12
