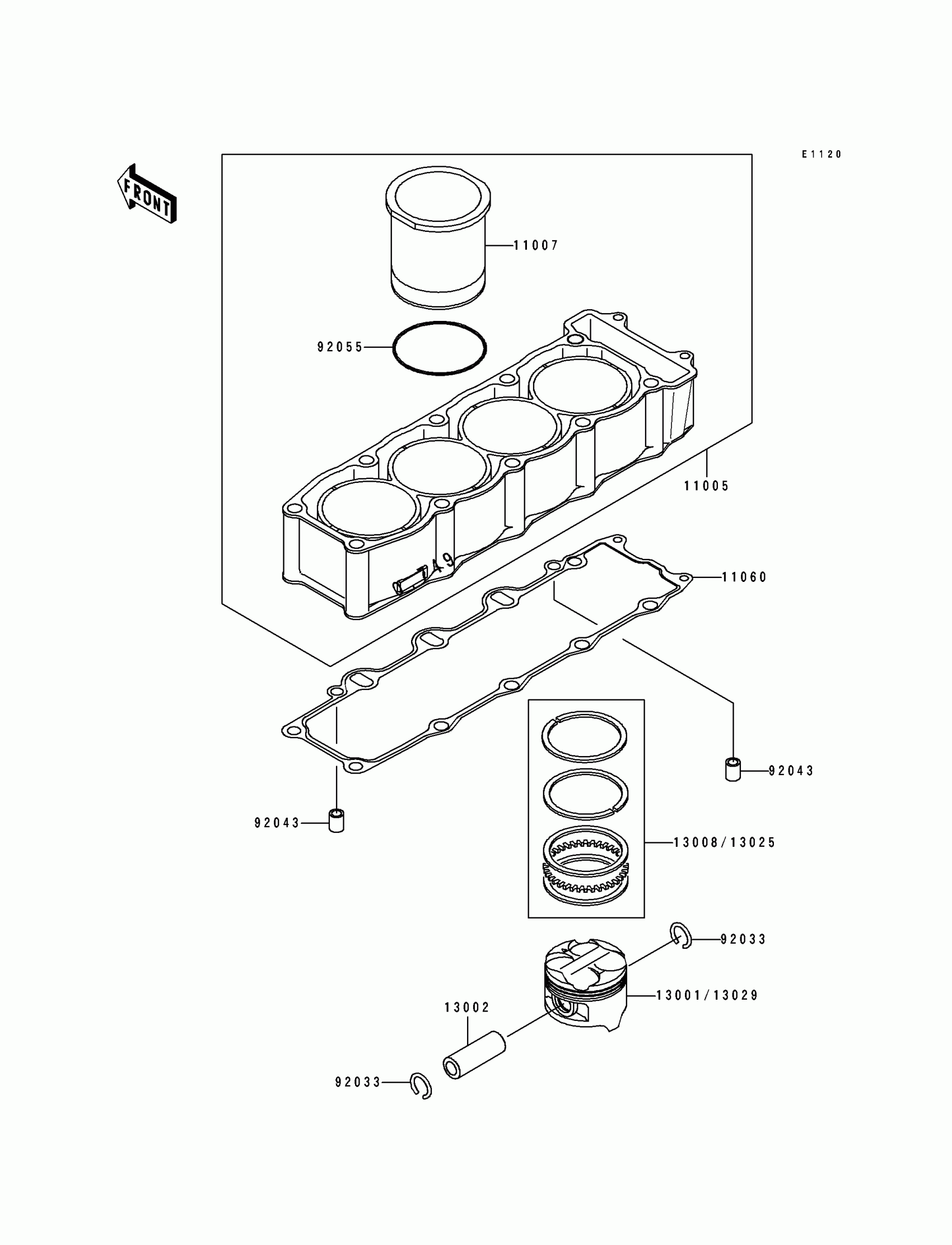

Kawasaki Ninja® ZX™-7 Cylinder/Piston Diagram

#

Description
Price

11005

CYLINDER-ENGINE

11005-1656

Unavailable

11007

LINER-CYLINDER

11007-1115

Unavailable

11060

GASKET,CYLINDER BASE

11060-1093

$60.33

13001

PISTON-ENGINE,STD

13001-1355

Unavailable

13002

PIN-PISTON

13002-1086

$25.14

13008

RING-SET-PISTON,STD

13008-1136

$84.92

13025

RING-SET-PISTON L,O/S 0.50

13025-1113

$70.57

13029

PISTON-ENGINE L,O/S 0.50

13029-1207

Unavailable

92033

RING-SNAP,20.5X1.2

92033-1099

$0.64

92043

PIN,DOWEL,10X14

92043-1037

$0.76

92055

RING-O,76MM

92055-1213

$9.27
