Description

Price

39156

PAD,FUEL TANK,CNT

39156-1612

$42.03

39156A

PAD,FUEL TANK,LH

39156-1613

$16.68

39156B

PAD,FUEL TANK,RH

39156-1614

$16.68

43049

PACKING,TAP VALVE

43049-1075

Unavailable

43058

RING,TAP LEVER

43058-1083

$6.90

51023

TAP-ASSY,FUEL

51023-1237

$135.22

51049

CAP-TANK,FUEL

51049-1120

$116.53

53044

TRIM

53044-1296

$11.49

56030

LABEL,FUEL TAP

56030-1195

Unavailable

92001

BOLT,6X25

92001-1524

$1.78

92009

SCREW,3X8

92009-1386

$4.10

92022

WASHER-PLAIN

92022-183

$3.12

92037

CLAMP,TUBE

92037-010

$3.12

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.97

92075

DAMPER RUBBER,RR FENR

92075-209

$3.72

92077

KNOB,FUEL TAP

92077-1123

$18.83

120

BOLT-SOCKET,5X16

120S0516

Unavailable

220

SCREW-PAN-CROS,4X16

220C0416

Unavailable

702

TUBE-RUBBER,6X520

702A06520

$20.58

92143

COLLAR

92143-1515

$19.42

92151

BOLT,SOCKET,6X35

92151-1835

$1.95

92152

COLLAR

92152-1266

$15.39

92160

DAMPER

92160-1162

$3.97

92200

WASHER,6.5X22X1.6

92200-1087

$3.14

51081F

TANK-COMP-FUEL,GREEN/BLACK

51081-5399-3I

$1,062.25

51081G

TANK-COMP-FUEL,YELLOW/BLACK

51081-5400-4I

Unavailable

51081H

TANK-COMP-FUEL,BLUE/BLUE

51081-5401-5I

Unavailable

51081I

TANK-COMP-FUEL,C.L.BLUE

51081-5402-E1

$1,017.03

51081J

TANK-COMP-FUEL,GREEN/BLACK

51081-5408-3I

Unavailable

51081K

TANK-COMP-FUEL,YELLOW/BLACK

51081-5410-4I

Unavailable

51081L

TANK-COMP-FUEL,C.L.BLUE

51081-5413-E1

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18

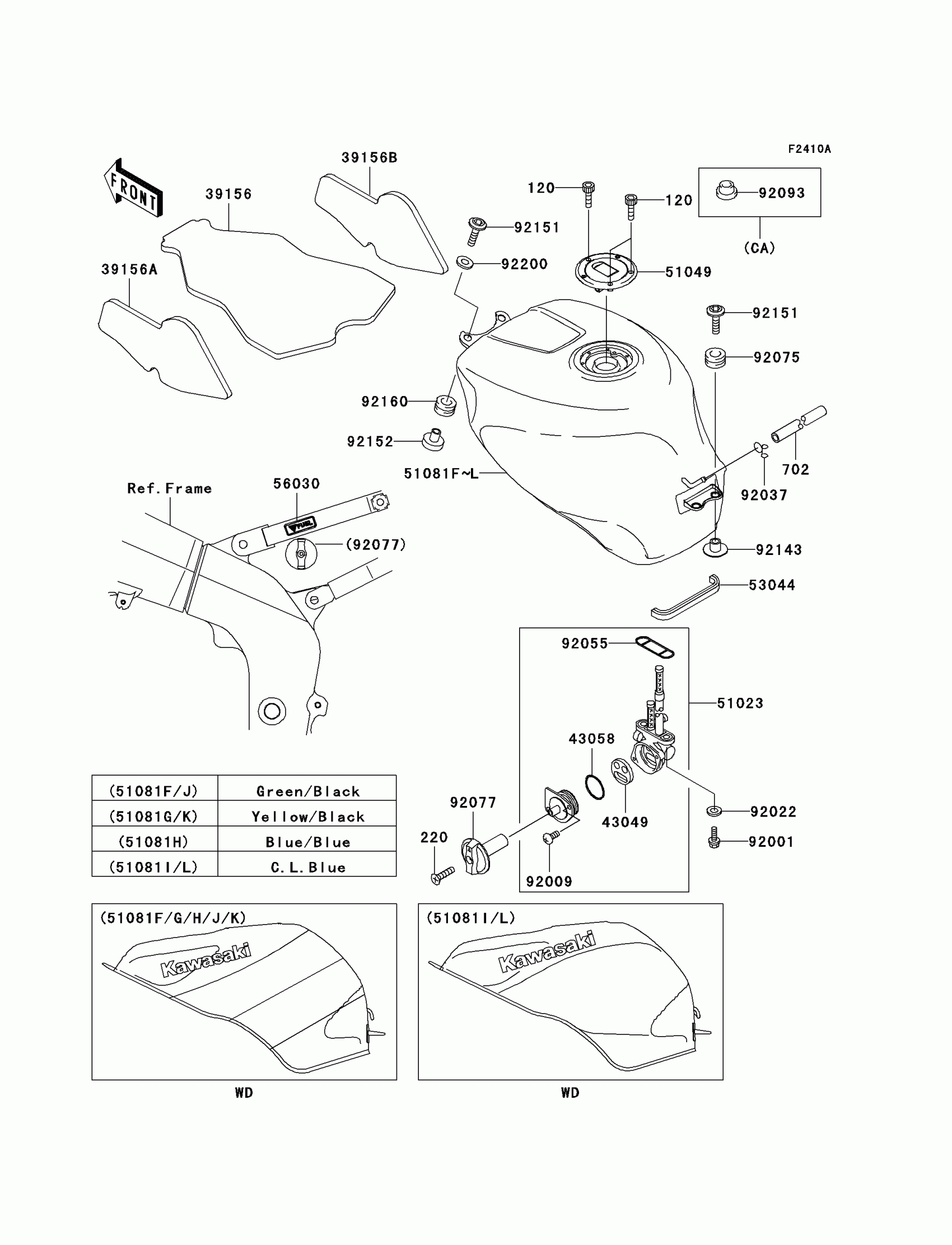

Kawasaki Ninja® ZX™-6R Fuel Tank(ZX600-J2) Diagram

PACKING,TAP VALVE

LABEL,FUEL TAP

BOLT-SOCKET,5X16

SCREW-PAN-CROS,4X16

TANK-COMP-FUEL,YELLOW/BLACK

TANK-COMP-FUEL,BLUE/BLUE

TANK-COMP-FUEL,GREEN/BLACK

TANK-COMP-FUEL,YELLOW/BLACK

TANK-COMP-FUEL,C.L.BLUE
