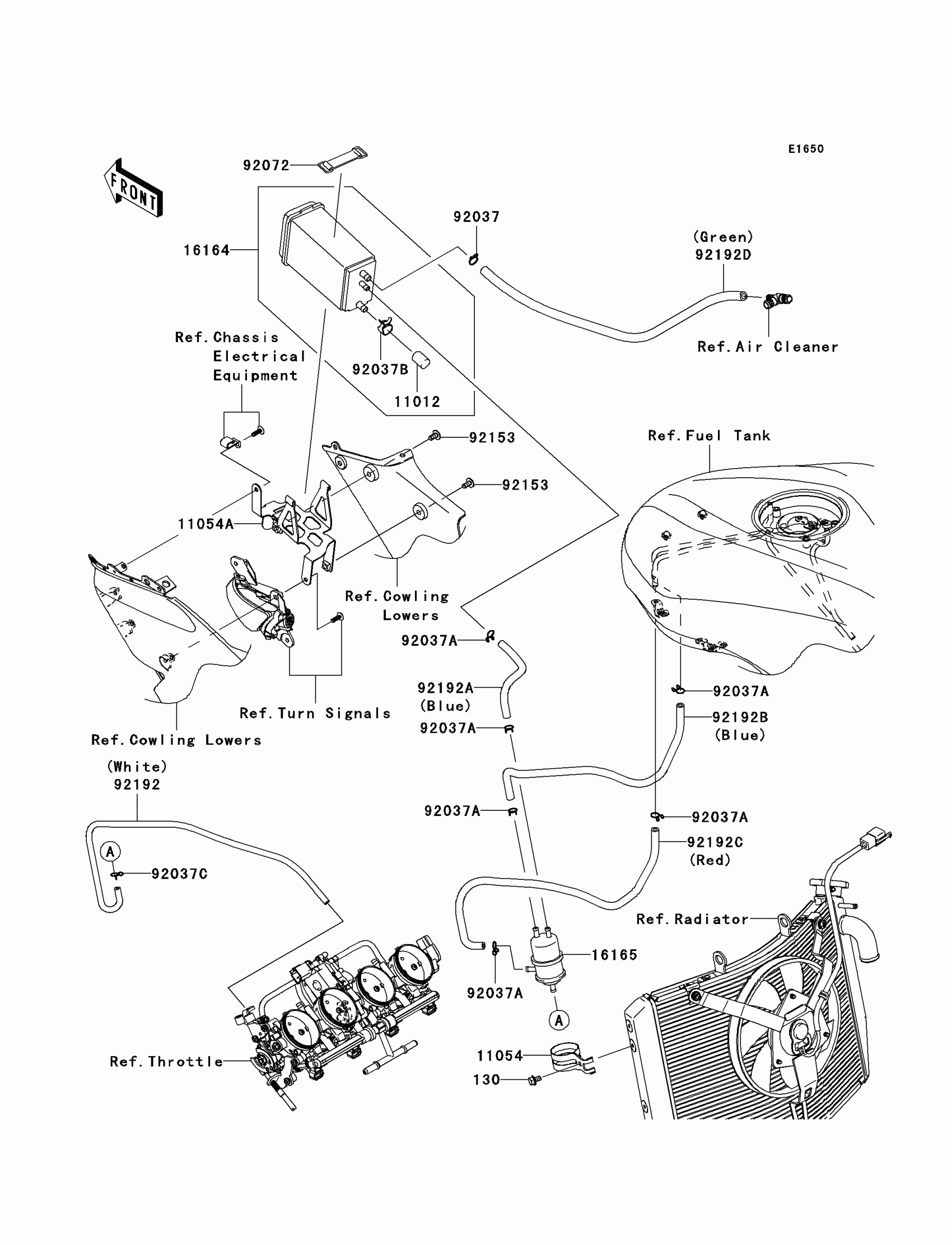

Kawasaki Ninja® ZX™-6R Fuel Evaporative System(P7F)(CA) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BA0610

$1.12

11012

CAP,CANISTER

11012-1388

$8.31

11054

BRACKET,SEPARATOR

11054-0012

$10.58

11054A

BRACKET,CANISTER

11054-0682

$57.19

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$81.73

92037

CLAMP-HOSE

92037-1104

$1.27

92037A

CLAMP,TUBE

92037-147

$5.84

92037B

CLAMP,CANISTER

92037-1512

$5.71

92037C

CLAMP

92037-1712

$3.97

92072

BAND,L=50

92072-1419

$12.72

92153

BOLT,SOCKET,6X12

92153-1275

$2.19

92192

TUBE,SEP.-THROBO,WHITE

92192-0278

$13.05

92192A

TUBE,SEP.-CANISTER,BLUE

92192-0368

$8.73

92192B

TUBE,TANK-SEP.,BLUE

92192-0369

Unavailable

92192C

TUBE,SEP.-TANK,RED

92192-0370

$16.20

92192D

TUBE,CANISTER-ASV.GREEN

92192-0371

$14.31
