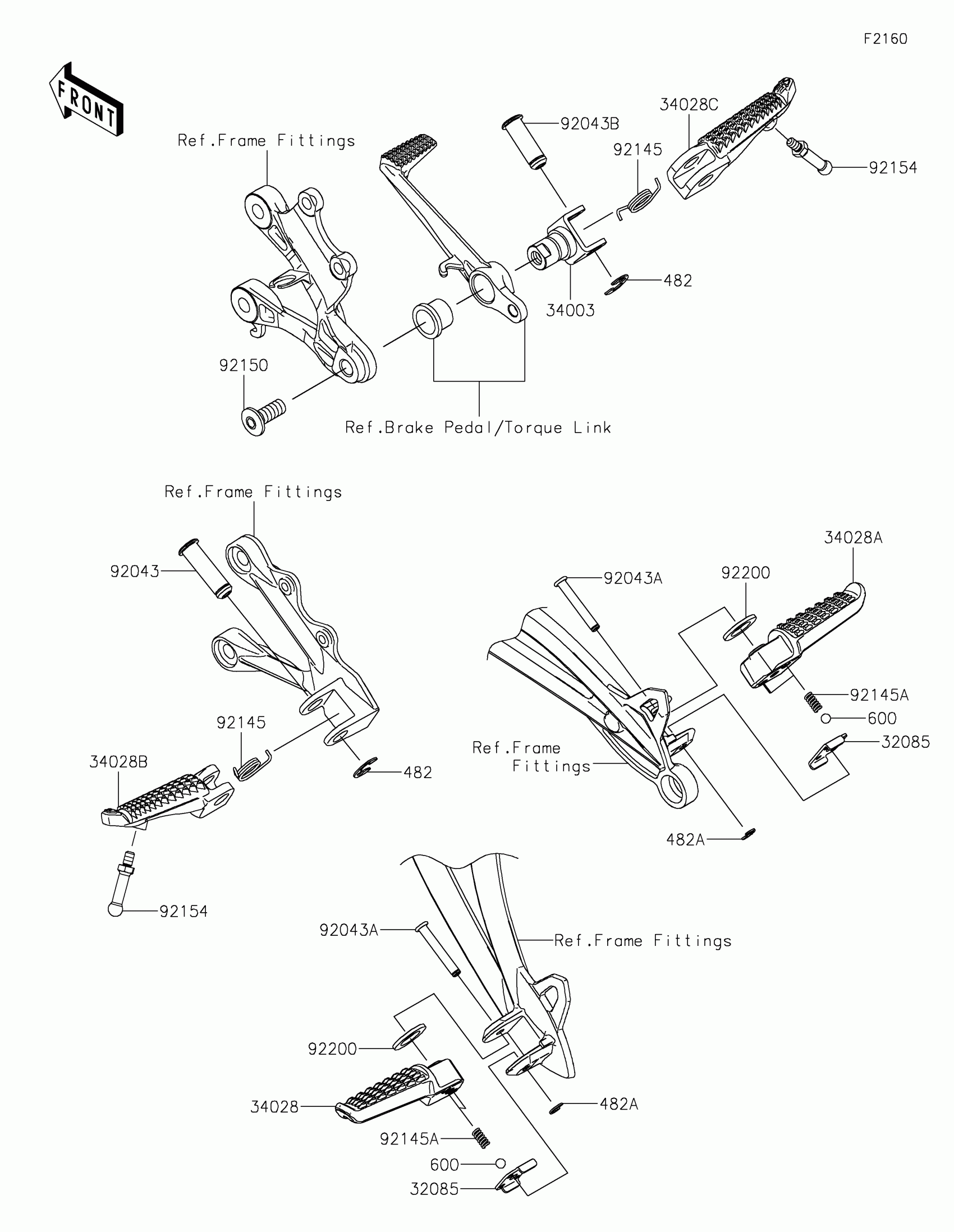

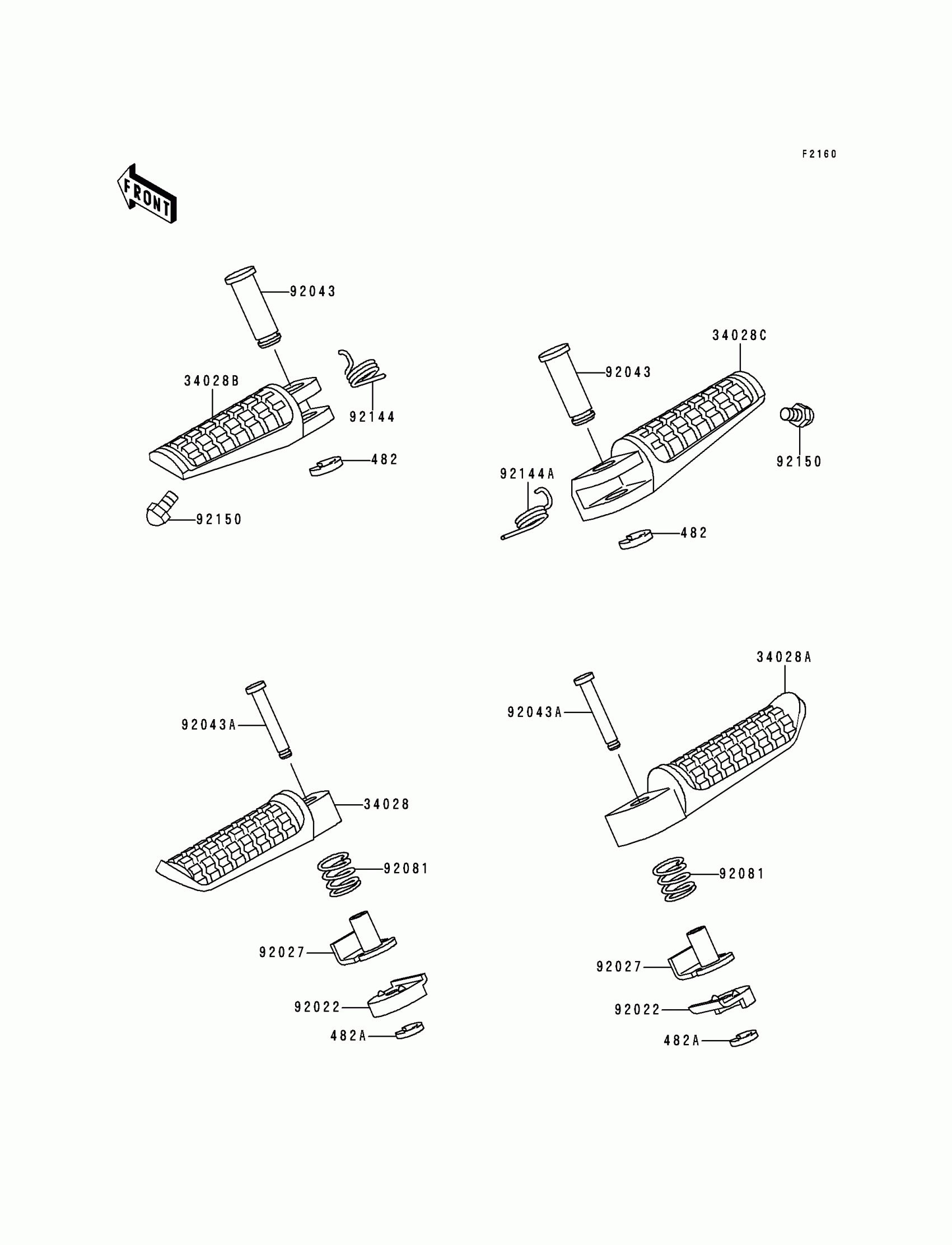

Kawasaki Ninja® ZX™-6R Footrests Diagram

Description

Price

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.04

34028

STEP,RR,LH

34028-1191

$59.59

34028A

STEP,RR,RH

34028-1192

$67.74

34028B

STEP,FR,LH

34028-1338

$53.18

34028C

STEP,FR,RH

34028-1339

$45.94

92022

WASHER,STEP,RR

92022-1507

$4.61

92027

COLLAR,STEP

92027-1732

$10.73

92043

PIN,12X37

92043-1144

Unavailable

92043A

PIN,6X38.5

92043-1328

$4.61

92081

SPRING,STEP,RR

92081-1612

$3.81

92144

SPRING,STEP RETURN

92144-1567

$4.88

92144A

SPRING,STEP RETURN

92144-1568

$4.88

92150

BOLT,BANK SENSOR

92150-1114

$10.93
