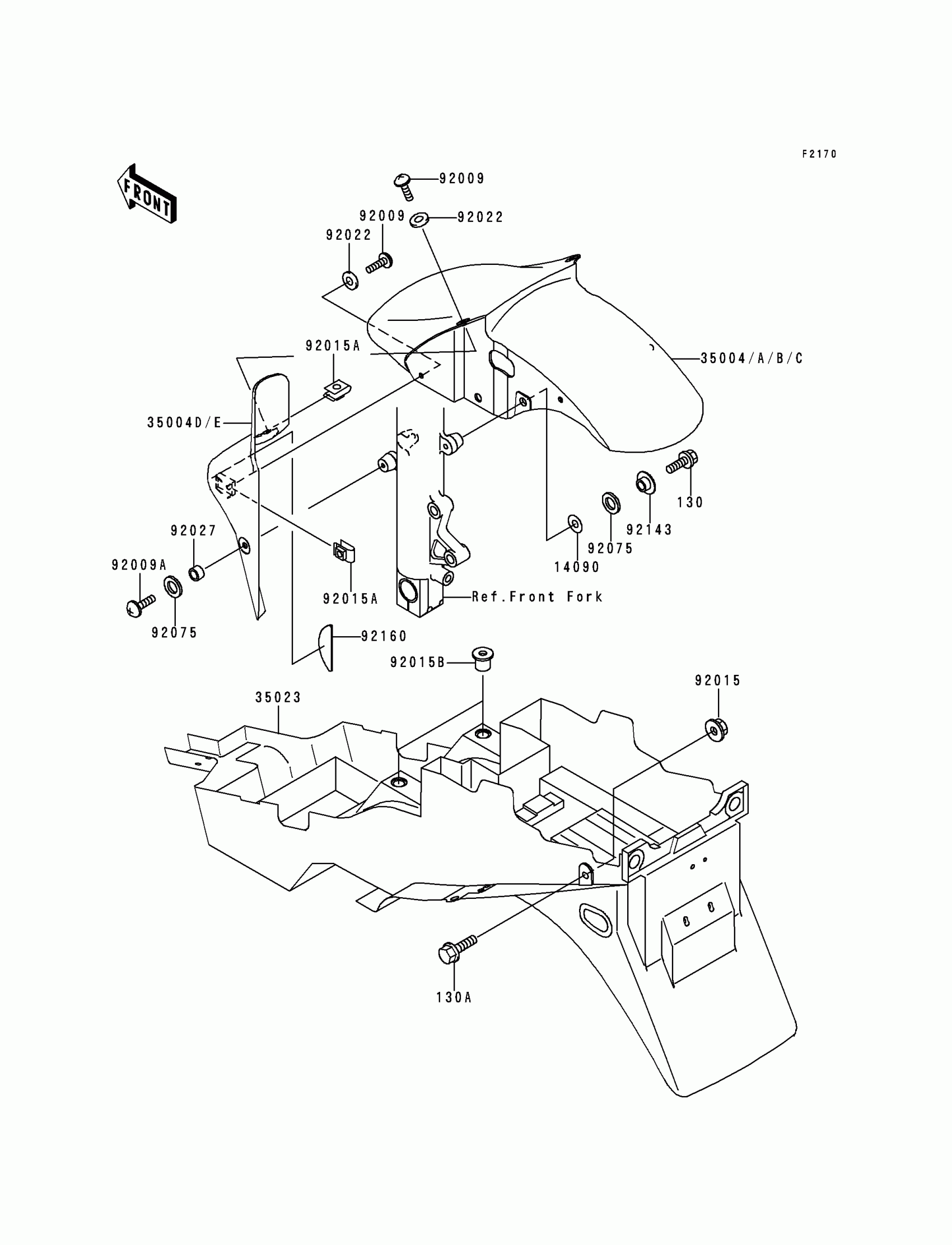

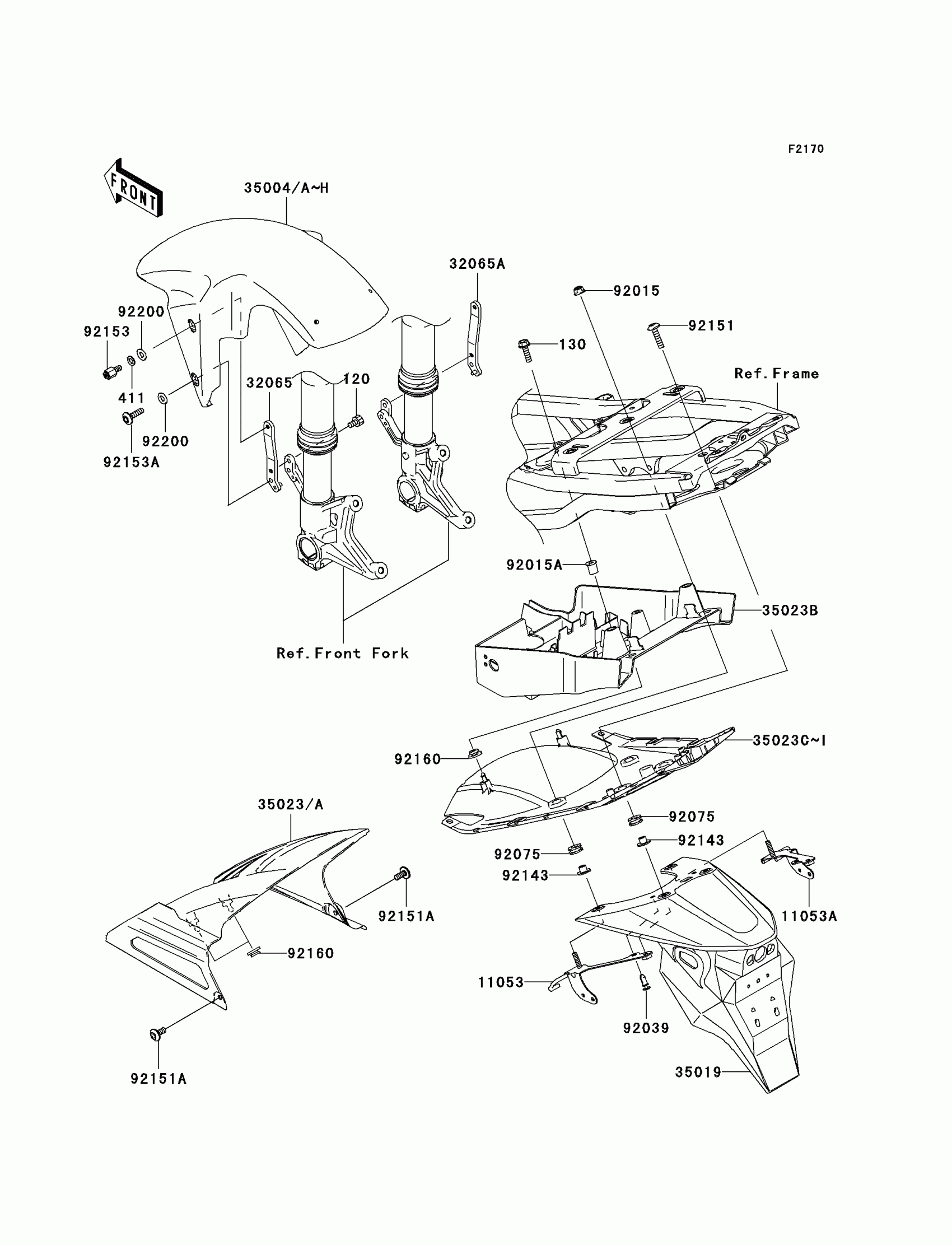

Kawasaki Ninja® ZX™-6R Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X16

130H0616

Unavailable

130A

BOLT-FLANGED

130J0620

Unavailable

14090

COVER

14090-1505

Unavailable

35004B

FENDER-FRONT,CNT,BLACK MICA

35004-1367-20

Unavailable

35004C

FENDER-FRONT,CNT,L.GREEN

35004-1367-7F

Unavailable

35004D

FENDER-FRONT,SIDE,LH,GRAY

35004-1390-E4

$46.03

35004E

FENDER-FRONT,SIDE,RH,GRAY

35004-1391-E4

$46.03

35023

FENDER-REAR

35023-1482

$192.82

92009

SCREW,5X16,BLACK

92009-1654

$2.51

92009A

SCREW,6X14

92009-1662

$3.12

92015

NUT,6MM

92015-1321

$11.86

92015A

NUT,5MM

92015-1573

$5.25

92015B

NUT

92015-1700

$6.82

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92027

COLLAR

92027-103

$2.78

92075

DAMPER

92075-1564

$4.35

92143

COLLAR,L=7.4

92143-1019

$3.75

92160

DAMPER

92160-1961

$4.32

35004

FENDER-FRONT,CNT,F.RED

35004-1367-B1

Unavailable
