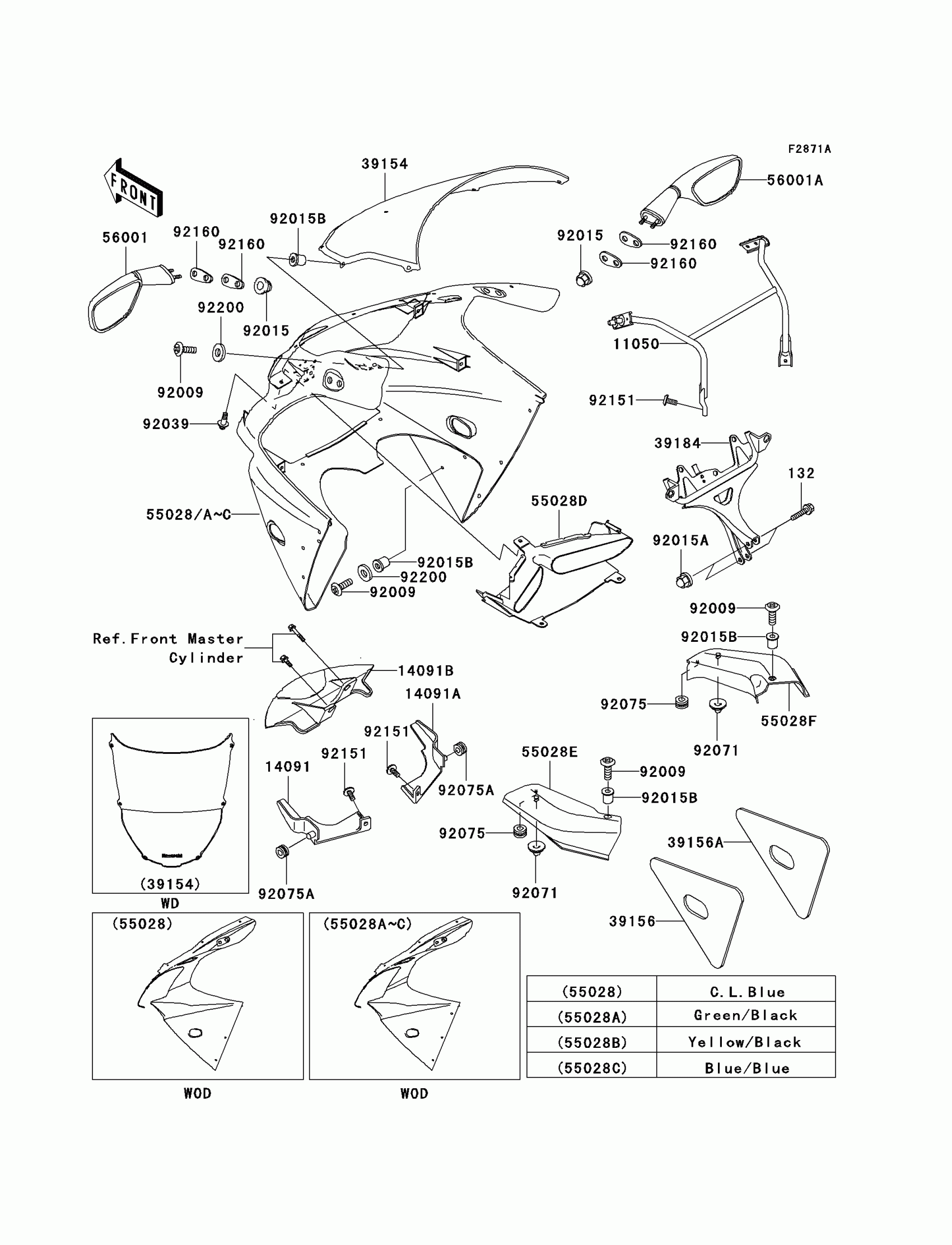

Kawasaki Ninja® ZX™-6R Cowling(ZX600-J2) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,8X30

132J0830

Unavailable

11050

BRACKET,MIRROR

11050-1640

$137.32

14091

COVER,RADIATOR,LH

14091-1170

$9.81

14091A

COVER,RADIATOR,RH

14091-1171

$9.81

14091B

COVER,UNDER BRACKET

14091-1271

$30.25

39154

WINDSHIELD

39154-5013

$236.38

39156

PAD,UPP COWLING,LH

39156-1622

$13.31

39156A

PAD,UPP COWLING,RH

39156-1623

$13.31

39184

BRACKET-ASSY,MAIN

39184-1085

$346.98

55028A

COWLING,UPP,GREEN/BLACK

55028-1390-3I

$874.52

55028B

COWLING,UPP,YELLOW/BLACK

55028-1390-4I

$766.37

55028D

COWLING,DUCT,M.F.C.GRAY

55028-1391-3L

$145.27

55028E

COWLING,INNER,LH

55028-1394

$94.06

55028F

COWLING,INNER,RH

55028-1395

$88.04

56001

MIRROR-ASSY,LH

56001-1483

$128.69

56001A

MIRROR-ASSY,RH

56001-1484

Unavailable

92009

SCREW,5X16

92009-1909

$1.71

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.69

92015A

NUT,CAP,8MM,BLACK

92015-1174

$3.97

92015B

NUT,WELL,5MM

92015-1757

$5.81

92039

RIVET

92039-1227

$1.54

92071

GROMMET

92071-1222

$5.85

92075

DAMPER

92075-1067

$3.72

92075A

DAMPER

92075-1912

$5.07

92151

BOLT,SOCKET,6X14

92151-1654

$1.56

92160

DAMPER,MIRROR

92160-1089

$6.06

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.25

55028

COWLING,UPP,C.L.BLUE

55028-1390-E1

$874.52

55028C

COWLING,UPP,BLUE/BLUE

55028-1390-5I

Unavailable
