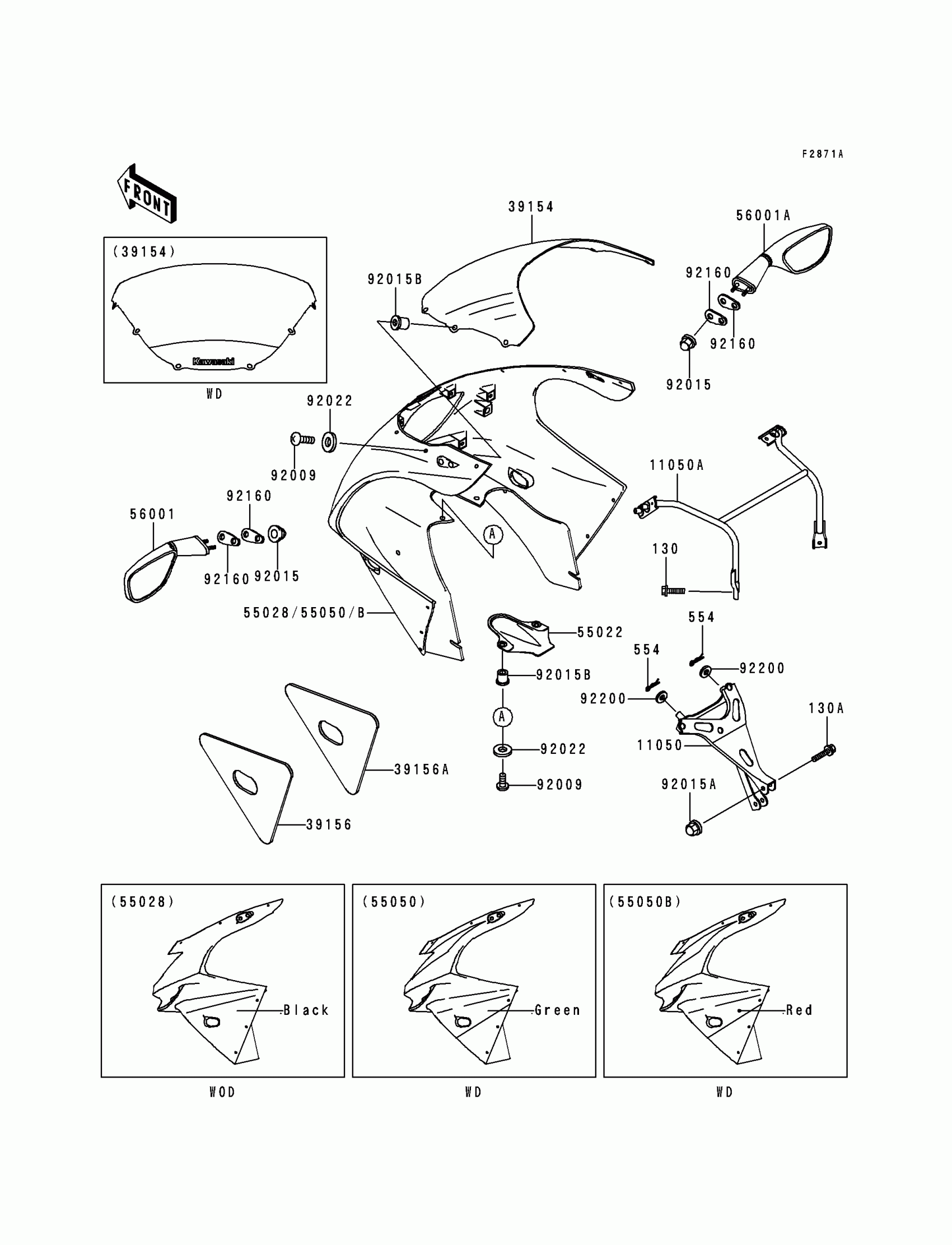

Kawasaki Ninja® ZX™-6R Cowling(ZX600-G2) Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130A

BOLT-FLANGED,8X30

130J0830

Unavailable

554

PIN-SNAP,12MM

554A1200

Unavailable

11050

BRACKET,UPP COWLING

11050-1437

$185.85

11050A

BRACKET,MIRROR

11050-1640

$137.32

39154

WINDSHIELD

39154-5010

Unavailable

39156

PAD,UPP COWLING,LH

39156-1622

$13.31

39156A

PAD,UPP COWLING,RH

39156-1623

$13.31

55022

COVER-HEAD LAMP

55022-1082

Unavailable

55028

COWLING,UPP,P.P.BLACK MICA

55028-1365-20

Unavailable

55050

COWLING-ASSY.,UPP,L.GREEN

55050-5253-7F

Unavailable

56001

MIRROR-ASSY,LH

56001-1483

$128.69

56001A

MIRROR-ASSY,RH

56001-1484

Unavailable

92009

SCREW,5X16,BLACK

92009-1654

$2.51

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.69

92015A

NUT,CAP,8MM,BLACK

92015-1174

$3.97

92015B

NUT,WELL,5MM

92015-1757

$5.81

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92160

DAMPER,MIRROR

92160-1089

$6.06

92200

WASHER,12.5X22X1.2

92200-1174

$3.29

55050B

COWLING-ASSY.,UPP,F.RED

55050-5260-B1

Unavailable
