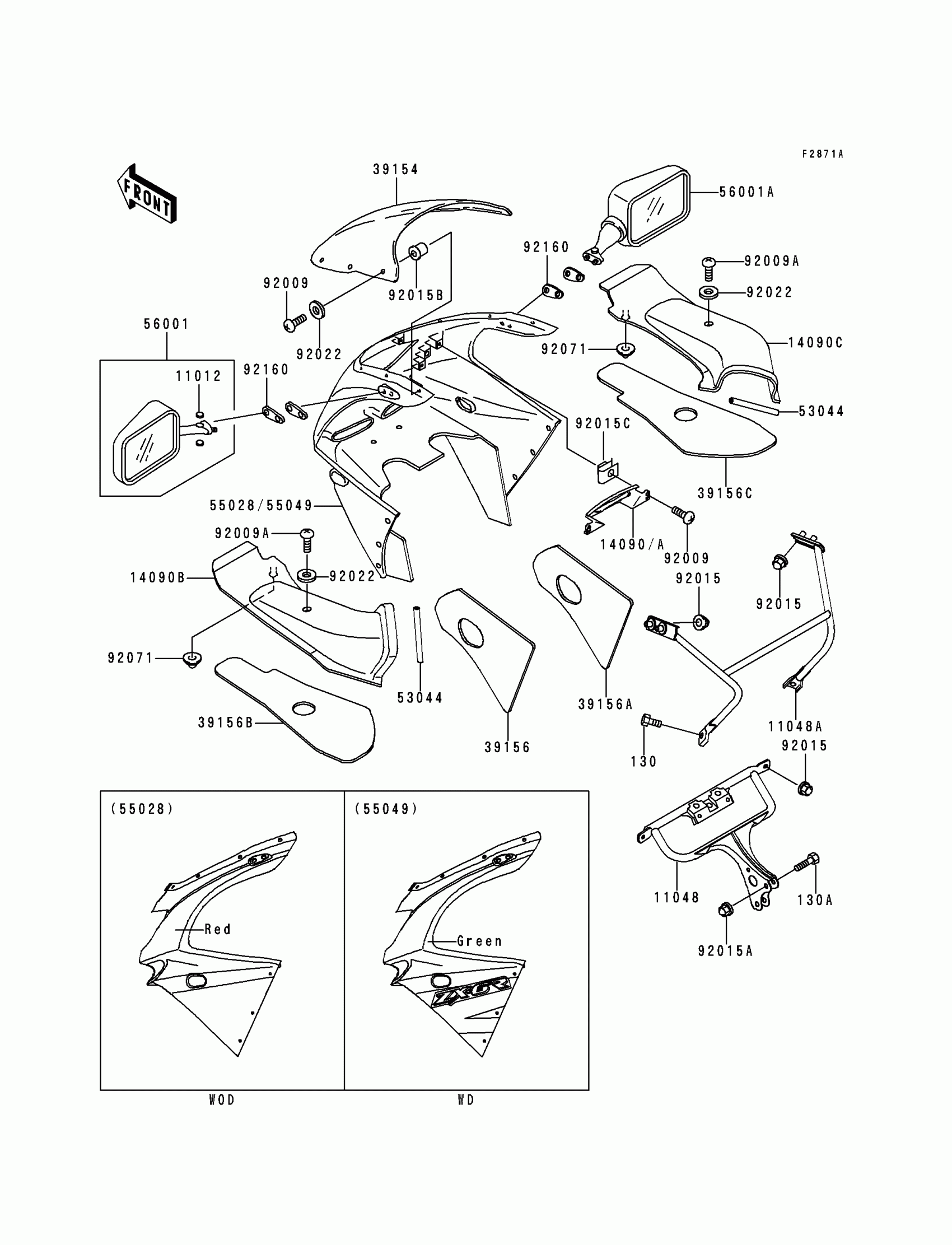

Kawasaki Ninja® ZX™-6R Cowling(ZX600-F2) Diagram

#

Description
Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130A

BOLT-FLANGED,8X30

130J0830

Unavailable

11012

CAP,MIRROR

11012-1818

$2.75

11048

BRACKET,UPP COWLING

11048-1866

Unavailable

11048A

BRACKET,MIRROR

11048-1867

$149.39

14090

COVER,POSITION LAMP,F.RED

14090-1404-B1

Unavailable

14090A

COVER,POSITION LAMP,L.GREEN

14090-1404-7F

$42.66

14090B

COVER,AIR DUCT,LH

14090-1542

$56.17

14090C

COVER,AIR DUCT,RH

14090-1543

Unavailable

39154

WINDSHIELD

39154-5007

Unavailable

39156

PAD,UPP COWLING,LH

39156-1435

Unavailable

39156A

PAD,UPP COWLING,RH

39156-1436

Unavailable

39156B

PAD,AIR DUCT COVER,LH

39156-1449

Unavailable

39156C

PAD,AIR DUCT COVER,RH

39156-1450

Unavailable

53044

TRIM,AIR DUCT COVER

53044-1265

$11.49

55028

COWLING,UPP,F.RED

55028-1330-B1

Unavailable

55049

COWLING.,UPP,L.GREEN

55049-5464-7F

Unavailable

56001

MIRROR-ASSY,LH,EBONY

56001-1376-6C

Unavailable

56001A

MIRROR-ASSY,RH,EBONY

56001-1377-6C

$85.41

92009

SCREW,5X16,BLACK

92009-1654

$2.51

92009A

SCREW,5X25

92009-1657

$3.49

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.69

92015A

NUT,CAP,8MM,BLACK

92015-1174

$3.97

92015B

NUT,WELL,5MM

92015-1757

$5.81

92015C

NUT,5MM

92015-1798

$5.45

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92071

GROMMET

92071-1222

$5.85

92160

DAMPER,MIRROR

92160-1089

$6.06
