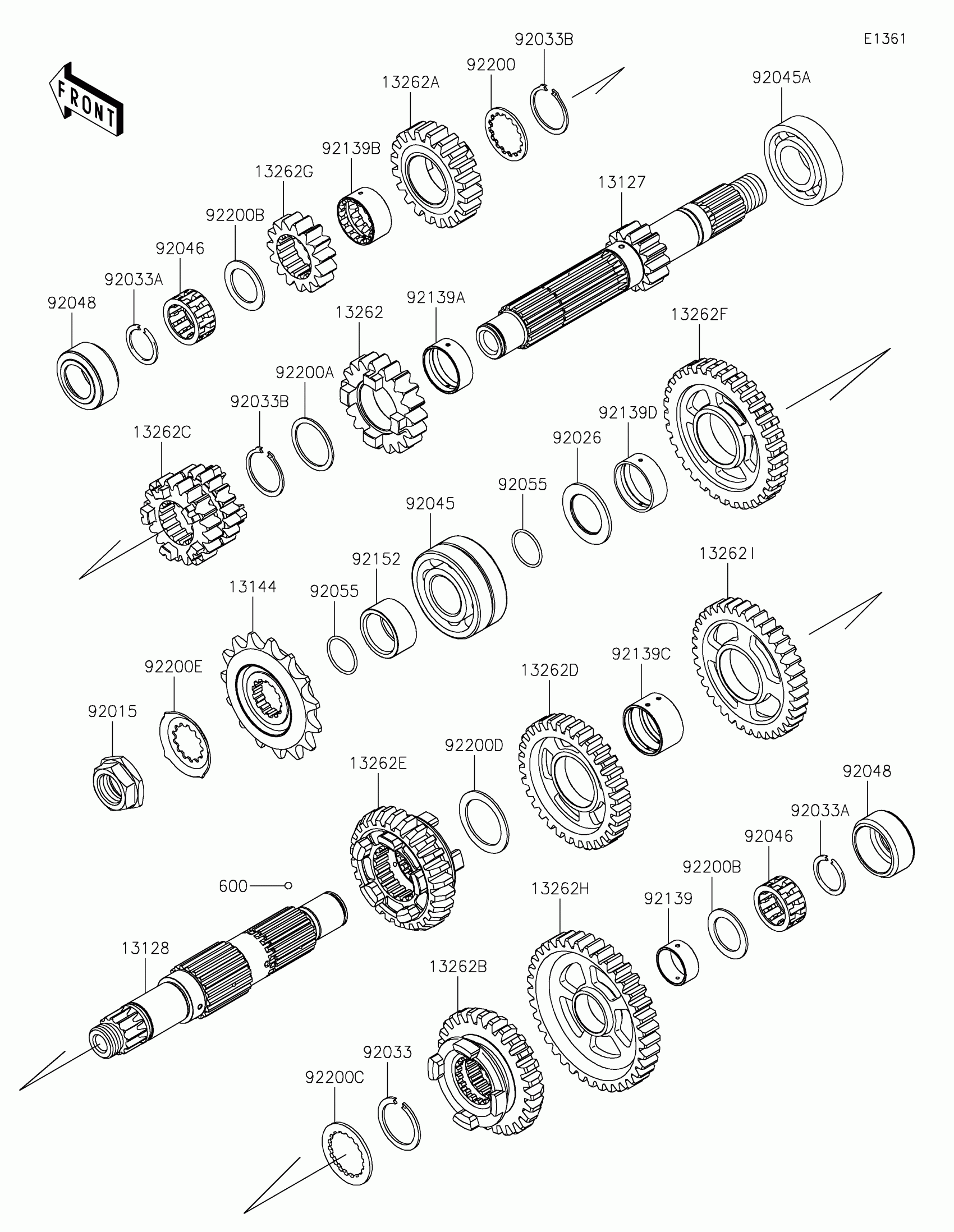

Kawasaki Ninja ZX-6R (CA) Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,13T

13127-0647

$244.56

13128

SHAFT-TRANSMISSION OUTPUT

13128-0031

$242.41

13144

SPROCKET-OUTPUT,15T,#520

13144-0587

$47.83

13262

GEAR,INPUT 5TH,19T

13262-0374

$130.83

13262A

GEAR,INPUT 6TH,20T

13262-0375

$150.50

13262B

GEAR,OUTPUT 5TH,27T

13262-0380

$150.50

13262C

GEAR,INPUT 3RD&4TH,20T&20T

13262-0506

$194.69

13262D

GEAR,OUTPUT 4TH,32T

13262-0510

$172.37

13262E

GEAR,OUTPUT 6TH,26T

13262-0582

$150.50

13262F

GEAR,OUTPUT 2ND,33T

13262-0743

$172.37

13262G

GEAR,INPUT 2ND,15T

13262-0950

$131.21

13262H

GEAR,OUTPUT LOW,37T

13262-0951

$172.63

13262I

GEAR,OUTPUT 3RD,37T

13262-0963

$172.63

92015

NUT,20MM

92015-1963

$11.31

92026

SPACER,25.3X39X2.0

92026-1529

$10.49

92033

RING-SNAP,26.9X34X1.5

92033-0047

$5.27

92033A

RING-SNAP,20X25.5X1.2

92033-025

$3.78

92033B

RING-SNAP,25.9X30.6X1.2

92033-1037

$3.54

92045

BEARING-BALL,DAC2557NSSH

92045-0003

$107.07

92045A

BEARING-BALL,25X52X15

92045-0058

$28.89

92046

BEARING-NEEDLE

92046-1291

$18.63

92048

RACE,30X38X17.3

92048-0007

$24.44

92055

RING-O,21.5X1.5

92055-1293

$3.81

92139

BUSHING,GEAR,LOW OUT

92139-0038

$12.63

92139A

BUSHING,GEAR,5TH IN

92139-0161

$13.69

92139B

BUSHING,GEAR,6TH IN

92139-0162

$19.25

92139C

BUSHING,GEAR,3RD/4TH OUT

92139-0163

$19.25

92139D

BUSHING,GEAR,2ND OUT

92139-0164

$13.69

92152

COLLAR,25X32X15.7

92152-0444

$15.36

92200

WASHER,28.3X34.0X1.6

92200-0050

$3.71

92200A

WASHER,28.1X34.0X1.2

92200-0051

$3.71

92200B

WASHER,22.1X32.0X1.4

92200-0138

$3.29

92200C

WASHER,TOOTHED,28X40X2

92200-1277

$9.12

92200D

WASHER,29.9X40X1.5

92200-1278

$11.49

92200E

WASHER

92200-1720

$2.75

600

BALL-STEEL,5/32

600A0500

$0.68
