2023 Kawasaki Ninja ZX-6R (CA) Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2023 Kawasaki Ninja ZX-6R (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

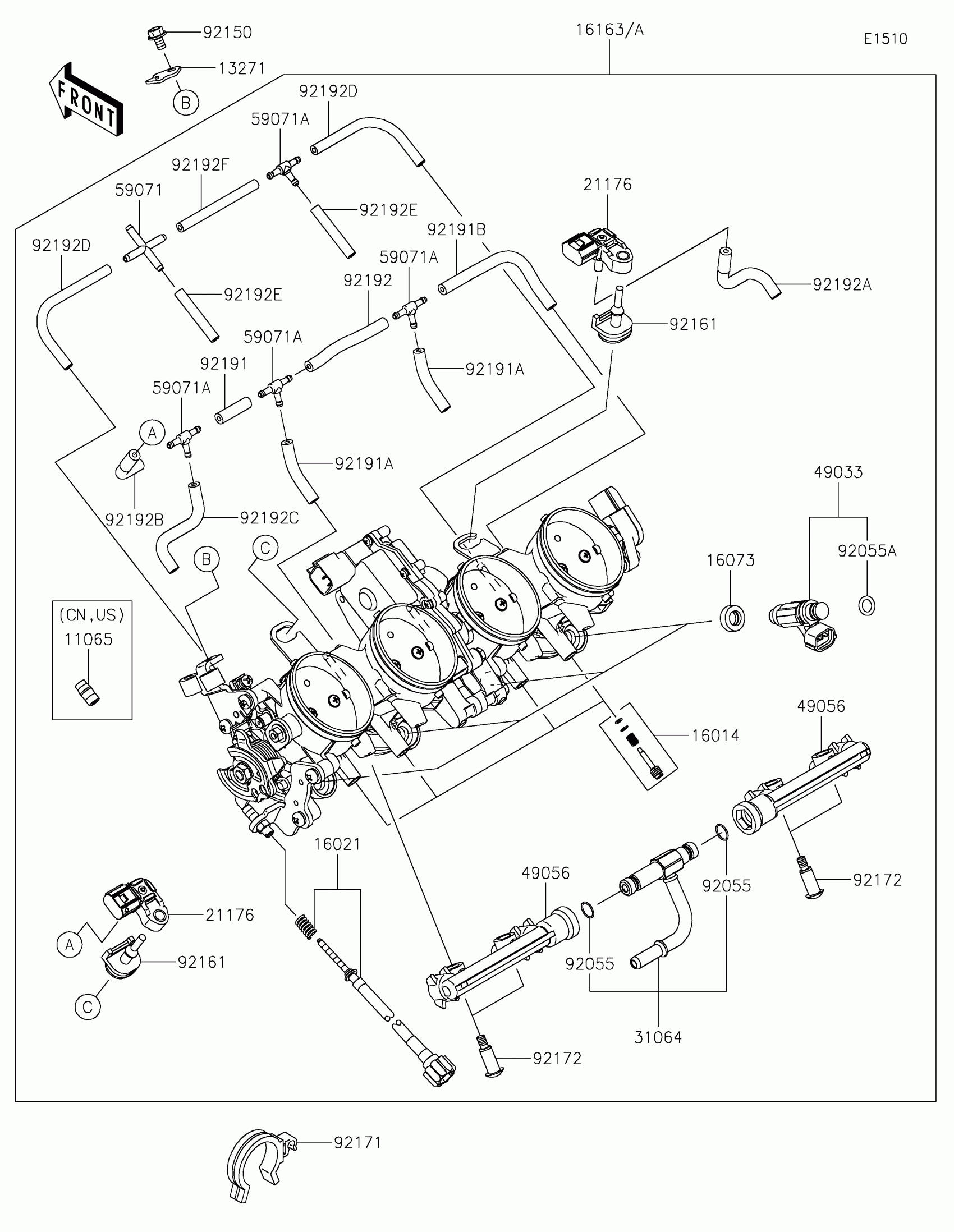

2023 Kawasaki Ninja ZX-6R (CA) Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13271

PLATE

13271-0559

1

$2.68

In stock

16014

SCREW-PILOT AIR

16014-0002

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-0028

1
Out of stock

16073

INSULATOR

16073-3707

1
Out of stock

21176

SENSOR,PRESSURE

21176-0111

1
Out of stock

31064

PIPE-COMP

31064-0622

1
Out of stock

49033

NOZZLE-INJECTION

49033-0012

1
Out of stock

49056

PIPE-INJECTION

49056-0014

1
Out of stock

92055

RING-O

92055-0064

1
Out of stock

92055A

RING-O,INJECTION NOZZLE

92055-1622

1
Out of stock

92150

BOLT,5X8

92150-1406

1
Out of stock

92161

DAMPER

92161-0673

1
Out of stock

92171

CLAMP

92171-0359

1

$9.76

In stock

92172

SCREW,PIPE INJECTION

92172-0064

1
Out of stock

92191

TUBE,3X7X25

92191-0020

1
Out of stock

92191A

TUBE,3X7X40

92191-0022

1
Out of stock

92191B

TUBE,3X7X100

92191-0023

1
Out of stock

92192

TUBE,3X7X72

92192-0739

1
Out of stock

92192A

TUBE,THROBO RH-SENSOR

92192-0840

1
Out of stock

92192B

TUBE,THROBO LH-JOINT

92192-0841

1
Out of stock

92192C

TUBE,SENSOR-JOINT

92192-0842

1
Out of stock
