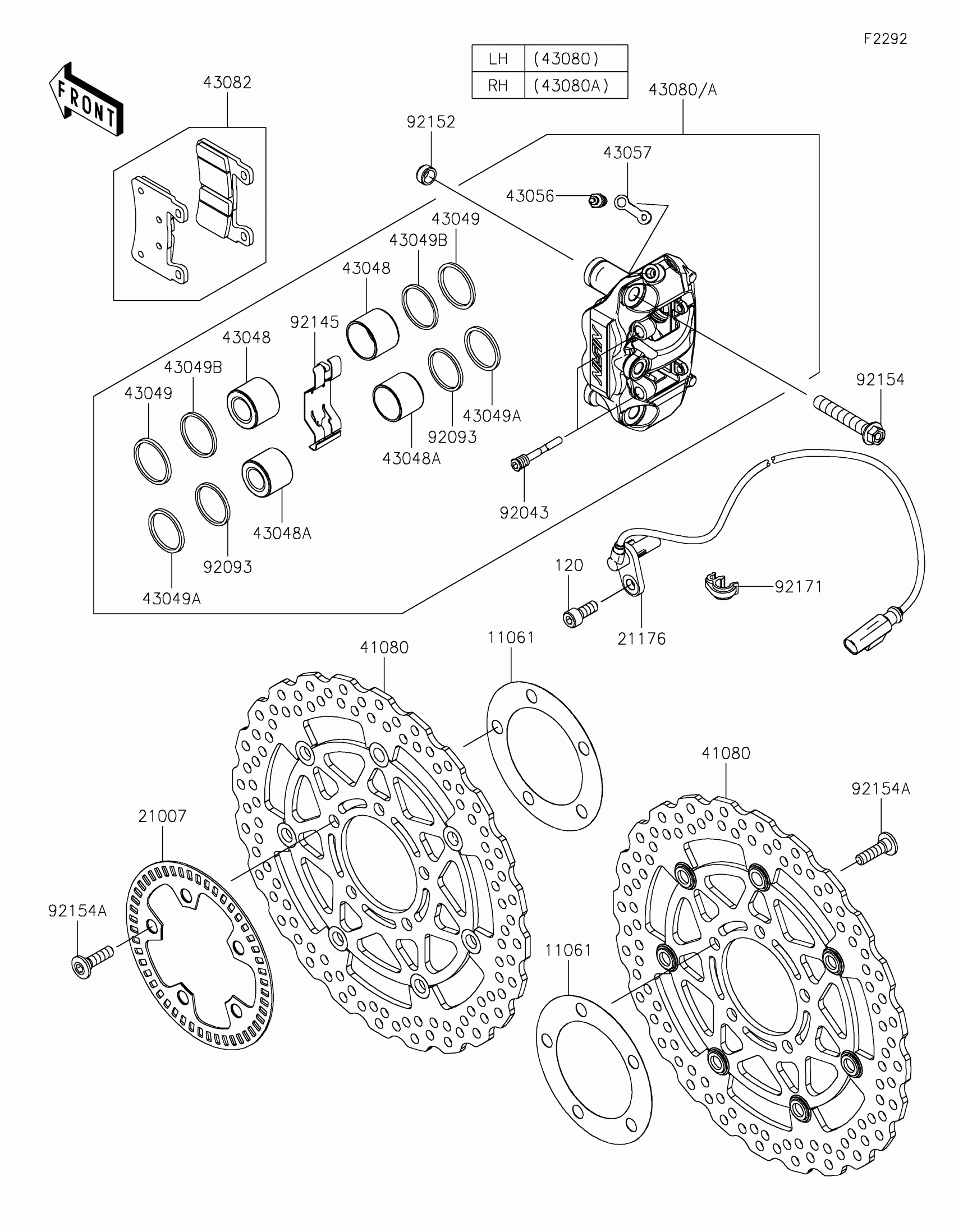

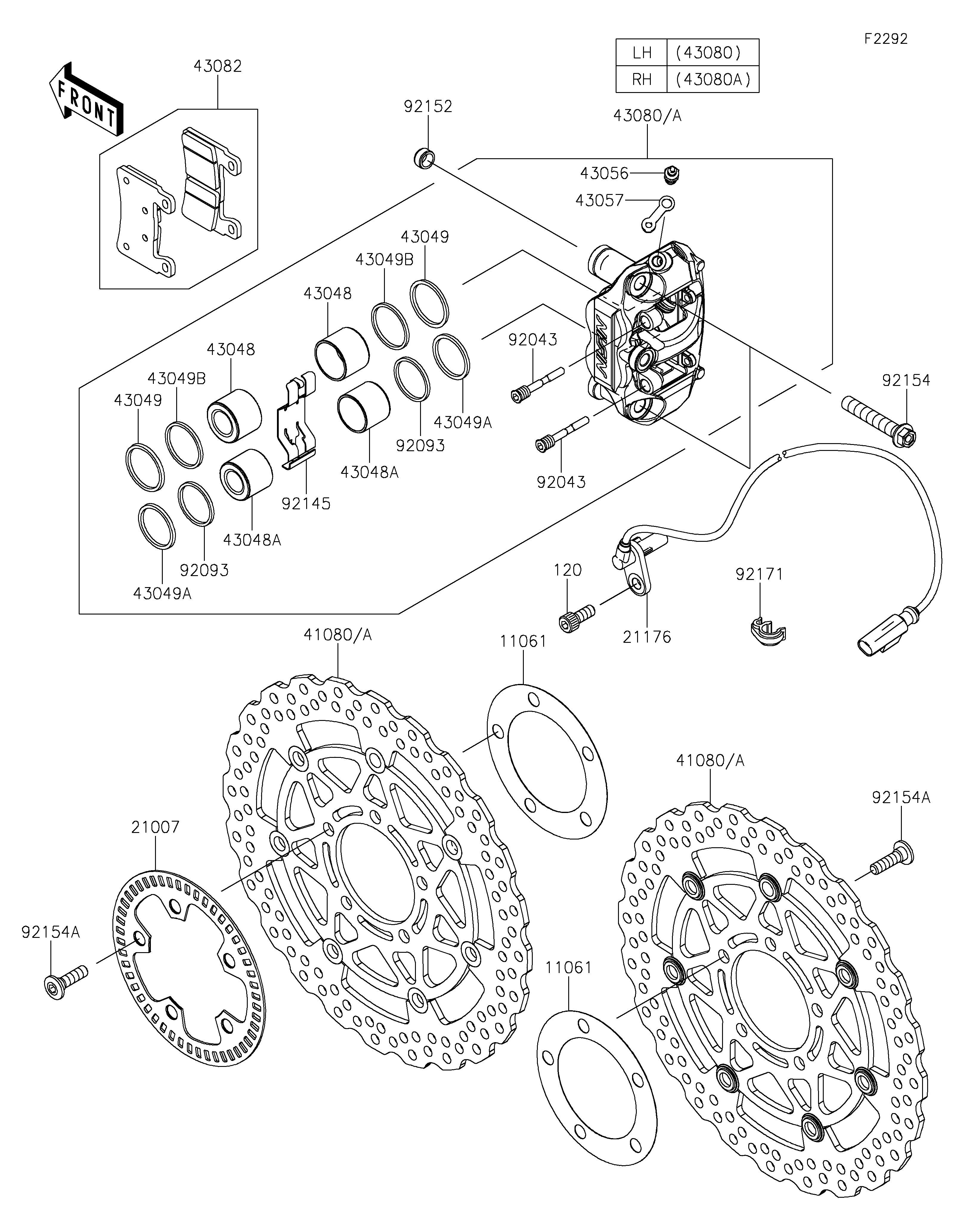

Kawasaki Ninja ZX-6R ABS KRT Edition Front Brake Diagram

#

Description

Price

11061

GASKET,DISC PLATE

11061-0029

Unavailable

120

BOLT-SOCKET,8X20

120CB0820

Unavailable

21007

ROTOR,FR WHEEL

21007-0166

Unavailable

21176

SENSOR,SPEED,FR

21176-0737

Unavailable

41080A

DISC,FR,HOUSING BLK+DISC SIL

41080-0590-5C

Unavailable

43048

PISTON-CALIPER

43048-0019

Unavailable

43048A

PISTON-CALIPER

43048-0020

Unavailable

43049

PACKING

43049-0028

Unavailable

43049A

PACKING

43049-0029

Unavailable

43049B

PACKING

43049-1081

Unavailable

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

Unavailable

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0111-DJ

Unavailable

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0113-DJ

Unavailable

43082

PAD-ASSY-BRAKE

43082-0131

Unavailable

92043

PIN,PAD

92043-0105

Unavailable

92093

SEAL,PISTON

92093-1272

Unavailable

92145

SPRING

92145-0924

Unavailable

92152

COLLAR,DOWEL PIN

92152-0679

Unavailable

92154

BOLT,SOCKET,10X63

92154-1067

Unavailable

92154A

BOLT,SOCKET,8X30

92154-1865

Unavailable

92171

CLAMP,BRAKE HOSE

92171-1819

Unavailable
