2015 Kawasaki Ninja® ZX™-6R ABS Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2015 Kawasaki Ninja® ZX™-6R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

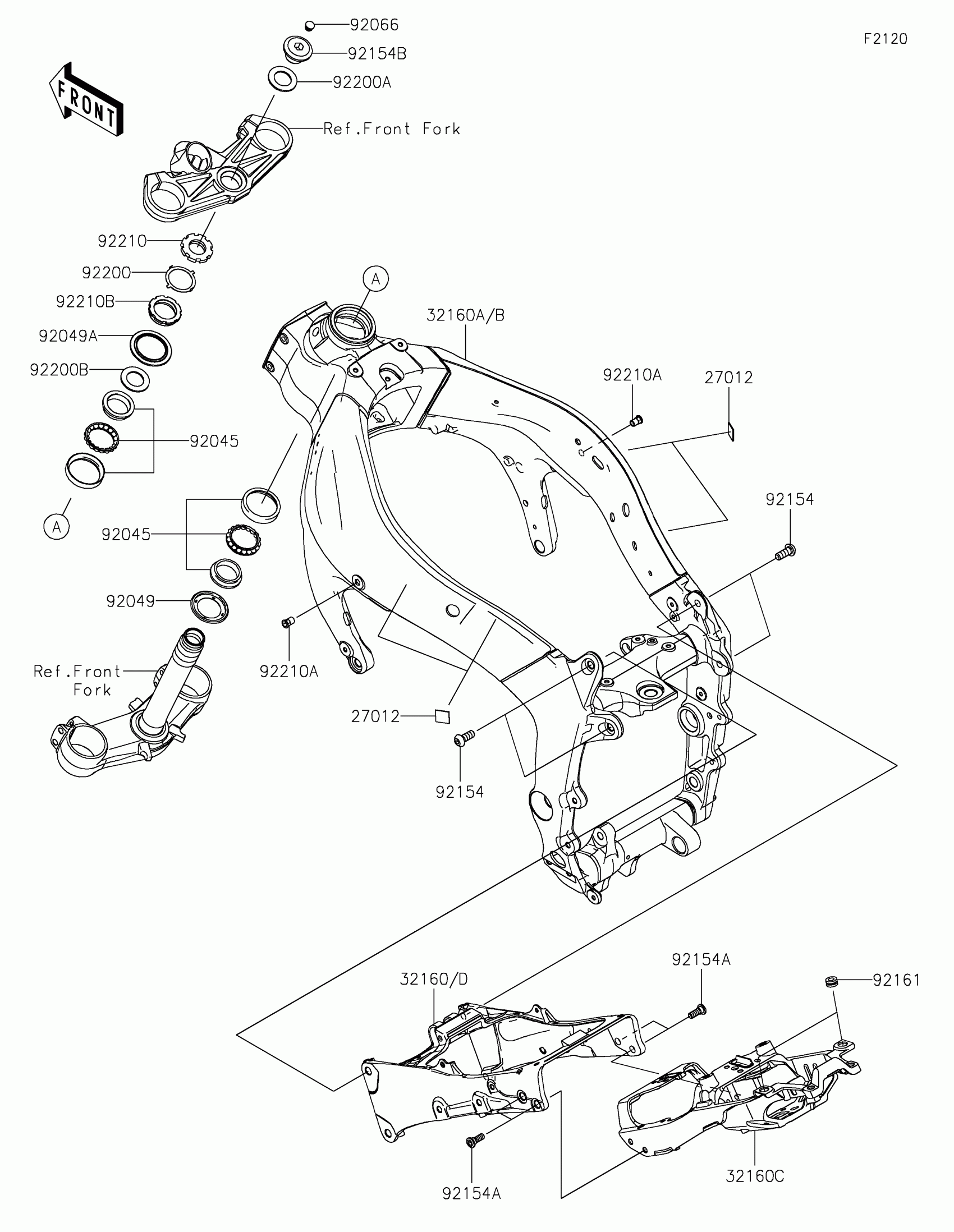

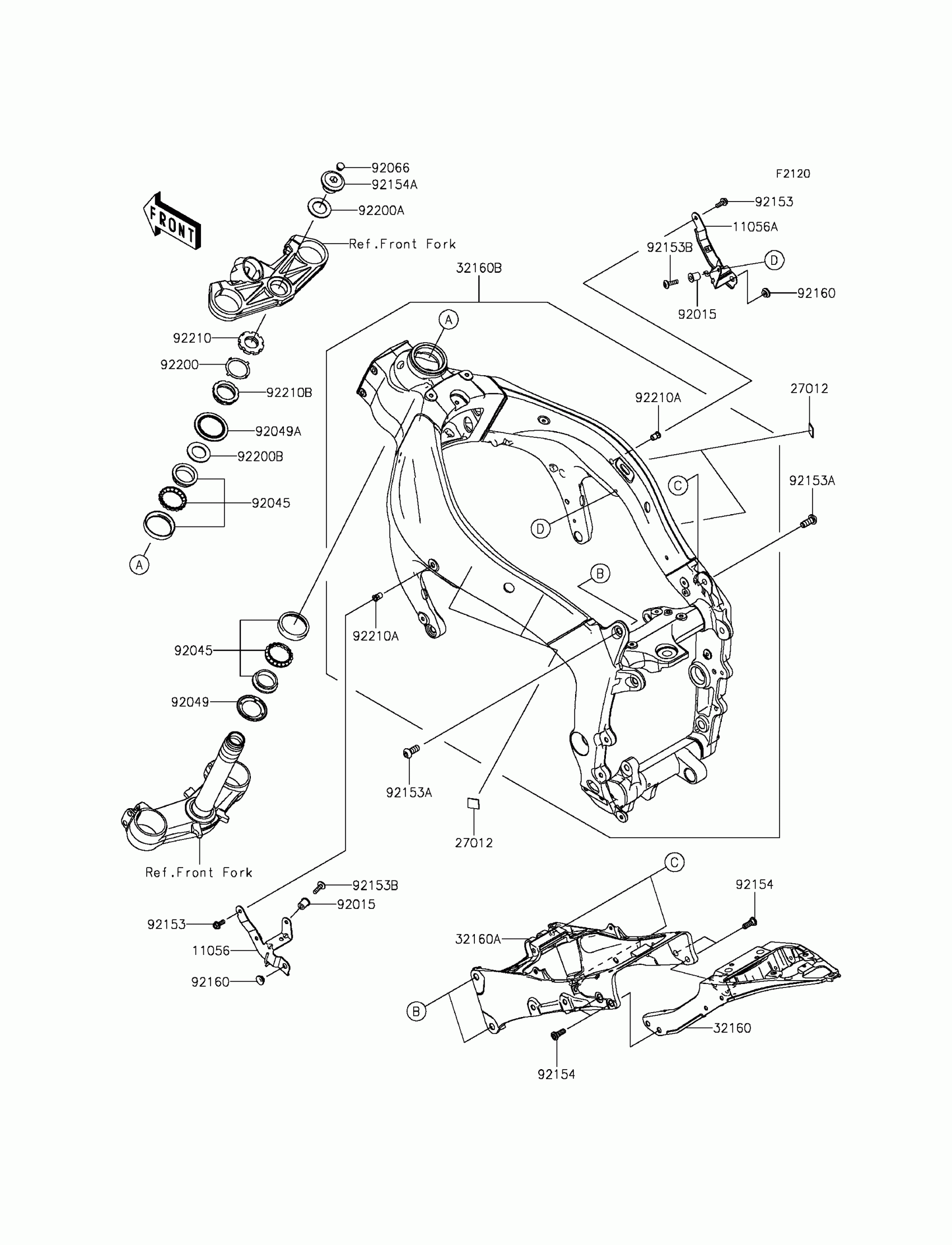

2015 Kawasaki Ninja® ZX™-6R ABS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,COWLING,LH

11056-1961

1
Out of stock

11056A

BRACKET,COWLING,RH

11056-2390

1
Out of stock

27012

HOOK,30X30X3.2

27012-0741

1
Out of stock

32160

FRAME-COMP,RR,RR

32160-0398

1
Out of stock

32160A

FRAME-COMP,RR,FR

32160-0399

1
Out of stock

32160B

FRAME-COMP

32160-0642

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

1
Out of stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

1
Out of stock

92066

PLUG

92066-0071

1
Out of stock

92153

BOLT,FLANGED,6X16

92153-0713

1
Out of stock

92153A

BOLT,SOCKET,10X25

92153-1136

1
Out of stock

92153B

BOLT,SOCKET,6X22

92153-1356

1
Out of stock

92154

BOLT,SOCKET,8X23

92154-0077

1
Out of stock

92154A

BOLT,26X18

92154-1167

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,27X42X2.3

92200-0081

1
Out of stock

92200B

WASHER,36X47X0.6

92200-0862

1
Out of stock

92210

NUT,35MM

92210-0095

1
Out of stock

92210A

NUT,6MM

92210-0099

1
Out of stock

92210B

NUT,35MM

92210-0823

1
Out of stock
