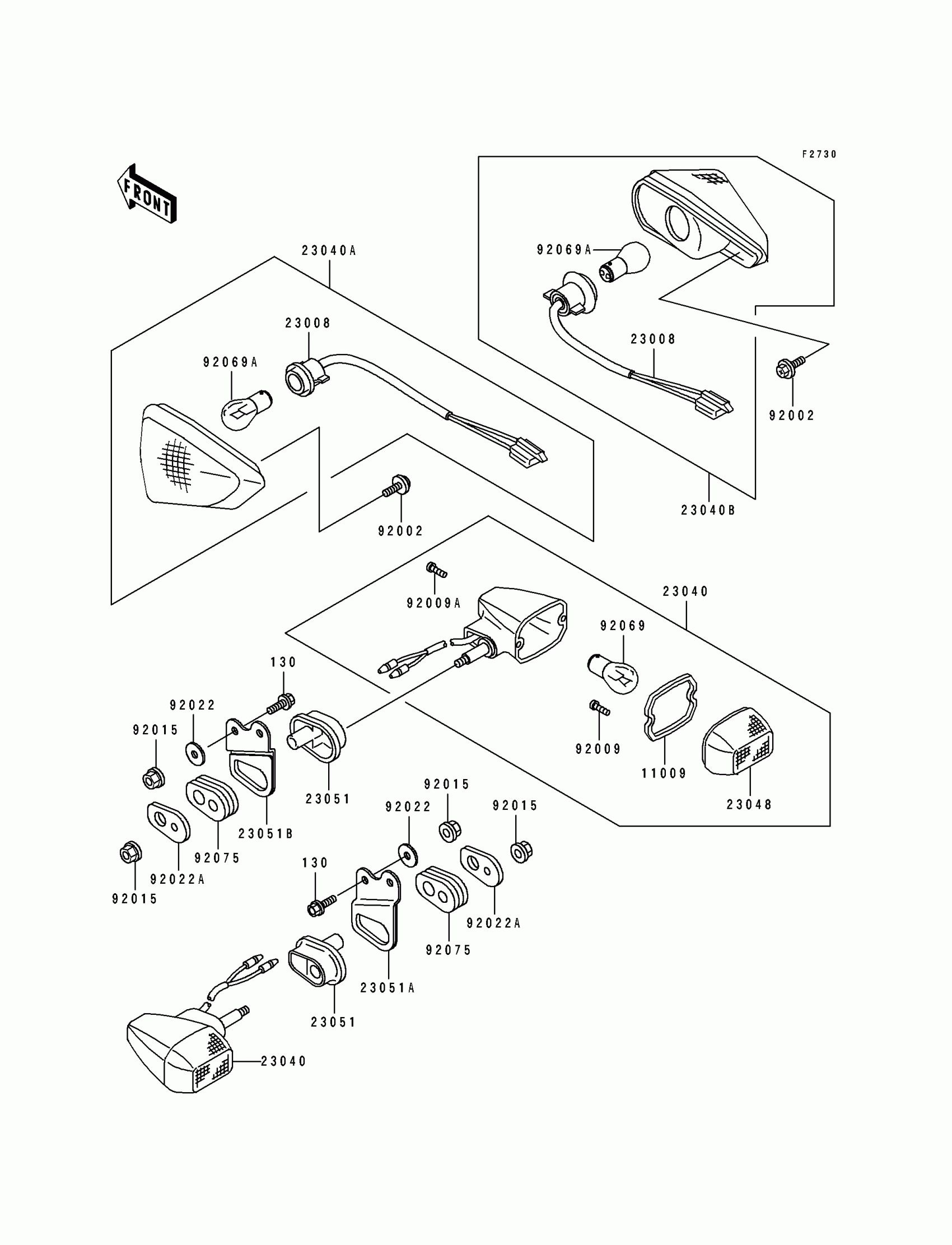

Kawasaki Ninja® ZX™-6 Turn Signal Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

11009

GASKET,SIGNAL LAMP

11009-1402

$4.39

23008

SOCKET-ASSY,SIGNAL LAMP,FR

23008-1262

$25.63

23040

LAMP-SIGNAL,RR

23040-1116

$75.36

23040A

LAMP-SIGNAL,FR,LH

23040-1213

$117.92

23040B

LAMP-SIGNAL,FR,RH

23040-1214

$117.92

23048

LENS-SIGNAL LAMP

23048-1054

$8.30

23051

BRACKET-SIGNAL LAMP,RR

23051-1168

$22.73

23051A

BRACKET-SIGNAL LAMP,RR,LH

23051-1211

Unavailable

23051B

BRACKET-SIGNAL LAMP,RR,RH

23051-1212

Unavailable

92002

BOLT,TAPPING,5X16

92002-1472

$1.32

92009

SCREW,TAPPING,3X16

92009-1115

$1.51

92009A

SCREW,TAPPING,4X20

92009-1304

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1237

$4.37

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.53

92022A

WASHER,SIGNAL LAMP

92022-1672

$4.44

92069

BULB,12V 32CP(23W)

92069-055

$4.12

92069A

BULB,12V 32/3CP(23/8W)

92069-060

$7.70

92075

DAMPER,SIGNAL LAMP

92075-1698

$7.60
