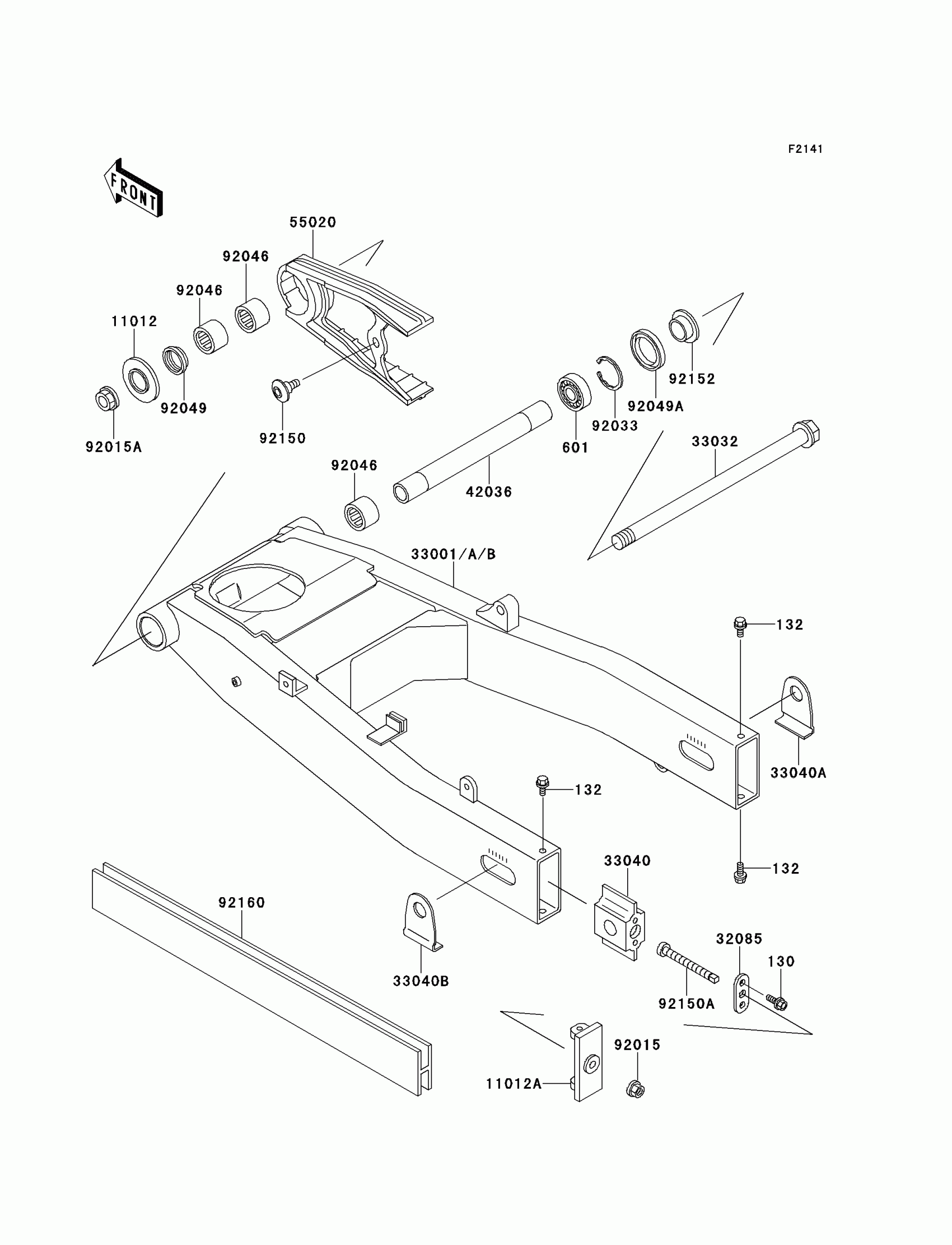

Kawasaki Ninja® ZX™-6 Swingarm Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130H0614

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

601

BEARING-BALL,#6004

601A6004

$9.42

11012

CAP

11012-1658

Unavailable

11012A

CAP,CHAIN ADJUSTER

11012-1704

$37.15

32085

STOPPER,CHAIN ADJUSTER

32085-1351

$5.37

33032

SHAFT-SWING ARM

33032-1165

$86.23

33040

ADJUSTER-CHAIN,INSIDE

33040-1133

$50.78

33040A

ADJUSTER-CHAIN,OUTSIDE,RH

33040-1135

$8.64

33040B

ADJUSTER-CHAIN,OUTSIDE,LH

33040-1141

$8.64

42036

SLEEVE,SWING ARM,L=213

42036-1283

$95.06

55020

GUARD,CHAIN

55020-1524

Unavailable

92015

NUT,8MM

92015-1143

$0.66

92015A

NUT,FLANGED,20MM

92015-1724

$14.14

92033

RING-SNAP,42MM

92033-1041

$4.88

92046A

BEARING-NEEDLE,7E-HVS28X34X17

92046-1235

$19.97

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.38

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

$10.88

92143

COLLAR,SWING ARM,L=12.5

92143-1227

$7.13

92150

BOLT,SOCKET,6MM

92150-1154

$6.24

92150A

BOLT,CHAIN ADJUSTER

92150-1285

$7.18

92160

DAMPER,SWING ARM

92160-1174

$92.86

33001

ARM-COMP-SWING,SILVER NO.35

33001-1488-TX

Unavailable

33001A

ARM-COMP-SWING,SILVER NO.35

33001-1488-VZ

Unavailable
