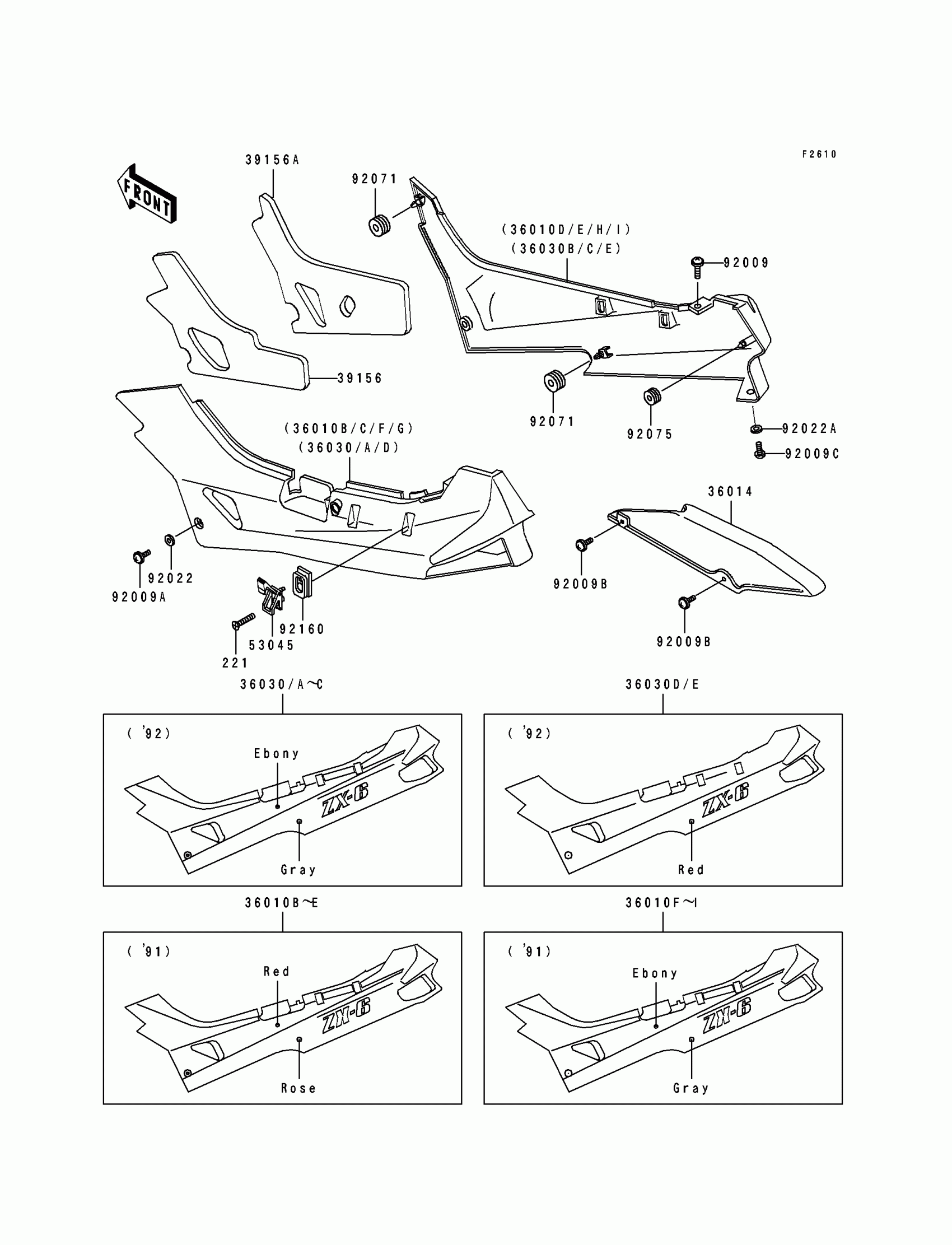

Kawasaki Ninja® ZX™-6 Side Cover/Chain Case(ZX600-D2/D3) Diagram

Description

Price

36014

CASE-CHAIN

36014-1164

$111.51

36030

COVER-SIDE,LH,EBONY/GRAY

36030-5067-JP

$209.26

36030A

COVER-SIDE,LH,EBONY/GRAY

36030-5067-T4

Unavailable

36030B

COVER-SIDE,RH,EBONY/GRAY

36030-5068-JP

Unavailable

36030C

COVER-SIDE,RH,EBONY/GRAY

36030-5068-T4

Unavailable

36030D

COVER-SIDE,LH,C.W.RED

36030-5069-TF

$209.26

36030E

COVER-SIDE,RH,C.W.RED

36030-5070-TF

$209.26

39156

PAD,SIDE COVER,LH

39156-1202

$38.87

39156A

PAD,SIDE COVER,RH

39156-1203

Unavailable

53045

HOOK-ASSY,TOOL BOX

53045-1053

Unavailable

92009

SCREW,6X18,BLACK

92009-1181

$2.29

92009A

SCREW,6X14

92009-1288

$3.12

92009B

SCREW,6X10

92009-1402

$2.00

92009C

SCREW,5X16,BLACK

92009-1654

$2.51

92022

WASHER,6.5X16X1

92022-1143

$3.12

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92071

GROMMET

92071-056

$3.39

92075

DAMPER

92075-1629

$3.97

92160

DAMPER,ROPE HOOK

92160-1042

$5.37

221

SCREW-CSK-CROS,6X25

221E0625

$3.46
