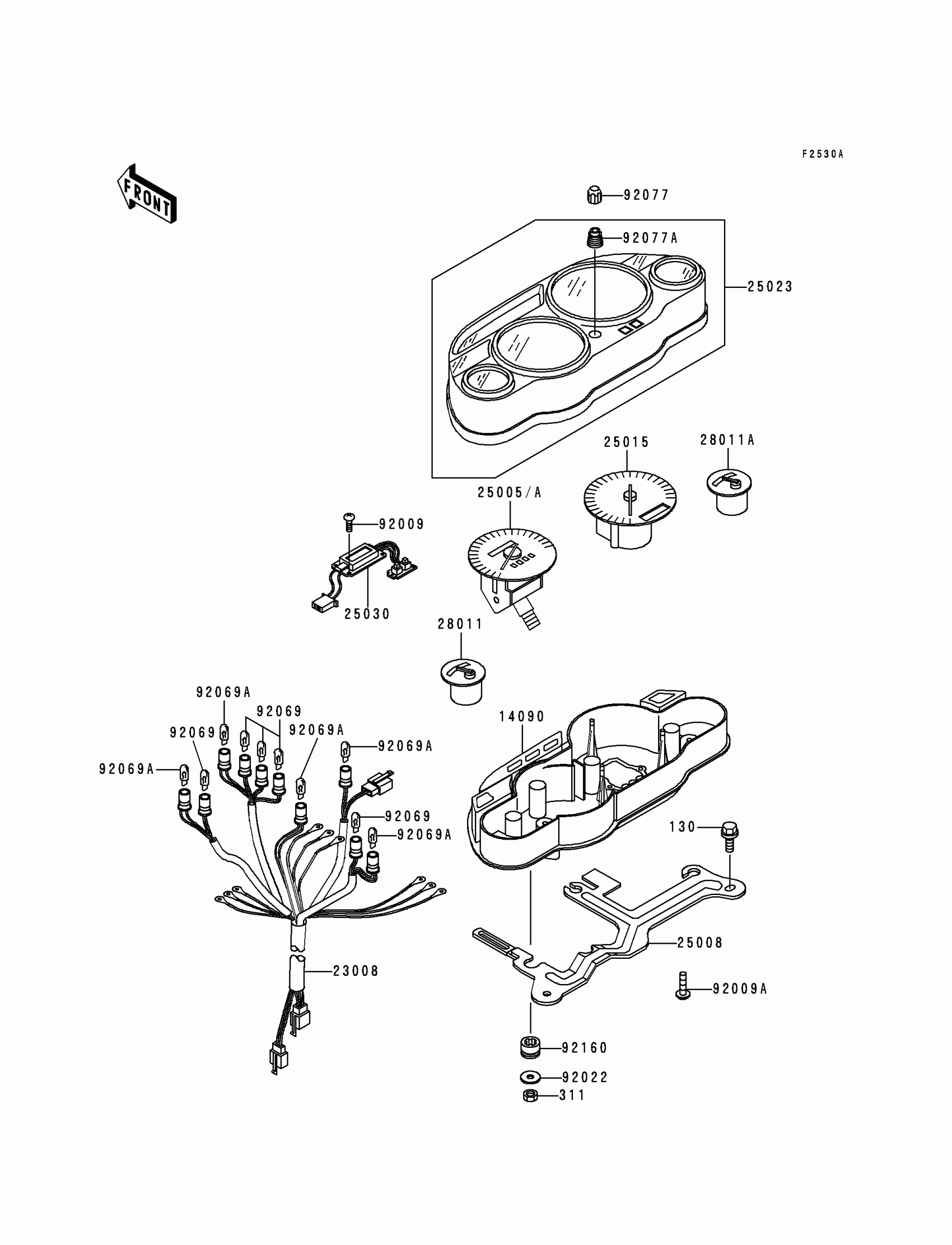

Kawasaki Ninja® ZX™-6 Meter(s)(ZX600-E5/E6) Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

311

NUT 6MM

311B0600

Unavailable

14090

COVER,METER HOUSING

14090-1554

$124.15

23008

SOCKET-ASSY,METER

23008-1543

$142.35

25008

BRACKET-METER

25008-1195

$86.76

25015

TACHOMETER,X1000R/MIN

25015-1342

$421.51

25023

COVER-METER CASE,UPP

25023-1219

$152.26

25030

CLOCK,DIGITAL

25030-1003

$517.43

28011

METER,FUEL

28011-1131

$128.17

28011A

METER,TEMP

28011-1132

$128.17

92009

SCREW,TAPPING,3X12

92009-1255

$3.20

92009A

SCREW,TAPPING,4X14

92009-1503

$3.20

92022

WASHER,6.2X18X1.2

92022-1369

$3.56

92069

BULB,12V 3.4W,T10

92069-1007

$3.97

92069A

BULB,12V 1.7W,T10

92069-1059

$3.94

92077

KNOB,TRIP RESET

92077-1094

$8.80

92077A

KNOB,TRIP RESET

92077-1112

$8.88

92160

DAMPER

92160-1436

$8.97

25005

SPEEDOMETER,KPH

25005-1612

Unavailable

25005A

SPEEDOMETER,MPH

25005-1613

$399.62
