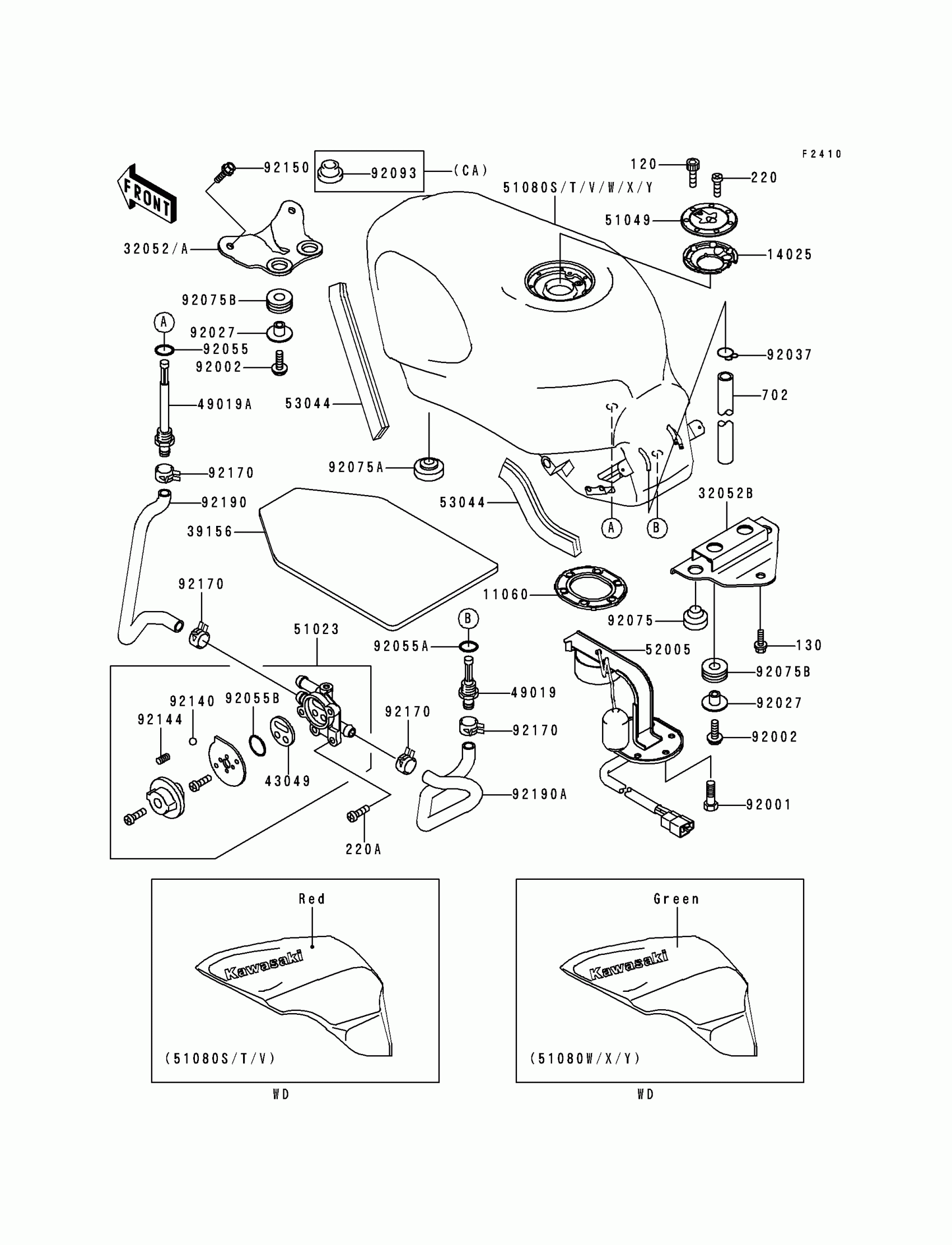

Kawasaki Ninja® ZX™-6 Fuel Tank(ZX600-E4) Diagram

#

Description
Price

11060

GASKET,FUEL GAUGE

11060-1337

$10.54

14025

COVER,TANK CAP

14025-1913

$19.98

32052B

BRACKET-TANK,RR

32052-1363

$43.33

39156

PAD,FUEL TANK

39156-1361

Unavailable

43049

PACKING,TAP VALVE

43049-1066

$5.77

49019

FILTER-FUEL

49019-1070

$14.51

49019A

FILTER-FUEL,"ON"

49019-1071

$14.69

51023

TAP-ASSY,FUEL

51023-1192

$134.98

51049

CAP-TANK,FUEL

51049-1091

$117.85

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,8X20

130J0820

Unavailable

220

SCREW-PAN-CROSS

220C0508

Unavailable

220A

SCREW-PAN-CROS,6X8

220C0608

$1.54

702

TUBE-RUBBER,7X10X600

702A07600

$10.53

52005

GAUGE,FUEL

52005-1105

$187.02

53044

TRIM

53044-1137

$10.25

92001

BOLT,FUEL GAUGE

92001-1069

$5.76

92002

BOLT,6X20

92002-1237

$3.43

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-010

$3.12

92055

RING-O,ID=9.5

92055-1386

$3.12

92055A

RING-O,11.5X1.5

92055-1387

$3.12

92055B

RING-O,TAP LEVER

92055-1419

$3.97

92075

DAMPER

92075-015

$3.97

92075A

DAMPER

92075-157

$6.12

92075B

DAMPER,10X24X12

92075-1690

$3.97

92140

BALL,STAINLESS,5/32"

92140-1051

$4.32

92144

SPRING,FUEL TAP KNOB

92144-1212

$3.98

92150

BOLT,6X14

92150-1340

$4.02

92170

CLAMP

92170-1492

$3.97

92190

TUBE,TAP-FILTER

92190-1332

$12.44

92190A

TUBE,FUEL,RES

92190-1333

$14.06

32052

BRACKET-TANK,FR,SILVER NO.35

32052-1362-TX

Unavailable

32052A

BRACKET-TANK,FR,SILVER NO.35

32052-1362-VZ

Unavailable

51080S

TANK-COMP-FUEL,C.W.RED

51080-5244-H3

Unavailable

51080T

TANK-COMP-FUEL,C.W.RED

51080-5244-TF

Unavailable

51080V

TANK-COMP-FUEL,C.W.RED

51080-5255-TF

Unavailable

51080W

TANK-COMP-FUEL,L.GREEN

51080-5256-7F

Unavailable

51080X

TANK-COMP-FUEL,L.GREEN

51080-5257-7F

Unavailable

51080Y

TANK-COMP-FUEL,L.GREEN

51080-5262-7F

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18
