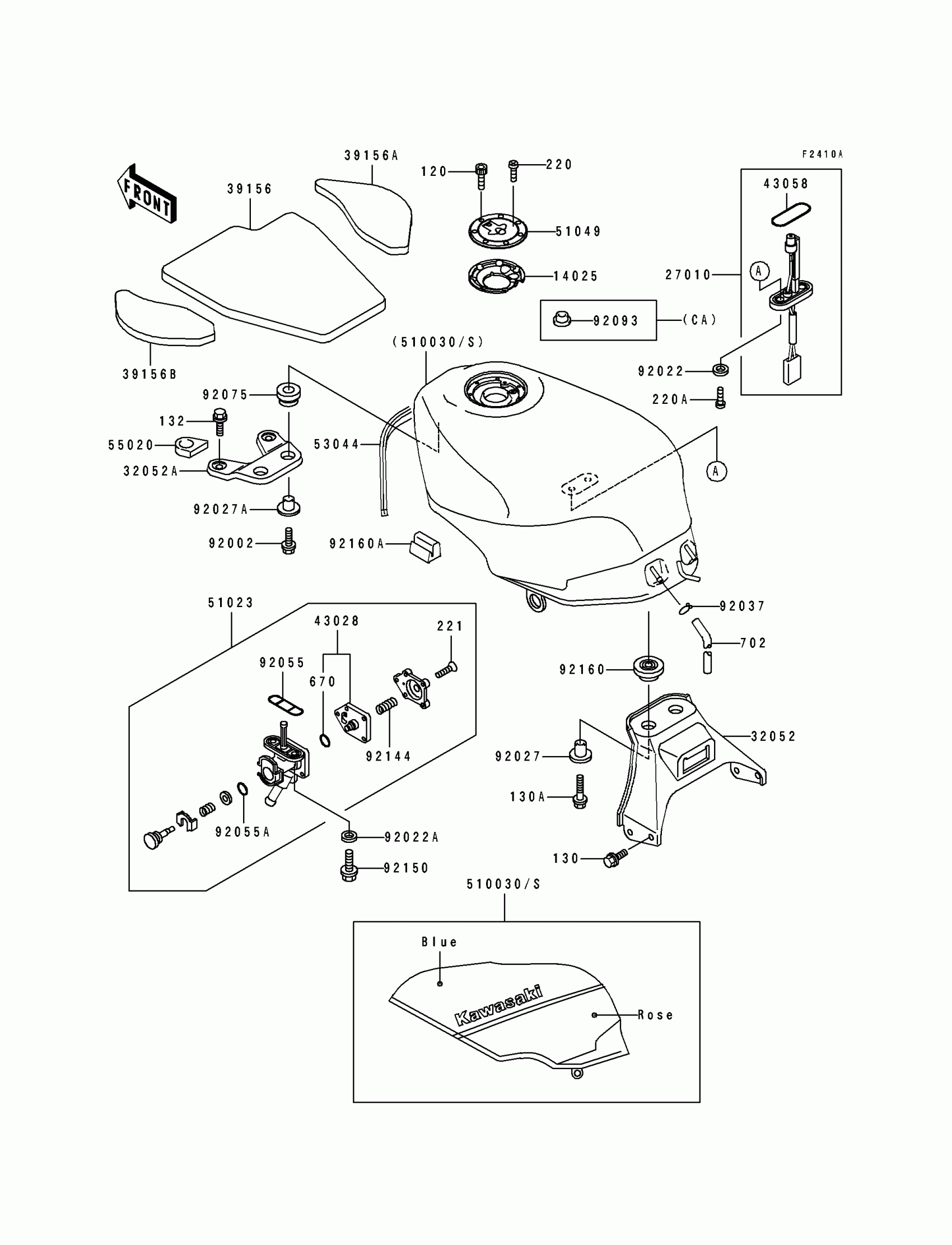

Kawasaki Ninja® ZX™-6 Fuel Tank(ZX600-D4) Diagram

#

Description
Price

14025

COVER,TANK CAP

14025-1913

$19.98

27010

SWITCH,FUEL LEVEL

27010-1096

Unavailable

32052

BRACKET-TANK,RR

32052-1302

$40.92

32052A

BRACKET-TANK,FR,G.GRAY

32052-1303-HN

$16.37

39156

PAD,FUEL TANK,CNT

39156-1204

Unavailable

39156A

PAD,FUEL TANK,RH

39156-1205

$14.37

39156B

PAD,FUEL TANK,LH

39156-1206

$14.37

43028

DIAPHRAGM,TAP

43028-1068

$48.32

43058

RING,FUEL LEVEL SWITCH

43058-1004

$6.39

51003O

TANK-COMP-FUEL,BLUE/ROSE OPERA

51003-5457-TG

$545.37

51003S

TANK-COMP-FUEL,BLUE/ROSE OPERA

51003-5472-TG

$545.37

51023

TAP-ASSY,FUEL

51023-1171

Unavailable

51049

CAP-TANK,FUEL

51049-1079

$136.32

53044

TRIM,L=720

53044-1203

$38.93

55020

GUARD,FUEL TANK BRACKET,FR

55020-1402

Unavailable

92002

BOLT,6X20

92002-1237

$3.43

92022

WASHER,5.2X10X1.5

92022-1023

$3.12

92022A

WASHER-PLAIN

92022-183

$3.12

92027

COLLAR,L=16.1

92027-1847

$4.93

92027A

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-010

$3.12

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.97

92055A

RING-O,TAP BOTTOM

92055-1377

Unavailable

92075

DAMPER,10X24X12

92075-1690

$3.97

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18

92144

SPRING,TAP DIAPHRAGM

92144-1119

Unavailable

92150

BOLT,FLANGED,6X16

92150-1358

$3.92

92160

DAMPER

92160-1046

$8.12

92160A

DAMPER

92160-1197

Unavailable

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

220

SCREW-PAN-CROSS

220C0508

Unavailable

220A

SCREW-PAN-CROS

220X0514

$2.41

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.27

702

TUBE-RUBBER,7X10X400

702A07400

$10.53
