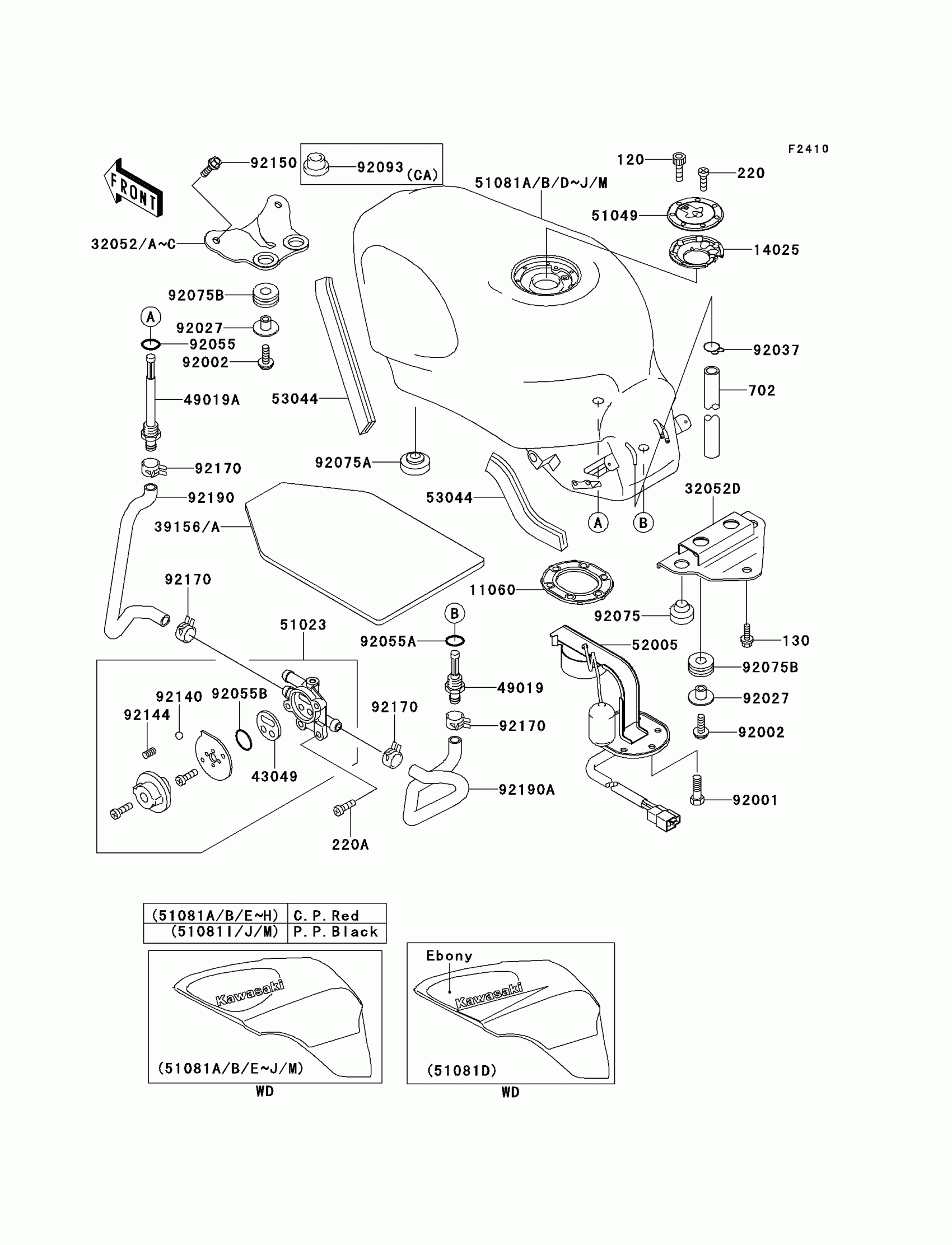

Kawasaki Ninja® ZX™-6 Fuel Tank(4/4) Diagram

#

Description
Price

11060

GASKET,FUEL GAUGE

11060-1337

$10.12

14025

COVER,TANK CAP

14025-1913

$17.42

32052D

BRACKET-TANK,RR

32052-1363

$43.33

39156A

PAD,FUEL TANK

39156-1662

$44.00

43049

PACKING,TAP VALVE

43049-1066

$5.54

49019

FILTER-FUEL

49019-1070

$13.93

49019A

FILTER-FUEL,"ON"

49019-1071

$14.10

51023

TAP-ASSY,FUEL

51023-1192

$134.98

51049

CAP-TANK,FUEL

51049-1091

$117.85

52005

GAUGE,FUEL

52005-1105

$187.02

53044

TRIM

53044-1137

$10.25

92001

BOLT,FUEL GAUGE

92001-1069

$5.53

92002

BOLT,6X20

92002-1237

$3.29

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-010

$2.99

92055

RING-O,ID=9.5

92055-1386

$2.99

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,8X20

130J0820

Unavailable

220

SCREW-PAN-CROSS

220C0508

Unavailable

220A

SCREW-PAN-CROS,6X8

220C0608

$1.33

702

TUBE-RUBBER,7X10X600

702A07600

$10.11

92055A

RING-O,11.5X1.5

92055-1387

$2.99

92055B

RING-O,TAP LEVER

92055-1419

$3.81

92075

DAMPER

92075-015

$3.81

92075A

DAMPER

92075-157

$5.87

92075B

DAMPER,10X24X12

92075-1690

$3.81

92140

BALL,STAINLESS,5/32"

92140-1051

$4.32

92144

SPRING,FUEL TAP KNOB

92144-1212

$3.98

92150

BOLT,6X14

92150-1340

$3.86

92170

CLAMP

92170-1492

$3.81

92190

TUBE,TAP-FILTER

92190-1332

$11.94

92190A

TUBE,FUEL,RES

92190-1333

$13.49

32052

BRACKET-TANK,FR,P.C.GRAY

32052-1362-CQ

$12.17

32052A

BRACKET-TANK,FR,C.GRAY

32052-1362-EZ

Unavailable

51081I

TANK-COMP-FUEL,BLACK

51081-5415-5M

Unavailable

51081J

TANK-COMP-FUEL,BLACK

51081-5416-5M

Unavailable

51081M

TANK-COMP-FUEL,BLACK MICA

51081-5470-20

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93
