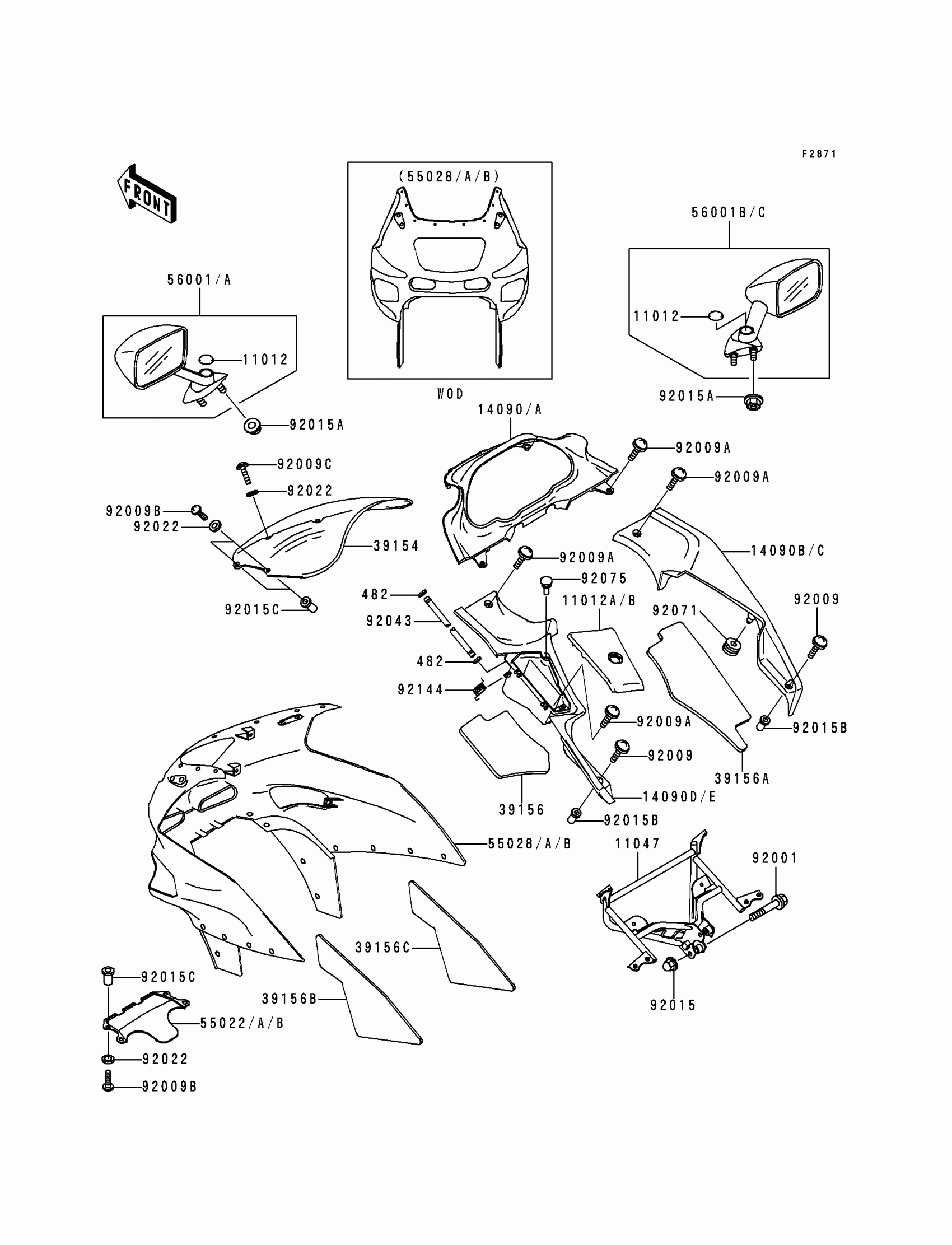

Kawasaki Ninja® ZX™-6 Cowling(ZX600-E4) Diagram

#

Description
Price

11012

CAP,MIRROR,BLACK

11012-1751-6Z

$3.77

11047

BRACKET,UPP COWLING

11047-1935

Unavailable

39154

WINDSHIELD

39154-1121

$251.76

39156

PAD,INNER COWLING,LH

39156-1364

Unavailable

39156A

PAD,INNER COWLING,RH

39156-1365

Unavailable

39156B

PAD,UPP COWLING,LH

39156-1366

Unavailable

39156C

PAD,UPP COWLING,RH

39156-1367

Unavailable

55022B

COVER-HEAD LAMP,L.GREEN

55022-1075-7F

Unavailable

55028B

COWLING,UPP,L.GREEN

55028-1292-7F

Unavailable

482

CIRCLIP-TYPE-E,3MM

482L3000

Unavailable

56001

MIRROR-ASSY,LH,C.W.RED

56001-1394-H3

Unavailable

56001A

MIRROR-ASSY,LH,L.GREEN

56001-1394-7F

Unavailable

56001B

MIRROR-ASSY,RH,C.W.RED

56001-1395-H3

Unavailable

56001C

MIRROR-ASSY,RH,L.GREEN

56001-1395-7F

Unavailable

92001

BOLT,FLANGED,8X45

92001-1613

$4.61

92009

SCREW,6X22,BLACK

92009-1256

$2.27

92009A

SCREW,6X16

92009-1621

Unavailable

92009B

SCREW,5X16,BLACK

92009-1654

$2.51

92009C

SCREW,5X20,BLACK

92009-1656

$3.16

92015

NUT,CAP,8MM,BLACK

92015-1174

$3.97

92015A

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92015B

NUT

92015-1700

$6.82

92015C

NUT,WELL,5MM

92015-1757

$5.81

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92043

PIN,4X124.7

92043-1477

$10.63

92071

GROMMET

92071-056

$3.39

92075

DAMPER,6X10X15

92075-1808

$1.24

92144

SPRING

92144-1697

$8.46

11012A

CAP,INNER COWLING COVER,LH,GRA

11012-1862-11

Unavailable

11012B

CAP,INNER COWLING COVER,LH,GRA

11012-1862-12

$25.61

14090

COVER,INNER COWLING,CNT,GRAY

14090-1289-11

Unavailable

14090A

COVER,INNER COWLING,CNT,GRAY

14090-1289-12

Unavailable

14090B

COVER,INNER COWLING,RH,GRAY

14090-1291-11

Unavailable

14090C

COVER,INNER COWLING,RH,GRAY

14090-1291-12

$95.26

14090D

COVER,INNER COWLING,LH,GRAY

14090-1358-11

Unavailable

14090E

COVER,INNER COWLING,LH,GRAY

14090-1358-12

$95.26

55022

COVER-HEAD LAMP,C.W.RED

55022-1075-H3

Unavailable

55022A

COVER-HEAD LAMP,C.W.RED

55022-1075-TF

Unavailable

55028

COWLING,UPP,C.W.RED

55028-1292-H3

Unavailable

55028A

COWLING,UPP,C.W.RED

55028-1292-TF

Unavailable
