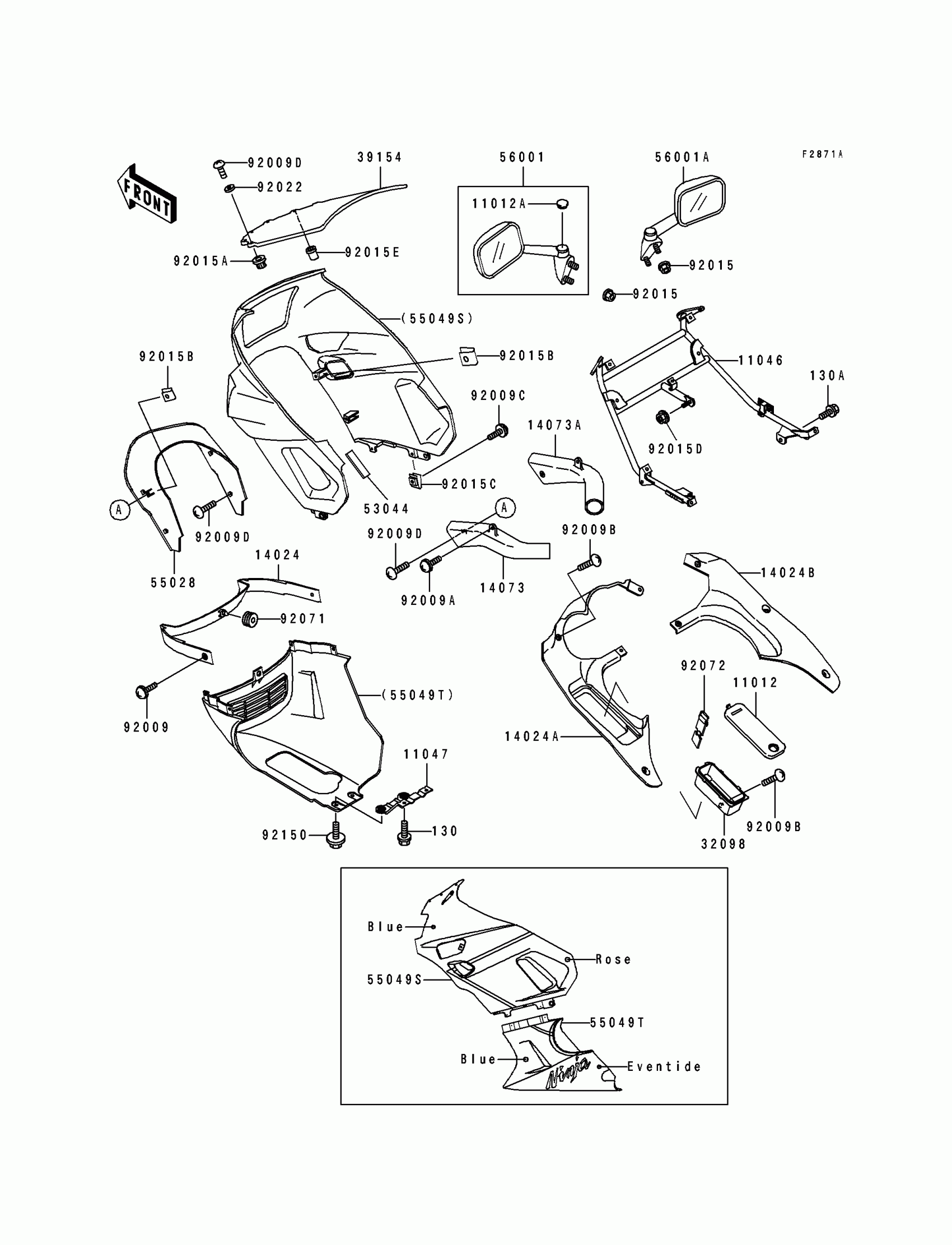

Kawasaki Ninja® ZX™-6 Cowling(ZX600-D4) Diagram

#

Description
Price

11012

CAP,INNER COWLING,LH

11012-1735

$42.11

11012A

CAP,MIRROR,BLACK

11012-1751-6Z

$3.77

11046

BRACKET,COWLING

11046-1962

$426.31

11047

BRACKET,LWR COWLING

11047-1091

Unavailable

14024

COVER,COWLING,CNT,G.GRAY

14024-1877-HN

Unavailable

14024A

COVER,INNER COWLING,LH

14024-1901

Unavailable

14024B

COVER,INNER COWLING,RH

14024-1902

Unavailable

14073

DUCT,AIR INTAKE,LH

14073-1426

Unavailable

14073A

DUCT,AIR INTAKE,RH

14073-1427

Unavailable

32098

CASE-TOOL

32098-1093

$44.29

39154

WINDSHIELD

39154-1109

Unavailable

53044

TRIM,L=80

53044-1218

Unavailable

55028

COWLING,FR,M.N.BLUE

55028-1244-TK

Unavailable

55049S

COWLING.,UPP,BLUE/ROSE

55049-5127-TG

Unavailable

55049T

COWLING.,LWR,BLUE/EVENTIDE

55049-5128-TJ

Unavailable

56001

MIRROR-ASSY,LH,M.N.BLUE

56001-1394-C6

$180.83

56001A

MIRROR-ASSY,RH,M.N.BLUE

56001-1395-C6

Unavailable

92009

SCREW,6X14,WHITE

92009-1287

$2.10

92009A

SCREW,6X14

92009-1288

$3.12

92009B

SCREW,6X14

92009-1611

$4.08

92009C

SCREW,6X16

92009-1621

Unavailable

92009D

SCREW,5X16,BLACK

92009-1654

$2.51

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92015A

NUT,5MM,COWLING

92015-1343

$3.65

92015B

NUT,5MM

92015-1573

$5.25

92015C

NUT,6MM

92015-1602

$5.84

92015D

NUT,FLANGED,LOCK,8MM

92015-1696

$3.70

92015E

NUT,WELL,5MM

92015-1757

$5.81

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92071

GROMMET

92071-056

$3.39

92072

BAND,L=300

92072-1235

$20.37

92150

BOLT,6X14

92150-1133

$3.57

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,8X12

130J0812

Unavailable
