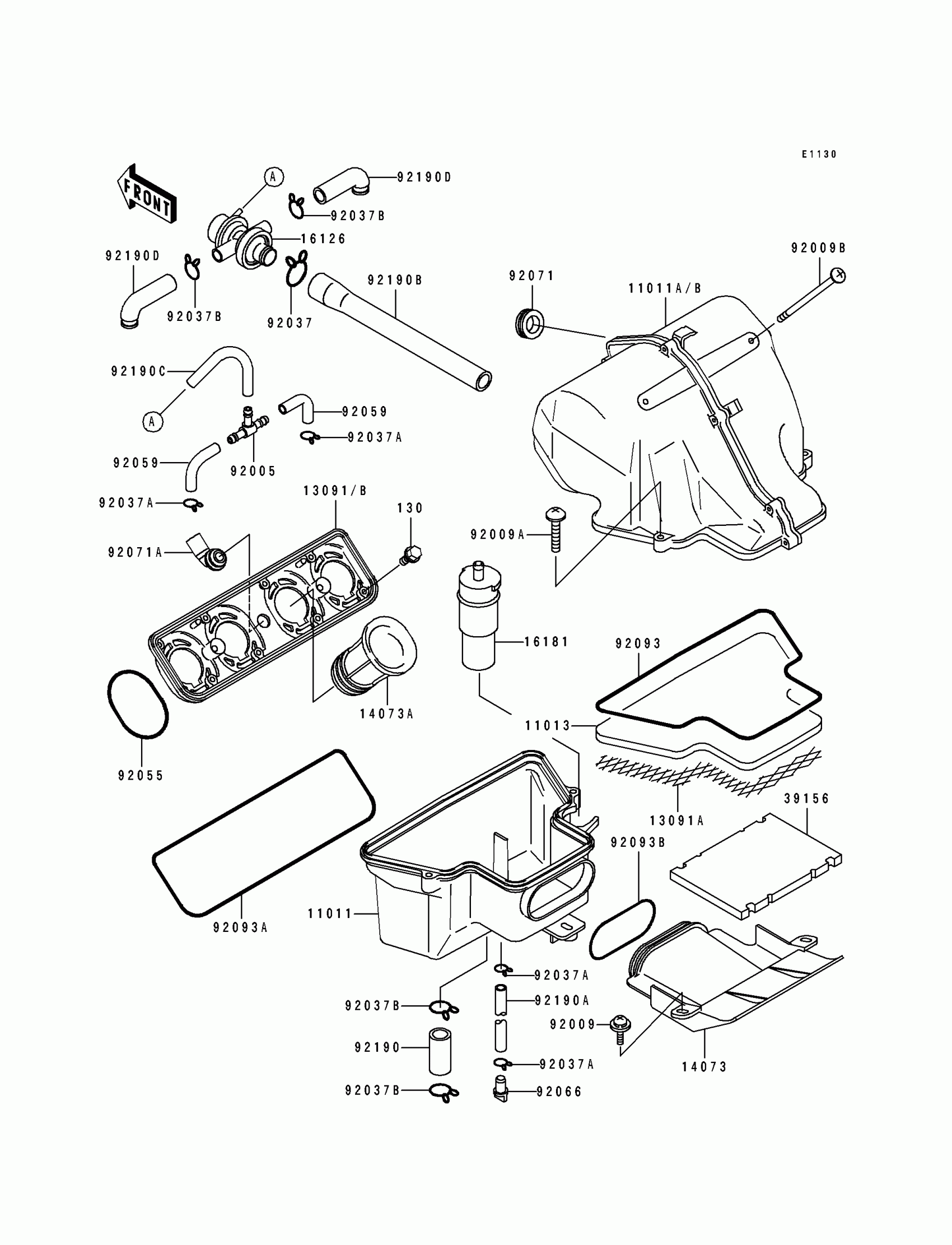

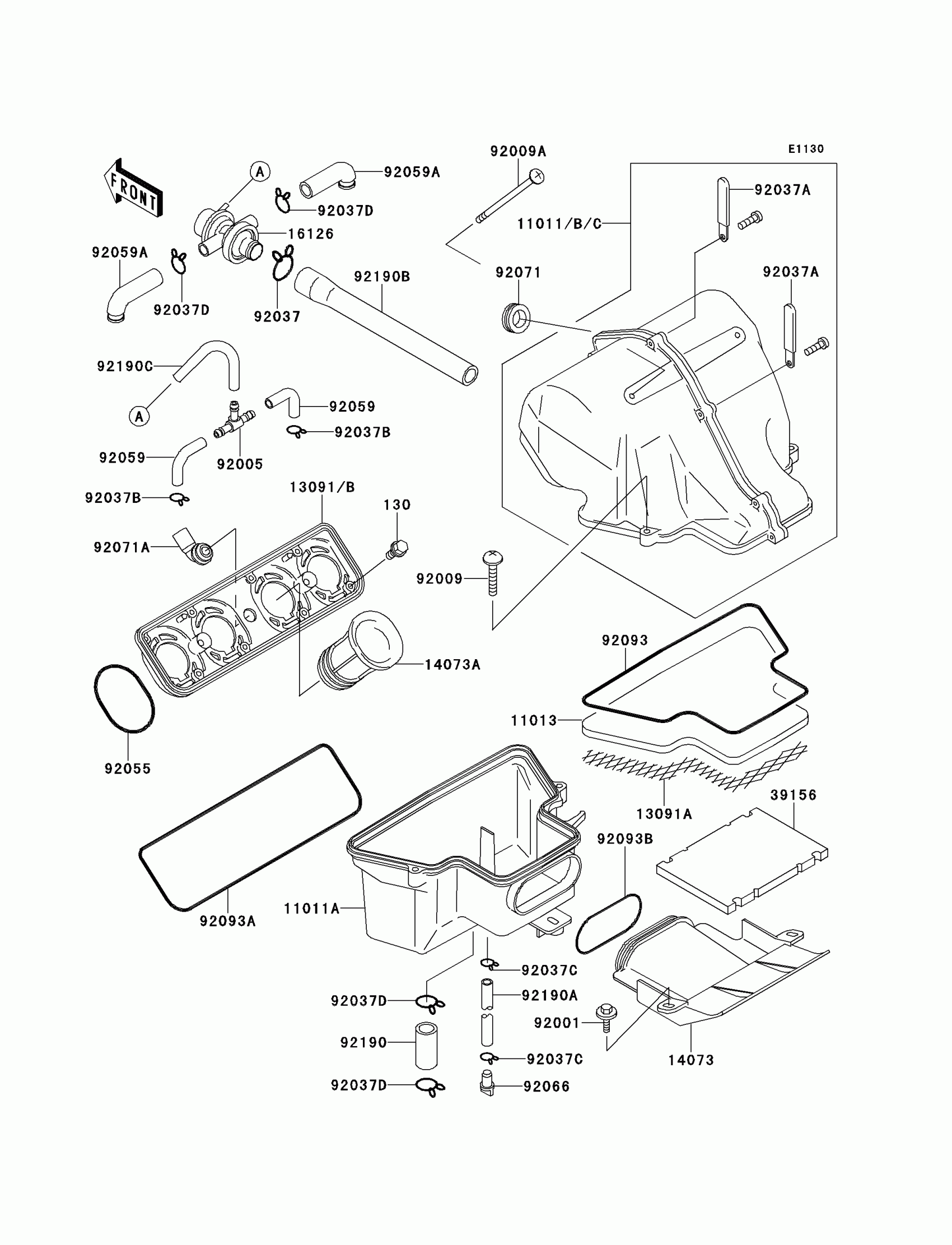

Kawasaki Ninja® ZX™-6 Air Filter Diagram

#

Description
Price

11011A

CASE-AIR FILTER,LWR

11011-1328

Unavailable

11013

ELEMENT-AIR FILTER

11013-1189

$30.54

13091A

HOLDER,ELEMENT

13091-1658

Unavailable

14073

DUCT,AIR INTAKE

14073-1424

Unavailable

14073A

DUCT,CARBURETOR

14073-1442

Unavailable

39156

PAD

39156-1213

Unavailable

92001

BOLT,6X20

92001-1826

$3.53

92009

SCREW,6X35

92009-1589

Unavailable

92009A

SCREW,6X144

92009-1622

Unavailable

92037C

CLAMP

92037-1712

$3.97

92055

RING-O,67.7X3.1

92055-1434

$7.84

92066

PLUG,DRAIN

92066-1211

$6.75

130

BOLT-FLANGED

130G0516

Unavailable

92093

SEAL,AIR FILTER CASE

92093-1301

$10.83

92093A

SEAL,AIR FILTER HOLDER

92093-1302

Unavailable

92093B

SEAL,AIR DUCT

92093-1303

$5.78

92190

TUBE,BREATHER

92190-1088

Unavailable

92190A

TUBE,7X10X480

92190-1089

Unavailable

11011

CASE-AIR FILTER,UPP

11011-1327

Unavailable

11011B

CASE-AIR FILTER,UPP

11011-1332

Unavailable

11011C

CASE-AIR FILTER,UPP

11011-1333

Unavailable

13091

HOLDER,AIR FILTER

13091-1657

Unavailable

13091B

HOLDER

13091-1672

Unavailable

16126

VALVE,AIR SWITCH

16126-1144

$204.57

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP,TUBE

92037-1076

$7.14

92037A

CLAMP,L=45

92037-1539

$4.42

92037B

CLAMP

92037-1610

$1.64

92037D

CLAMP,TUBE

92037-213

$3.43

92037D

CLAMP,TUBE

92037-213

$3.43

92059

TUBE,4X9X80

92059-1365

$12.97

92059A

TUBE

92059-1907

Unavailable

92071

GROMMET,AIR FILTER

92071-1028

$5.78

92071A

GROMMET,AIR FILTER

92071-1114

Unavailable

92190B

TUBE,VALVE-AIR FILTER

92190-1090

$10.93

92190C

TUBE,4X9X220

92190-1091

$15.01
