2024 Kawasaki Ninja ZX-4RR Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

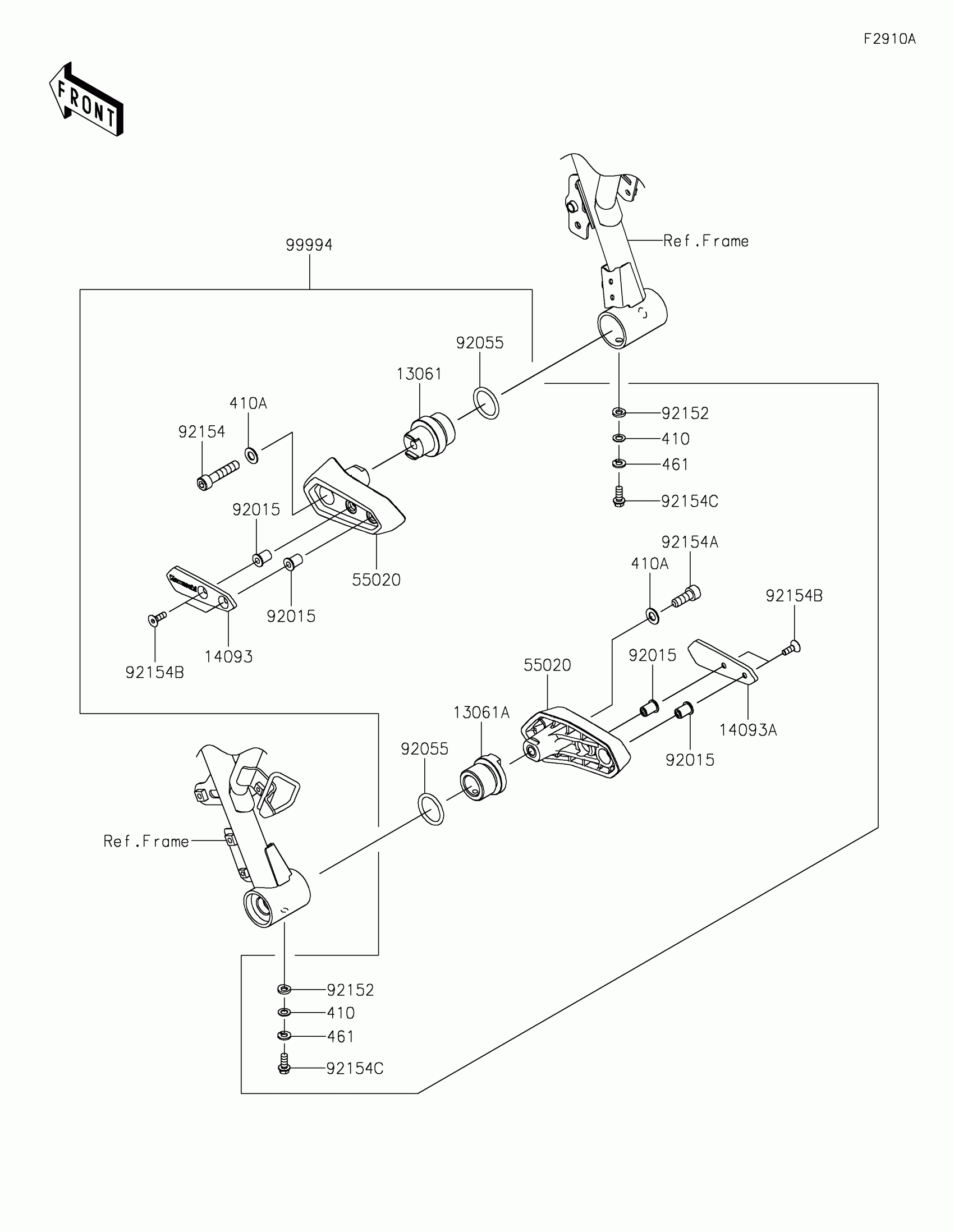

2024 Kawasaki Ninja ZX-4RR Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS,LH

13061-1951

1
Out of stock

13061A

BOSS,RH

13061-1952

1
Out of stock

14093

COVER,SLIDER,LH

14093-0971

1
Out of stock

14093A

COVER,SLIDER,RH

14093-0972

1
Out of stock

55020

GUARD

55020-2411

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92055

RING-O,25.7X3.5

92055-0953

1
Out of stock

92152

COLLAR

92152-2645

1
Out of stock

92154

BOLT,SOCKET,8X40

92154-4046

1
Out of stock

92154A

BOLT,SOCKET,8X22

92154-4047

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-4048

1
Out of stock

92154C

BOLT,FLANGED,6X14

92154-4049

1
Out of stock

99994

FRAME SLIDER

99994-1868

1
Out of stock

410

WASHER-PLAIN-SMALL

410AA0600

1
Out of stock

410A

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock
