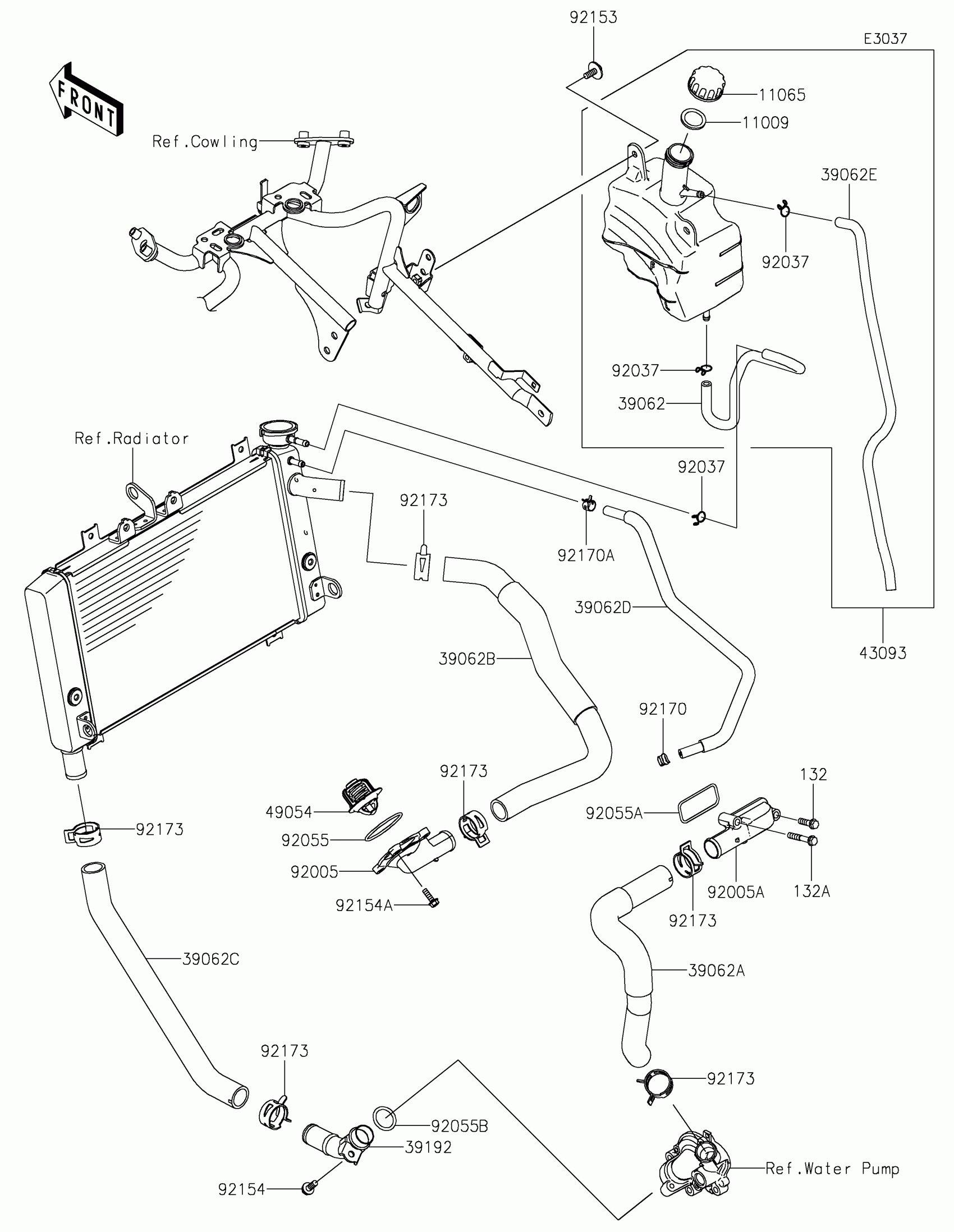

Kawasaki Ninja ZX-4R ABS Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11065

CAP

11065-0969

$1.46

39062

HOSE-COOLING,RETURN

39062-0853

$5.81

39062A

HOSE-COOLING,W/P-FITTING

39062-0854

$22.54

39062B

HOSE-COOLING,RAD-FITTING

39062-0855

$29.09

39062C

HOSE-COOLING,RAD-W/P

39062-0856

$15.03

39062D

HOSE-COOLING,AIR BLEED

39062-0857

$14.63

39062E

HOSE-COOLING,OVER FLOW

39062-0926

$7.73

39192

PIPE-WATER

39192-0658

$17.29

43093

RESERVOIR-ASSY-TANK

43093-0009

$25.19

49054

THERMOSTAT

49054-0001

$27.18

92005

FITTING,THERMO CAP

92005-0957

$35.83

92005A

FITTING

92005-0958

$35.83

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,44.7X2.4

92055-0947

$5.71

92055A

RING-O,FITTING

92055-0948

$5.02

92055B

RING-O,21.6X3.1

92055-0949

$3.29

92153

BOLT,FLANGED-SMALL,6X16

92153-1798

$1.53

92154

BOLT,FLANGED-SMALL,6X16

92154-1893

$4.17

92154A

BOLT,FLANGED,5X16

92154-7034

$0.73

92170

CLAMP

92170-1493

$3.81

92170A

CLAMP

92170-1872

$3.05

92173

CLAMP

92173-1688

$2.95

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

132A

BOLT-FLANGED-SMALL,6X35

132BA0635

$1.49
