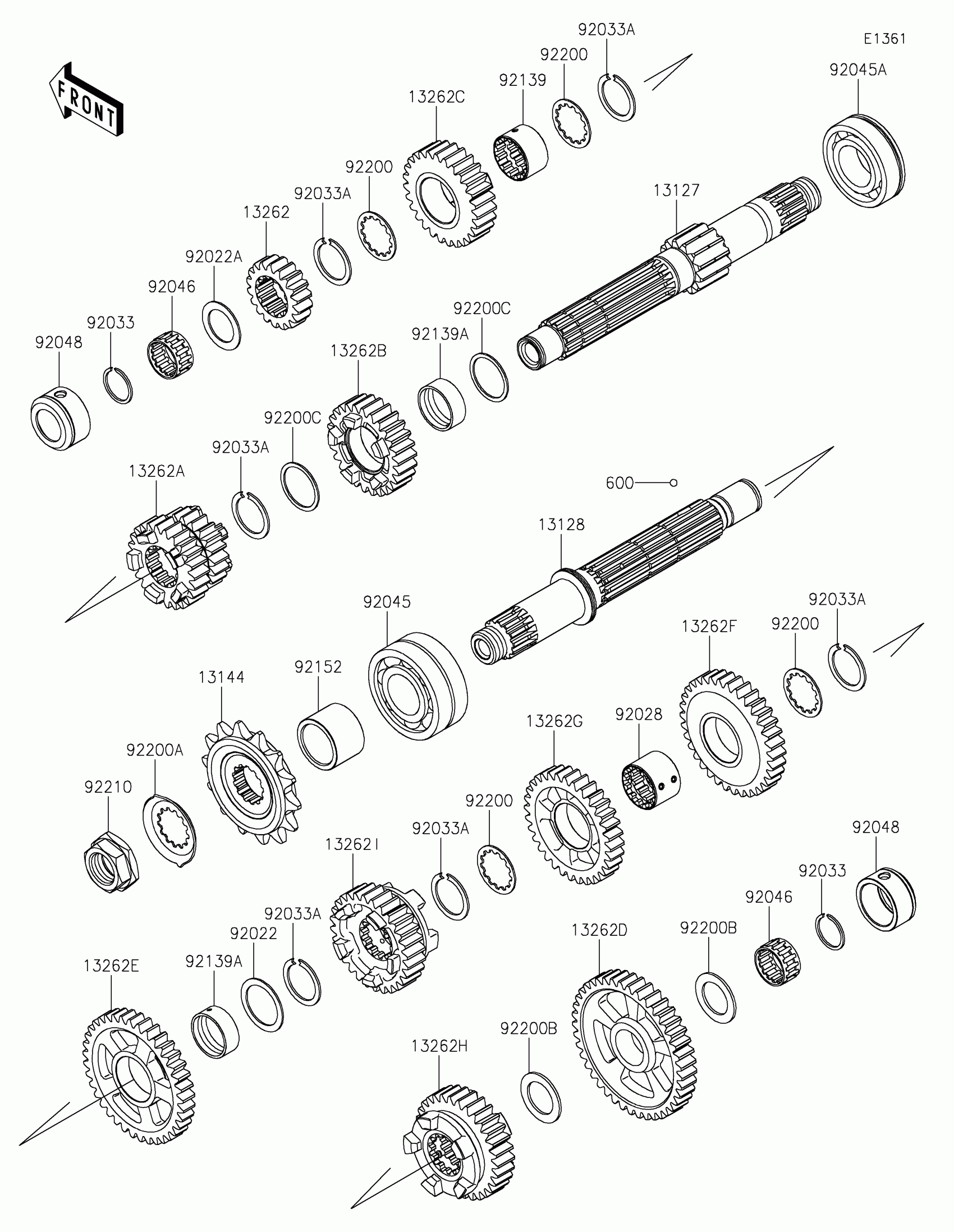

Kawasaki Ninja ZX-4R ABS Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,13T

13127-0727

$235.52

13128

SHAFT-TRANSMISSION OUTPUT

13128-0736

$177.61

13144

SPROCKET-OUTPUT,14T

13144-0577

$53.96

13262

GEAR,INPUT 2ND,18T

13262-1288

$50.20

13262A

GEAR,INPUT 3RD&4TH,21T,24T

13262-1289

$102.68

13262B

GEAR,INPUT 5TH,26T

13262-1290

$68.19

13262C

GEAR,INPUT 6TH,27T

13262-1291

$70.96

13262D

GEAR,OUTPUT LOW,41T

13262-1292

$84.51

13262E

GEAR,OUTPUT 2ND,37T

13262-1293

$79.92

13262F

GEAR,OUTPUT 3RD,34T

13262-1294

$84.96

13262G

GEAR,OUTPUT 4TH,32T

13262-1295

$82.91

13262H

GEAR,OUTPUT 5TH,30T

13262-1296

$101.09

13262I

GEAR,OUTPUT 6TH,28T

13262-1297

$101.77

92022

WASHER,25.3X33X1

92022-1109

$4.50

92022A

WASHER,20.5X30X1,STEEL

92022-112

$6.75

92028

BUSHING,OUTPUT 3RD&4TH GEAR

92028-1858

$19.68

92033

RING-SNAP,20MM

92033-015

$3.25

92033A

RING-SNAP,24MM

92033-026

$6.70

92045

BEARING-BALL,DAC2557NSSH

92045-0003

$107.07

92045A

BEARING-BALL,6TM-6205NX3

92045-0735

$33.26

92046

BEARING-NEEDLE,KMJ20X26X13.8X1

92046-1185

$17.42

92048

RACE

92048-0047

$39.40

92139

BUSHING,26X28X16.6

92139-0781

$23.44

92139A

BUSHING,25X28X10.4

92139-0793

$14.54

92152

COLLAR

92152-3770

$28.81

92200

WASHER

92200-1389

$1.68

92200A

WASHER

92200-1932

$3.51

92200B

WASHER,20.5X31X1.5

92200-2523

$1.93

92200C

WASHER,25.3X30X1

92200-2524

$1.39

92210

NUT,20MM

92210-0850

$10.93

600

BALL-STEEL,5/32

600A0500

$0.68
