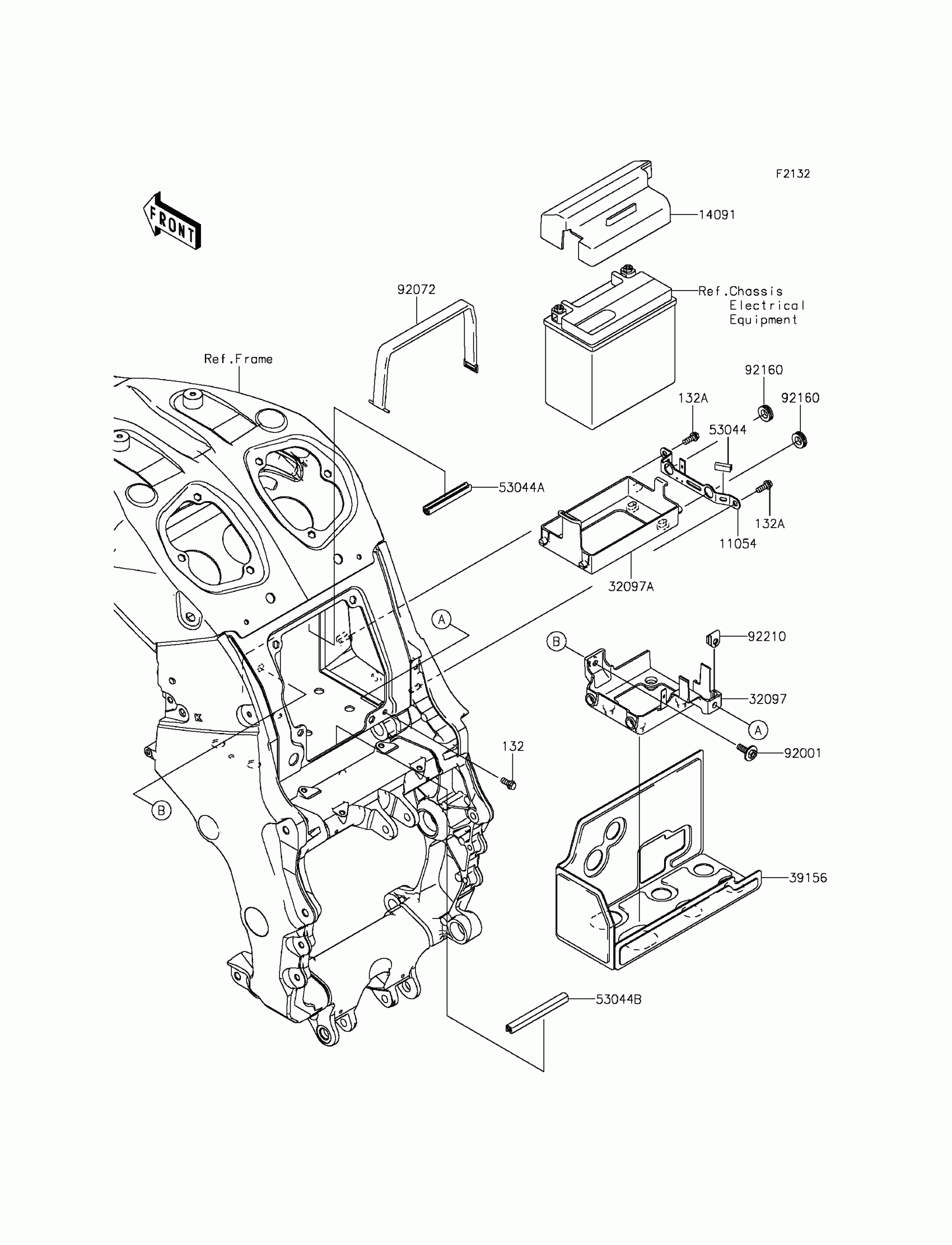

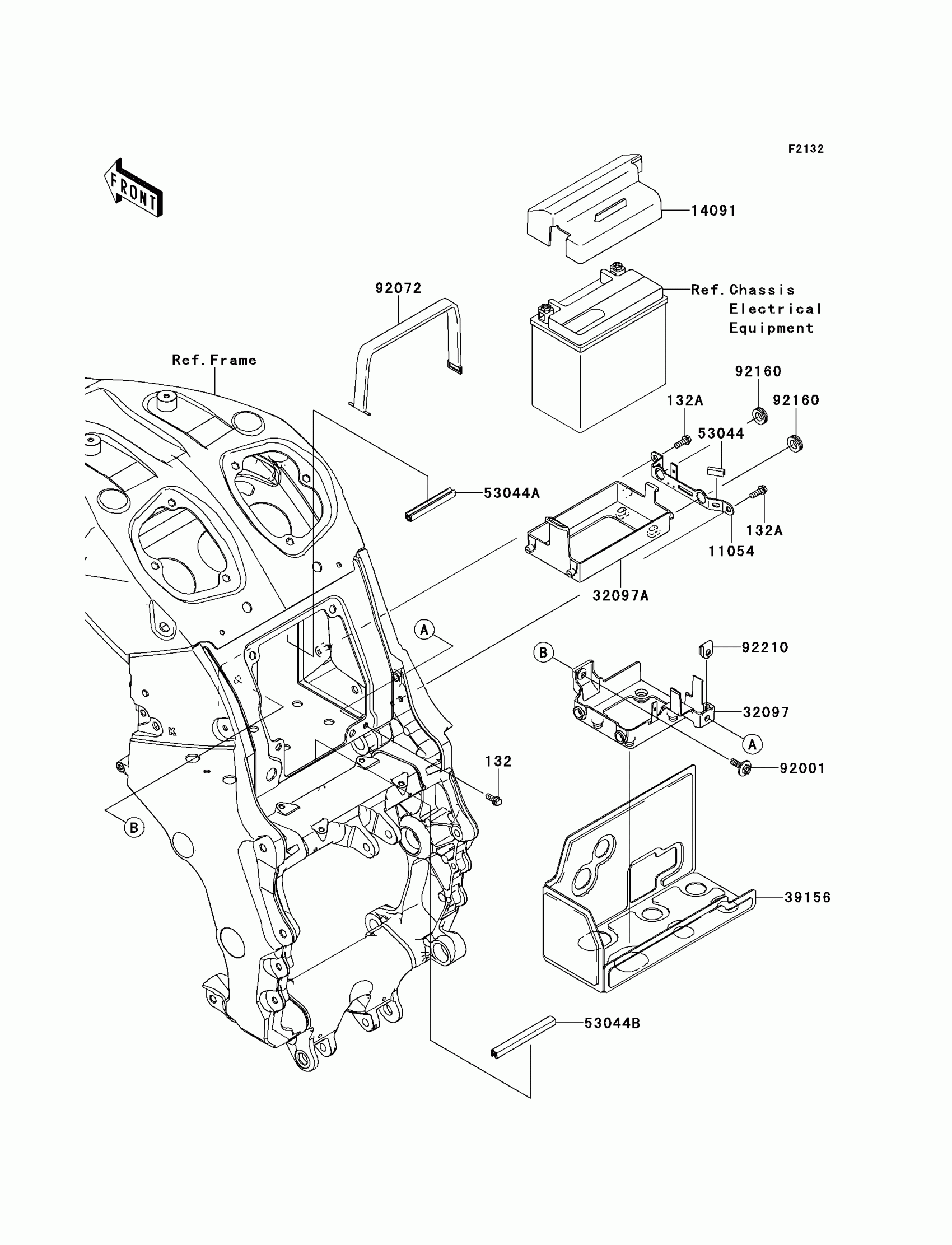

Kawasaki NINJA® ZX™-14R Battery Case Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

11054

BRACKET,BATTERY

11054-0633

$17.39

14091

COVER,BATTERY,UPP

14091-0533

$25.24

32097

CASE-BATTERY

32097-0012

$12.83

32097A

CASE-BATTERY

32097-0013

$12.83

39156

PAD,BATTERY BOX

39156-0602

$57.77

53044

TRIM,L=20

53044-0021

$2.71

53044A

TRIM

53044-0560

$4.46

53044B

TRIM,L=100

53044-1200

$7.36

92001

BOLT,UPSET-WP,6X22

92001-1774

$2.76

92072

BAND,L=290

92072-1377

$20.05

92160

DAMPER

92160-1278

$3.35

92210

NUT,6MM

92210-0277

$3.74
