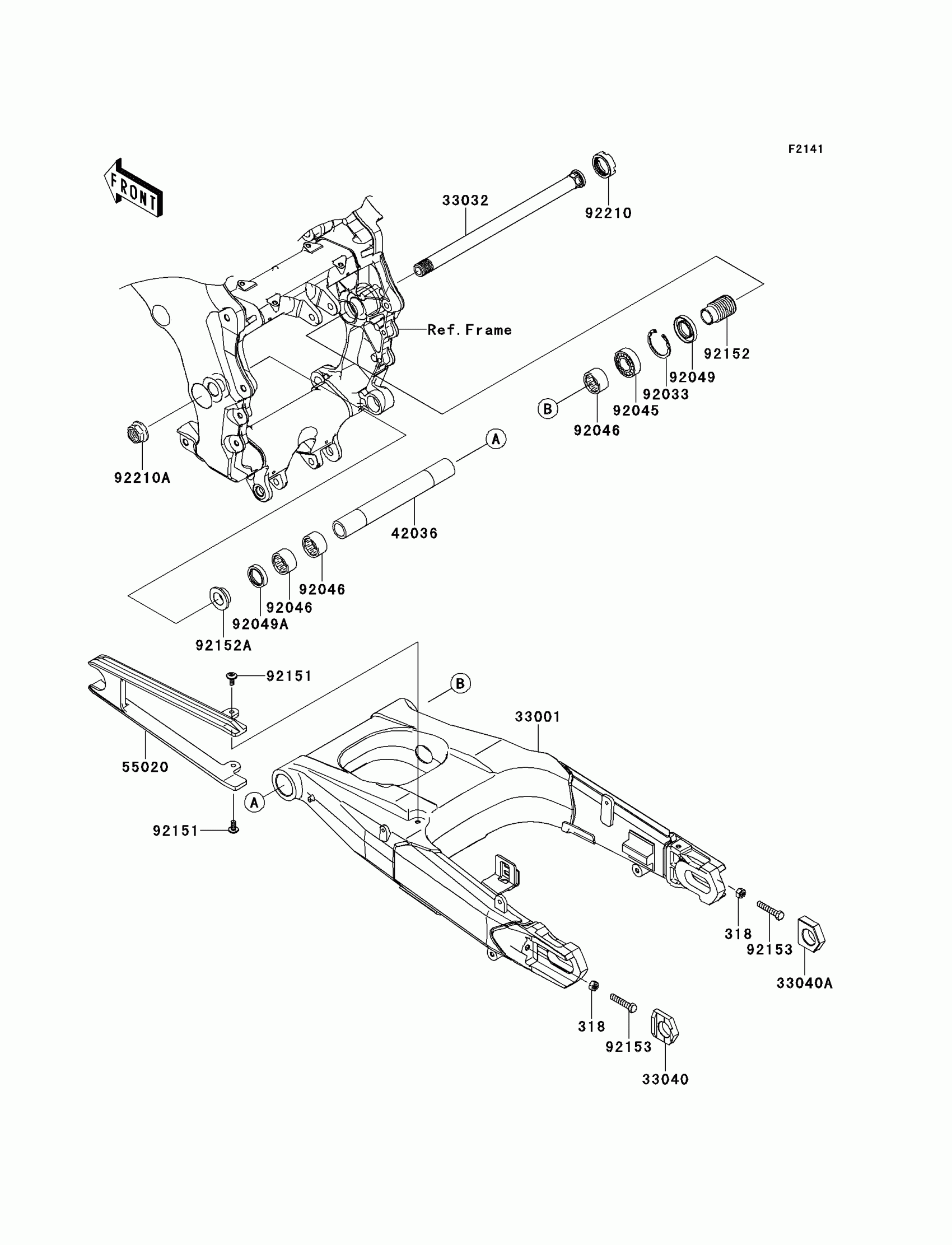

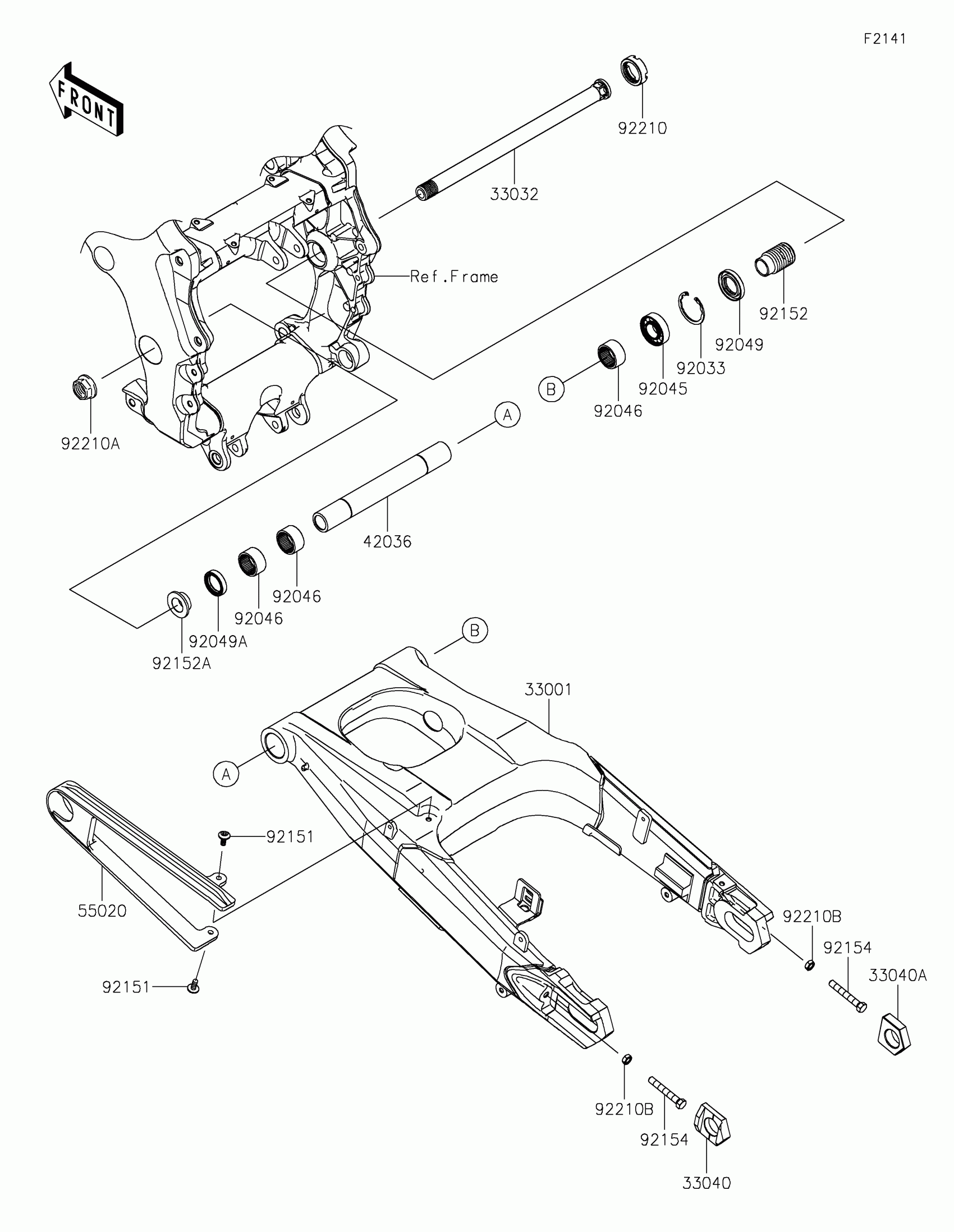

Kawasaki NINJA® ZX™-14R ABS Swingarm Diagram

Description

Price

318

NUT-HEX-SMALL,8MM

318BA0800

$1.04

33001

ARM-COMP-SWING,F.S.BLACK

33001-0590-18R

$1,069.87

33032

SHAFT-SWING ARM

33032-0013

Unavailable

33040

ADJUSTER-CHAIN,LH

33040-0017

$42.37

33040A

ADJUSTER-CHAIN,RH

33040-0018

$31.07

42036

SLEEVE,SWING ARM PIVOT,L=226

42036-1341

$70.15

55020

GUARD,CHAIN

55020-0818

$40.99

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004UL11

92045-0017

$10.93

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$17.41

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$10.44

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$7.08

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR,SWING ARM,RH,L=47

92152-0362

$47.69

92152A

COLLAR,SWING ARM,L=12.5

92152-1234

$6.84

92153

BOLT,8X55

92153-1407

$1.57

92210

NUT,30MM

92210-0134

$25.26

92210A

NUT,FLANGED,20MM

92210-0320

$9.07
