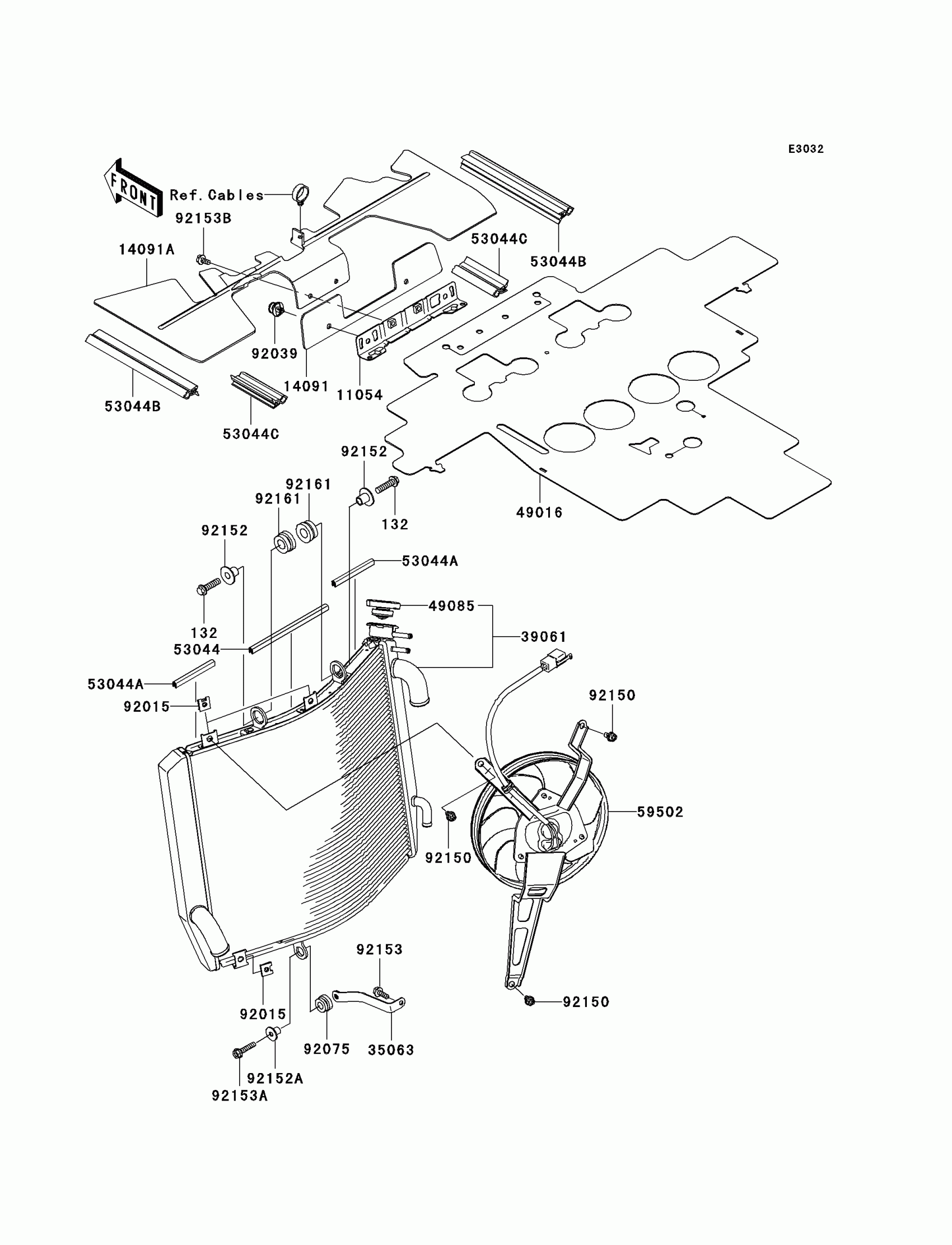

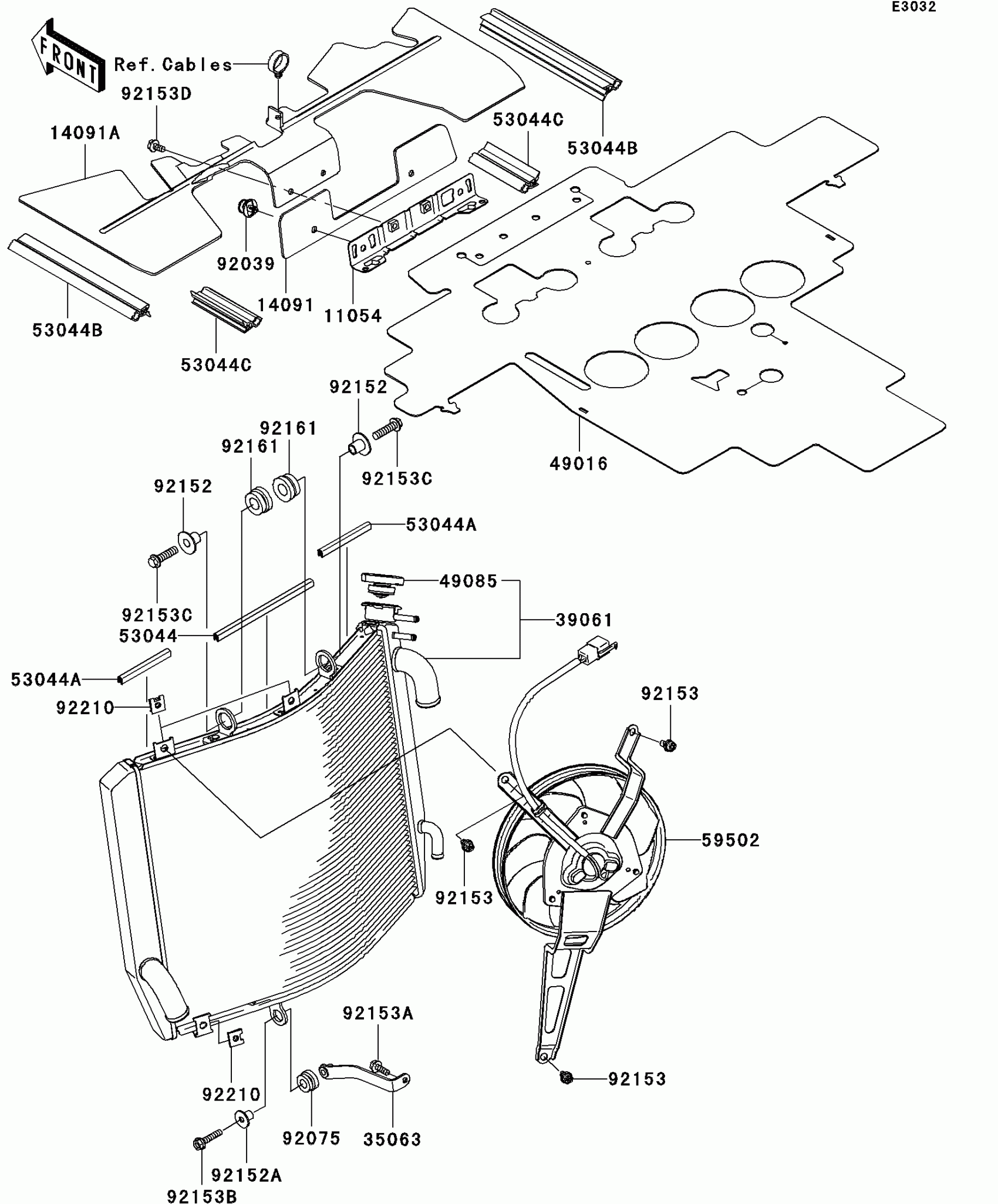

Kawasaki Ninja® ZX™-14 Radiator Diagram

Description

Price

11054

BRACKET

11054-0866

$29.92

14091

COVER,HOT WIND

14091-0621

$34.31

14091A

COVER,HOT WIND

14091-0622

$131.37

35063

STAY

35063-0231

$13.19

39061

RADIATOR-ASSY

39061-0080

Unavailable

49016

COVER-SEAL,HOT WIND

49016-0036

$141.57

49085

CAP-ASSY-PRESSURE,P1.1

49085-1070

$44.67

53044

TRIM

53044-0016

$11.42

53044A

TRIM

53044-0018

$4.14

53044B

TRIM

53044-0020

$8.37

53044C

TRIM

53044-1220

$7.20

59502

FAN-ASSY

59502-0021

$927.99

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92075

DAMPER,RUBBER

92075-1123

$3.81

92152

COLLAR

92152-0439

$2.98

92152A

COLLAR

92152-0440

$4.95

92153

BOLT,6X12

92153-1316

$4.03

92153A

BOLT-FLANGED,6X16

92153-1584

Unavailable

92153B

BOLT,FLANGED,6X30

92153-1590

$1.93

92153C

BOLT,FLANGED-SMALL,8X30

92153-1591

$4.03

92153D

BOLT,FLANGED,6X12

92153-1660

$1.53

92161

DAMPER

92161-0304

$2.09

92210

NUT

92210-0243

$3.64
