2007 Kawasaki Ninja® ZX™-14 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2007 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

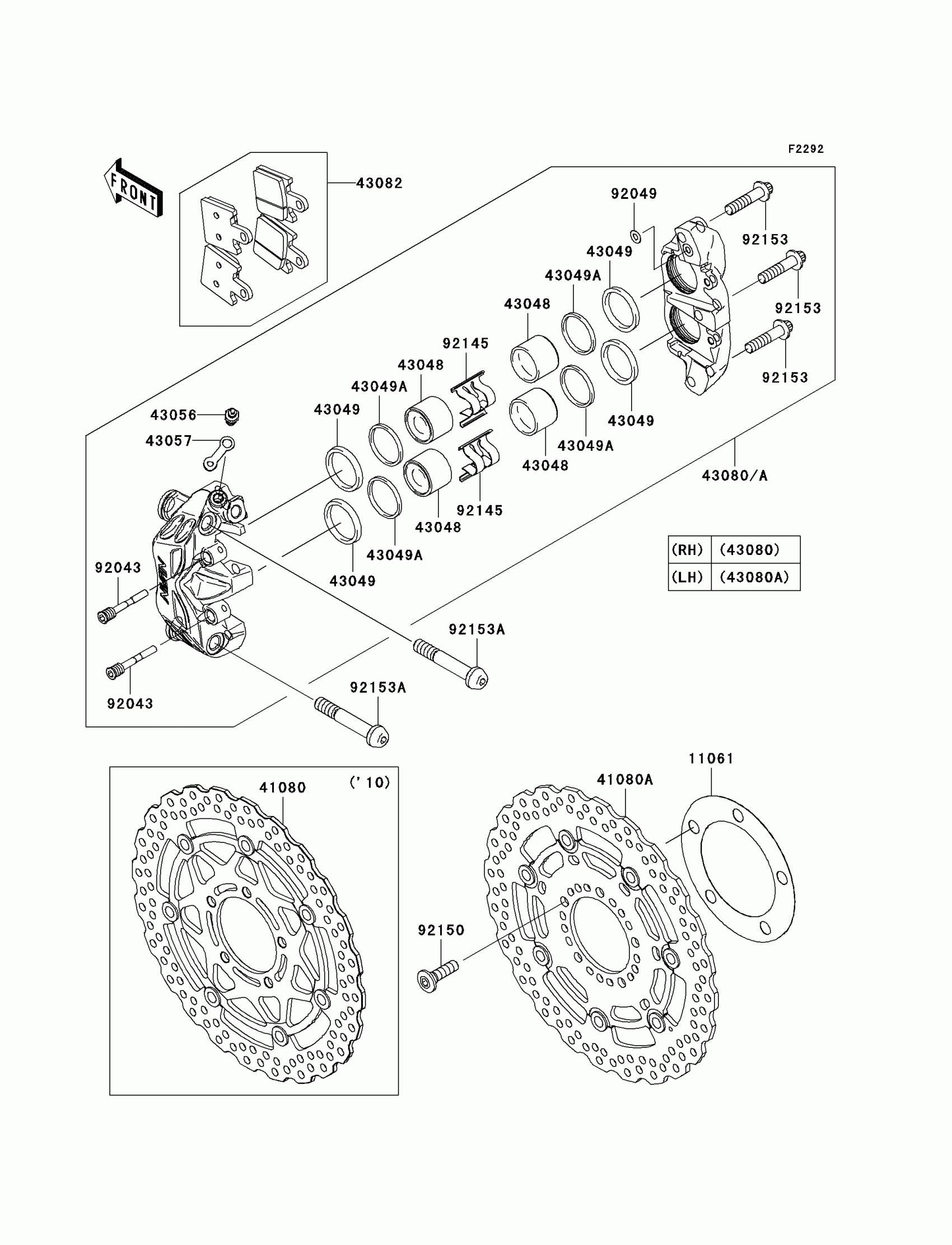

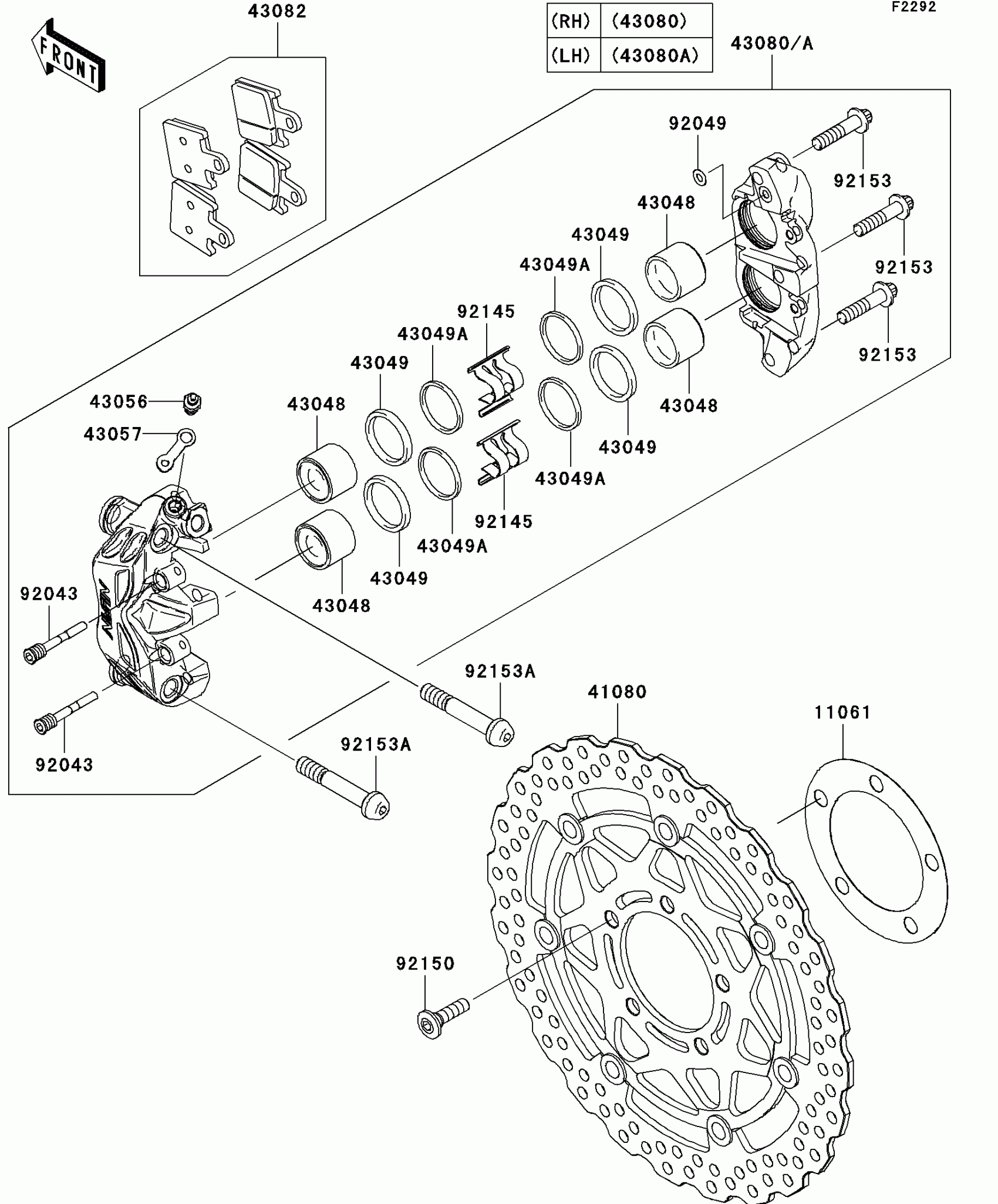

2007 Kawasaki Ninja® ZX™-14 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DISC PLATE

11061-0029

1

$14.31

In stock

41080

1

$490.30

In stock

43048

PISTON-CALIPER

43048-0005

1

$34.76

In stock

43049

PACKING

43049-0006

1

$6.83

In stock

43049A

PACKING

43049-0007

1

$6.83

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

1

$391.82

In stock

43080A

1

$391.82

In stock

43082

PAD-ASSY-BRAKE

43082-0053

1
Out of stock

92043

PIN,PAD

92043-0105

1

$8.17

In stock

92049

SEAL-OIL

92049-1448

1
Out of stock

92145

SPRING,PAD

92145-0436

1

$6.83

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock

92153

BOLT,TORX,8X38

92153-1093

1
Out of stock

92153A

BOLT,SOCKET,10X60

92153-1531

1
Out of stock
