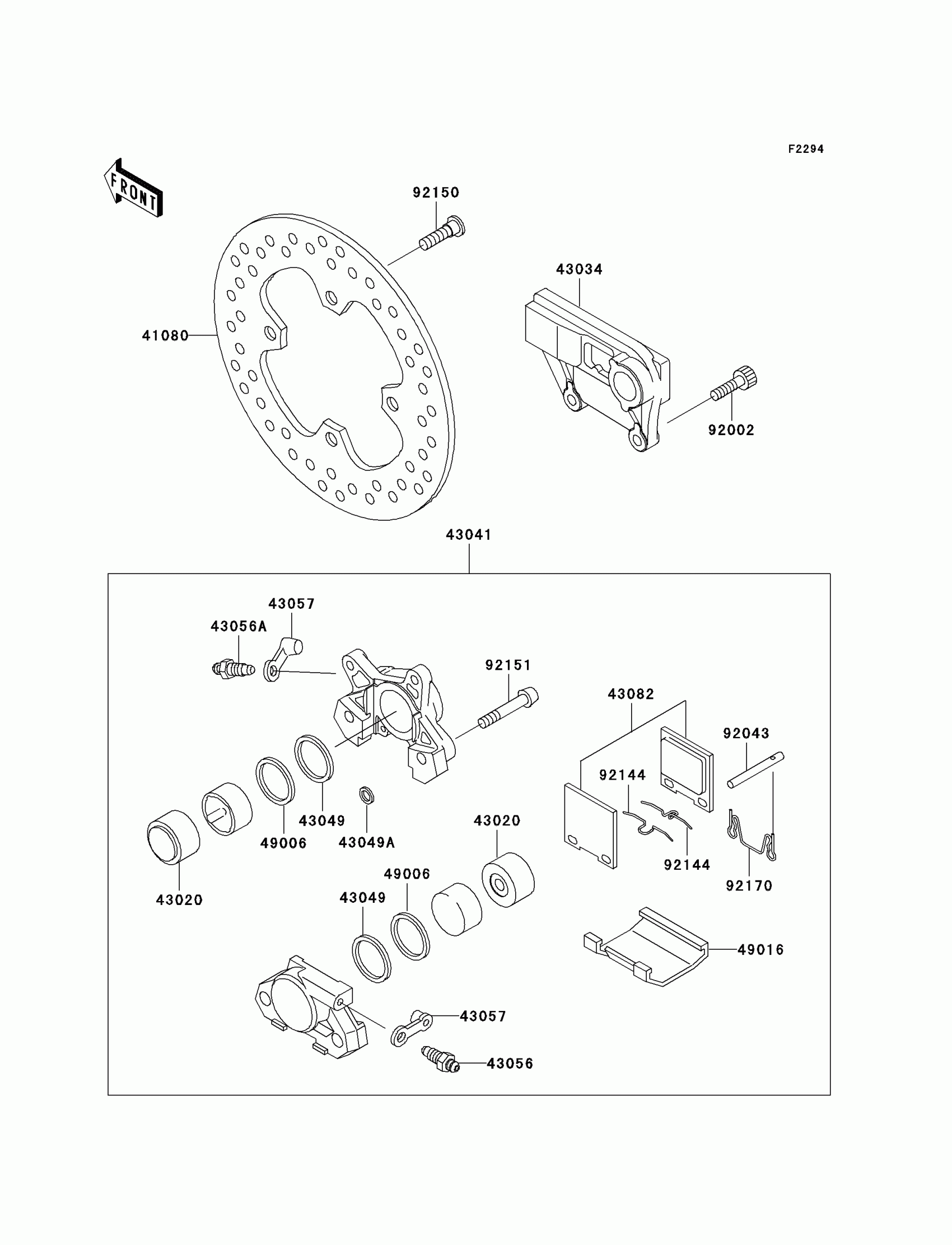

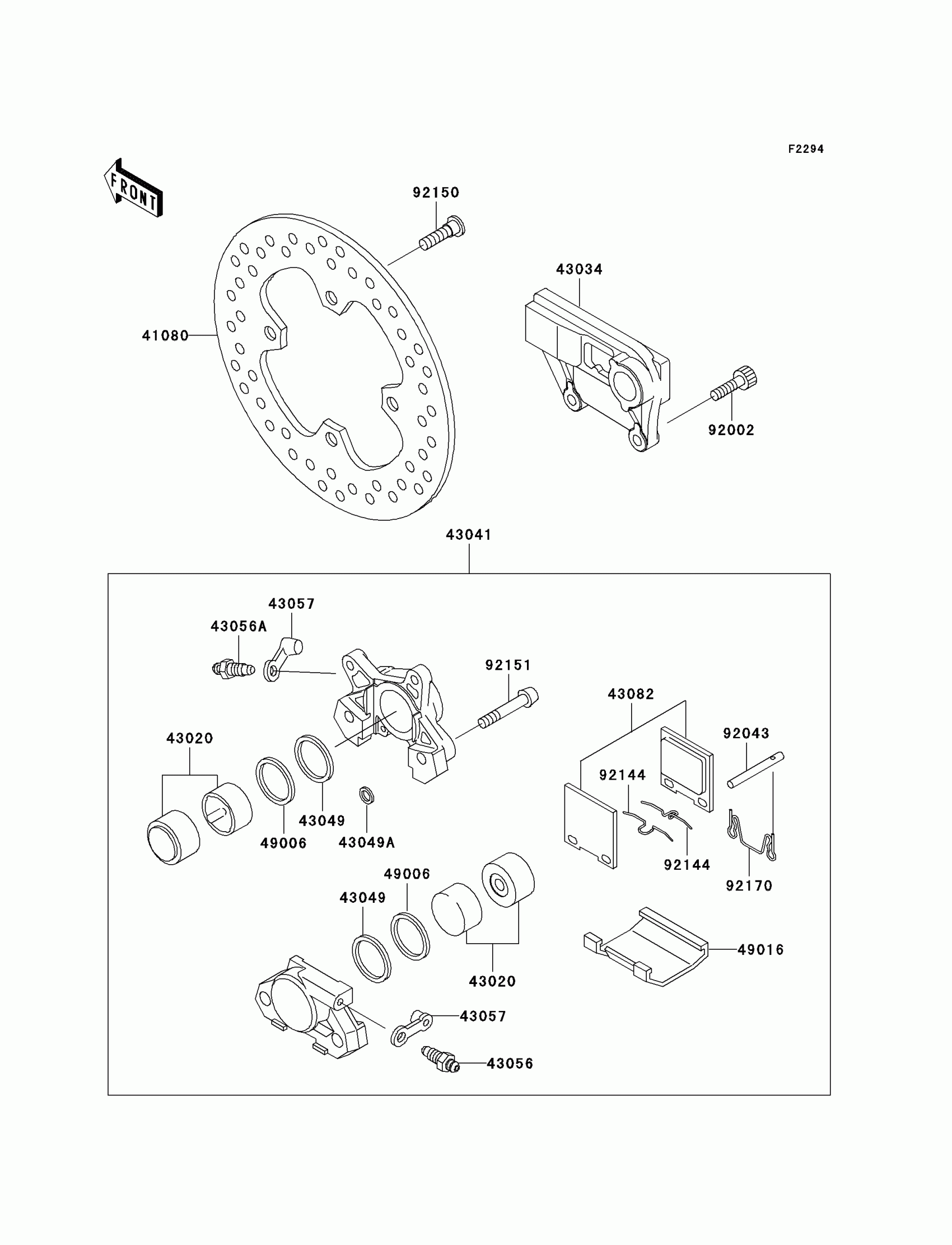

Kawasaki Ninja® ZX™-12R Rear Brake Diagram

Description

Price

41080

DISC,RR,GOLD NO.1

41080-1469-CL

$304.20

43020

PISTON-COMP-BRAKE

43020-1111

$72.19

43034

HOLDER-BRAKE,REAR CALIPER

43034-1158

$135.23

43041

CALIPER-ASSY,RR,A.GOLD

43041-1708-8Q

$421.54

43049

PACKING,PISTON SEAL

43049-001

$8.76

43049A

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$4.88

43056

BREATHER

43056-003

$22.74

43056A

BREATHER-BRAKE

43056-1054

$22.74

43057

CAP-BREATHER

43057-003

$2.02

43082

PAD-ASSY-BRAKE

43082-1257

$74.18

49006

BOOT,PISTON SEAL

49006-1212

$21.56

49016

COVER-SEAL

49016-1145

$12.88

92002

BOLT,SOCKET,8X25

92002-1442

$4.01

92043

92043-1522

$3.92

92144

SPRING,PAD

92144-1401

$4.80

92150

BOLT,SOCKET,8X30

92150-1771

$3.72

92151

BOLT,SOCKET,10X45

92151-1106

$10.63

92170

CLAMP

92170-1635

Unavailable
