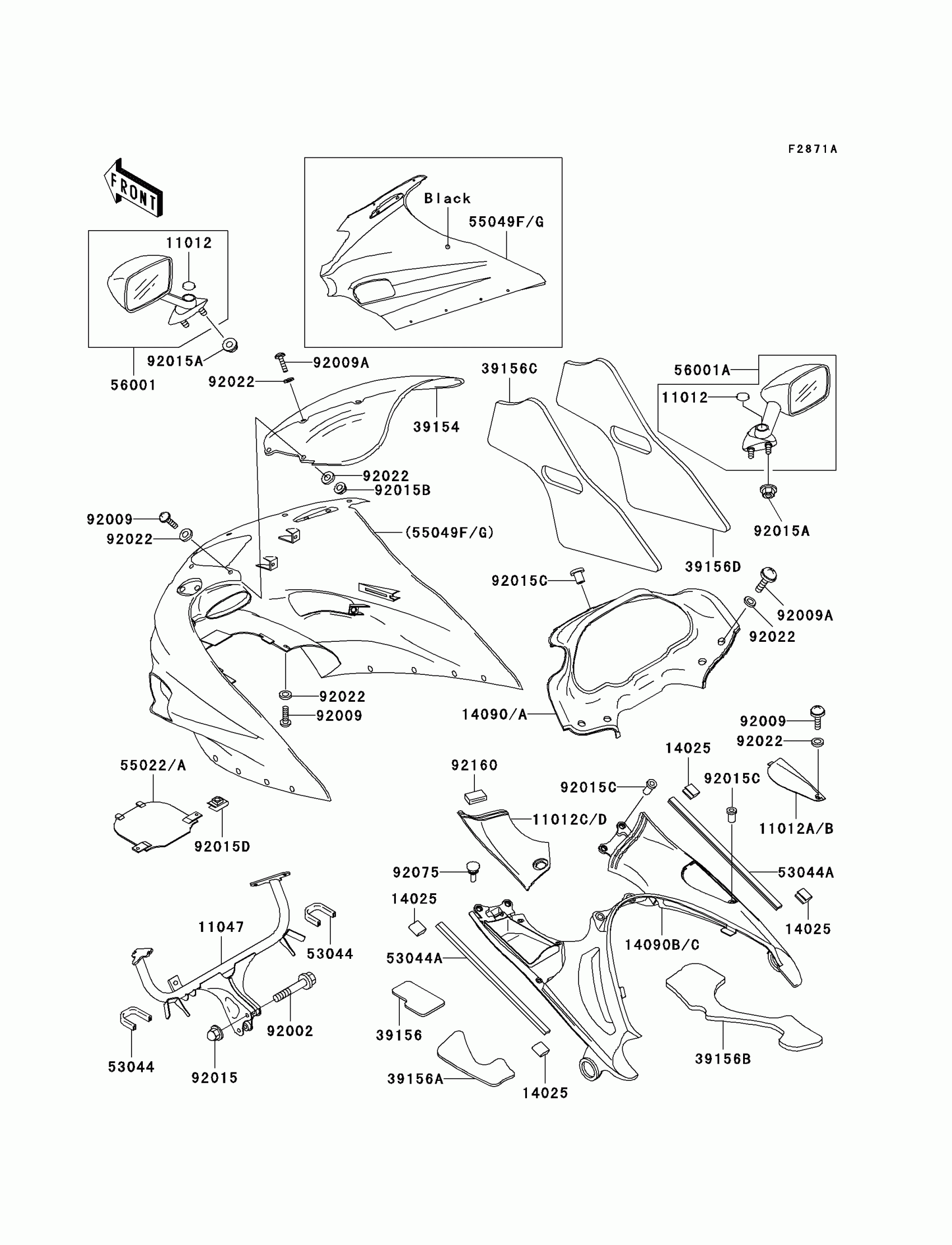

Kawasaki Ninja® ZX™-11 Cowling(ZX1100-D2) Diagram

#

Description
Price

11012

CAP,MIRROR,BLACK

11012-1751-6Z

$3.77

11047

BRACKET,UPP COWLING

11047-1920

Unavailable

14025

COVER,TRIM END

14025-1756

$6.05

39154

WINDSHIELD

39154-1122

$361.26

39156

PAD,INNER COWLING,LH,FR

39156-1329

$11.47

39156A

PAD,INNER COWLING,LH,RR

39156-1330

$13.85

39156B

PAD,INNER COWLING,RH

39156-1331

$13.85

39156C

PAD,UPP COWLING,LH

39156-1332

$17.14

39156D

PAD,UPP COWLING,RH

39156-1333

$20.83

53044

TRIM,L=100

53044-1200

$7.36

53044A

TRIM,L=385

53044-1255

$23.73

56001

MIRROR-ASSY,LH,P.G.BLACK

56001-1390-RL

Unavailable

56001A

MIRROR-ASSY,RH,P.G.BLACK

56001-1391-RL

Unavailable

92002

BOLT,8X35

92002-1198

$4.61

92009

SCREW,5X16,BLACK

92009-1654

$2.51

92009A

SCREW,5X25

92009-1657

$3.49

92015

NUT,CAP,8MM,BLACK

92015-1174

$3.97

92015A

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92015B

NUT,LOCK,FLANGE CAP,5MM

92015-1263

$5.21

92015C

NUT,WELL,5MM

92015-1757

$5.81

92015D

NUT,5MM

92015-1798

$5.45

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92075

DAMPER,6X10X15

92075-1808

$1.24

92160

DAMPER

92160-1190

$3.25

11012A

CAP,INNER COWLING,RH,GRAY

11012-1876-11

Unavailable

11012B

CAP,INNER COWLING,RH,GRAY

11012-1876-12

$30.45

11012C

CAP,INNER COWLING,LH,GRAY

11012-1877-11

Unavailable

11012D

CAP,INNER COWLING,LH,GRAY

11012-1877-12

$34.83

14090

COVER,INNER COWLING,FR,GRAY

14090-1418-11

Unavailable

14090A

COVER,INNER COWLING,FR,GRAY

14090-1418-12

$91.59

14090B

COVER,INNER COWLING,RR,GRAY

14090-1427-11

Unavailable

14090C

COVER,INNER COWLING,RR,GRAY

14090-1427-12

Unavailable

55022

COVER-HEAD LAMP,P.G.BLACK

55022-1074-RL

Unavailable

55022A

COVER-HEAD LAMP,P.G.BLACK

55022-1074-86

$72.19

55049F

COWLING.,UPP,P.G.BLACK

55049-5239-RL

Unavailable

55049G

COWLING.,UPP,P.G.BLACK

55049-5239-86

Unavailable
